Eaton LR125M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LR125M
Quick Summary
LR125M conduit outlet body by Eaton provides a rugged Form 5 interface for industrial enclosures and control panels. This solution minimizes field rewiring and unscheduled downtime by delivering a robust enclosure interface designed for demanding environments. It supports NEC/CEC compliance and UL-related Form 5 certification for ordinary locations, with a clear focus on reliable performance in harsh settings. The LR125M integrates with standard LR-series installations, offering compatibility, long-term durability, and cost-efficient maintenance for facility upgrades and new-build projects.
Product Information
Extended Description

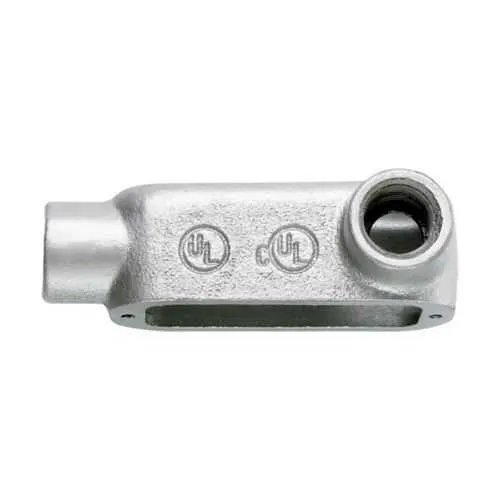

LR125M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR125M
UPC
782274756066
Product Length/Depth
8.12 in
Product Height
2.75 in
Product Width
2.75 in
Product Weight
3.32 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
1-1/4"
Material
Malleable iron
Eaton Crouse-Hinds LR125M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LR125M
Feature: Form 5 LR shape and malleable iron construction. Benefit: Enhanced durability and protection against impact and corrosion in harsh environments, reducing maintenance cycles and total cost of ownership. Application: Control panels and industrial enclosures where rugged reliability is essential. Feature: 1-1/4 inch trade size with 8.12 inch length. Benefit: Easy integration into standard conduit runs and streamlined panel fabrication, improving installation speed and reducing field errors. Application: Wiring layouts in machine rooms and equipment housings. Feature: Ordinary/Non-Hazardous Location classification and NEC/CEC compliance. Benefit: Clear code compliance reduces risk during audits and accelerates approvals for industrial projects. Application: Electrical installations requiring compliant conduit bodies in non-hazardous settings. Feature: Weight 3.32 lb and compact width/height 2.75 in. Benefit: Lightweight handling and straightforward mounting, lowering labor costs and enabling quicker replacements. Application: Retrofit projects and modular system upgrades. Feature: Availability of CAD drawings, catalogs, and UL certification references. Benefit: Faster procurement and accurate engineering validation, minimizing design iterations. Application: Design reviews, BIM workflows, and supplier qualification processes.
Get a Quick Quote for a Eaton LR125M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR125M?
Enquire Now
FAQs
LR125M is designed for Form 5 installations using a 1-1/4 inch trade size. To install, verify the enclosure opening supports Form 5 bodies, align mounting holes with predrilled patterns, secure with appropriate screws, and ensure the conduit body seals properly to maintain enclosure integrity. This approach minimizes field adjustments and ensures reliable performance in industrial settings.
Key specs include a malleable iron body, LR shape, 1-1/4 inch trade size, 8.12 inch length, 2.75 inch height, 2.75 inch width, and a weight of 3.32 pounds. It is classified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, with UL certification references available for Form 5 conduit outlet bodies.
Yes. LR125M is specifically a Form 5 outlet body designed for control panels and industrial enclosures. Its LR shape and durable malleable iron construction provide sturdy access points for conductors, while the Form 5 design supports reliable electrical terminations and robust enclosure integrity in standard industrial locations.
LR125M carries NEC/CEC compliance for Form 5 conduit outlet bodies and is referenced by UL certification pages for Form 5 configurations. It is intended for Ordinary/Non-Hazardous Locations, with additional UL and catalog resources available to validate installation in your region and project scope.
The LR125M provides durable, long-lasting protection for conduit terminations, reducing replacement frequency and maintenance costs. Its adherence to NEC/CEC standards minimizes compliance risk, while its compatible Form 5 design accelerates installation, lowers labor hours, and supports smoother commissioning in control panels and machinery enclosures.
