Eaton LR150M Condulet Form 5 Conduit Outlet - NEC/CEC
Part Number: LR150M
Quick Summary
Eaton LR150M Condulet Form 5 outlet body provides rugged conduit termination for 1-1/2 in electrical installs. Designers often struggle with compatibility, installation time, and long lead times for replacement components. The product complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with Canadian certification documentation available for cross-border projects. Engineered in malleable iron, this Form 5 outlet body delivers durability and straightforward field installation, reducing downtime. For panel builders and electricians, the LR150M supports fast integration with existing Condulet systems, aligning with the Crouse-Hinds family to help meet project deadlines while controlling costs. CAD resources and precise dimensional data further streamline engineering and procurement processes.
Product Information
Extended Description

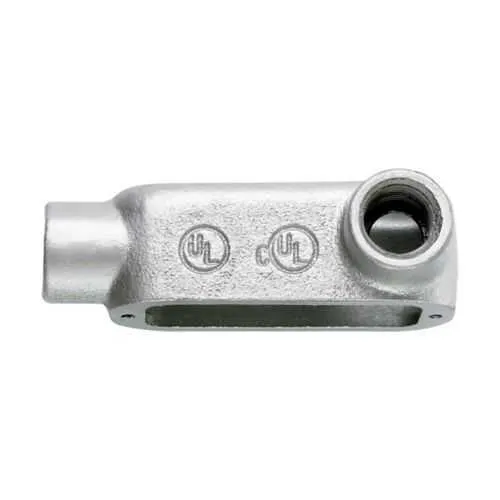

LR150M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR150M
UPC
782274756073
Product Length/Depth
8.12 in
Product Height
3.5 in
Product Width
2.83 in
Product Weight
3.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
1-1/2"
Material
Malleable iron
Eaton Crouse-Hinds LR150M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR150M
Robust malleable iron construction provides high strength and impact resistance, delivering longer service life in demanding industrial environments and reducing maintenance costs. Business impact: lower replacement frequency and less downtime; application: machine controls and heavy-use panels. The LR shape and Form 5 compatibility ensure standardized mounting and seamless integration with existing Condulet accessories, speeding installation and reducing long-term wiring effort. Business impact: faster project completion and reduced labor costs; application: control panels, junction boxes, and enclosure terminations. NEC/CEC compliance and Ordinary/Non-Hazardous Location rating minimize risk during inspections and commissioning, improving uptime and regulatory confidence. Business impact: easier code approval and fewer reworks; application: facilities needing cross-border certification. Precise dimensions (8.12 in length, 3.5 in height, 2.83 in width) and a 3.45 lb weight help with accurate panel layout and enclosure planning. Business impact: predictable fits and optimized space. CAD availability and catalog access accelerate engineering workflows, enabling smoother procurement and BOM management. Application: design reviews, BIM imports, and supplier quotes. Cross-border certifications and documentation support international projects, reducing lead times and procurement friction. Business impact: global sourcing efficiency and faster time to install.
Get a Quick Quote for a Eaton LR150M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR150M?
Enquire Now
FAQs
LR150M is a Form 5 conduit outlet body designed specifically for 1-1/2 inch trade-size conduits and Condulet form assemblies. Its LR shape and metallic malleable iron construction ensure compatibility with standard Form 5 components, enabling straightforward field assembly and reliable conduit termination in control panels and junction boxes.
Key specs include 8.12 in length, 3.5 in height, 2.83 in width, and a weight of 3.45 lb, with malleable iron material and 1-1/2 in trade size. Certifications include NEC/CEC standards and Ordinary/Non-Hazardous Location classification, with Canadian certification documentation available.
CAD drawings and catalogs are available through Eaton’s resources, including 3D drawing packages and the Form 5 catalog page. Access to these assets accelerates design reviews, BIM integration, and accurate BOM creation during procurement.
Yes. LR150M is supported by Canadian certification documentation and NEC/CEC compliance, making it suitable for cross-border installations in Ordinary/Non-Hazardous Locations while aligning with local electrical codes and procurement requirements.
The rugged malleable iron construction reduces wear and replacement costs, while Form 5 compatibility speeds installation and reduces labor. Availability of CAD resources, catalogs, and cross-border certifications further minimizes project risk and accelerates time-to-install, delivering measurable ROI through uptime and efficiency gains.
