Eaton LR200M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LR200M
Quick Summary
LR200M Condulet Form 5 conduit outlet body provides rugged, durable enclosure for 2-inch conduit runs in industrial electrical installations. Field installations often suffer from misfit fittings and lengthy wiring, delaying maintenance and increased downtime. This Form 5 body aligns with NEC/CEC standards, UL-certified for Form 5 conduit outlets, and rated for Ordinary/Non-Hazardous Locations. Its malleable iron construction and 2-inch trade size support reliable, code-compliant installations across manufacturing, energy, and process facilities. Designed for quick field mounting, it reduces installation time and helps maintenance teams keep critical lines energized. With readily available catalogs, CAD models, and official spec sheets, engineers can verify fitment early in the design cycle.
Product Information
Extended Description

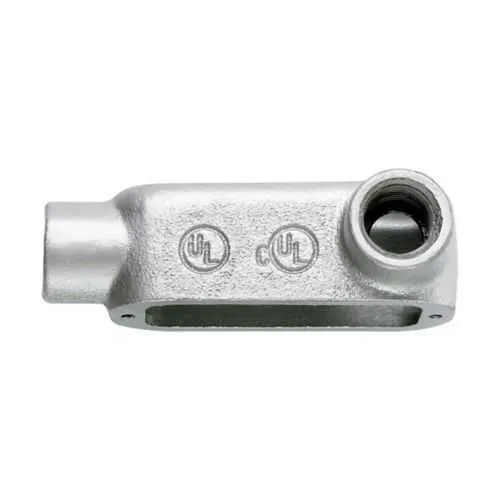

LR200M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR200M
UPC
782274756080
Product Length/Depth
10.5 in
Product Height
4.12 in
Product Width
3.31 in
Product Weight
6.26 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
2"
Material
Malleable iron
Eaton Crouse-Hinds LR200M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LR200M
Feature: Malleable iron LR form 5 conduit outlet body delivers rugged protective enclosure for 2-inch conduit runs. Impact: This rugged construction resists impact, vibration, and environmental wear, extending service life and reducing replacement costs in busy facilities. Application: Ideal for steel mills, warehouses, and outdoor enclosures where harsh conditions and frequent maintenance are common. Feature: NEC/CEC compliance and UL certifications for Form 5 conduit bodies ensure code conformity. Impact: Simplifies inspections, accelerates approvals, and minimizes risk of non-compliant installations. Application: Used in ordinary/non-hazardous locations within electrical rooms, control panels, and feeder circuits, with readily available Form 5 covers and gaskets to speed replacement. Feature: Accurate dimensions and weight—10.5 in length, 4.12 in height, 3.31 in width; 6.26 lb; 2-inch trade size. Impact: Clear space planning and reliable fit with standard fittings, reducing field rework. Application: Supports consistent procurement and easy BOM integration for system upgrades; engineers appreciate its compact mounting footprint and compatibility with common panel layouts. Feature: UPC 782274756080 and LR200M catalog identity enable traceability and efficient procurement. Impact: Improves inventory control, sourcing speed, and aftermarket service with ready access to CAD drawings and spec sheets. Application: Used in design validation and maintenance spare parts libraries across industrial facilities. Feature: Availability of 3D CAD drawings, catalogs, UL certifications, and specification sheets. Impact: Streamlines engineering workflows, accelerates design reviews, and aligns with supplier-managed inventory programs. Application: Ideal for early-stage design, vendor comparisons, and retrofit planning; 3D models support parametric design and BIM workflows. Additionally, the LR200M supports long service life in non-hazardous settings, reducing total cost of ownership and replacement cycles. This translates to lower downtime and better return on asset investments.
Get a Quick Quote for a Eaton LR200M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR200M?
Enquire Now
FAQs
Install the LR200M by aligning the conduit entry with the LR form 5 body, securing with appropriate mounting hardware, and using the standard gaskets and covers specified by Eaton. Ensure NEC/CEC compliance and verify that the location is Ordinary/Non-Hazardous. Confirm UL listing requirements are met during inspections to avoid rework.
LR200M measures 10.5 inches in length, 4.12 inches in height, and 3.31 inches in width, with a weight of 6.26 pounds. It supports a 2-inch trade size conduit and is made from malleable iron, providing robust mechanical protection in demanding environments.
No. The LR200M Condulet Form 5 conduit outlet body is rated for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. For hazardous locations, select Form 5 bodies specifically certified for those conditions and ensure compliance with relevant codes and UL listings.
LR200M complies with NEC/CEC standards and holds UL certifications for Form 5 conduit outlet bodies, ensuring code conformity and reliability. It uses a 2-inch trade size and is listed for ordinary locations, with UPC 782274756080 providing traceability in procurement.
LR200M provides code-compliant, durable protection for conduit runs in non-hazardous areas, reducing downtime and maintenance costs. Its readily available catalogs, CAD data, and UL listings streamline engineering and procurement, accelerating retrofit schedules and delivering faster ROI through fewer field errors and easier spares management.
