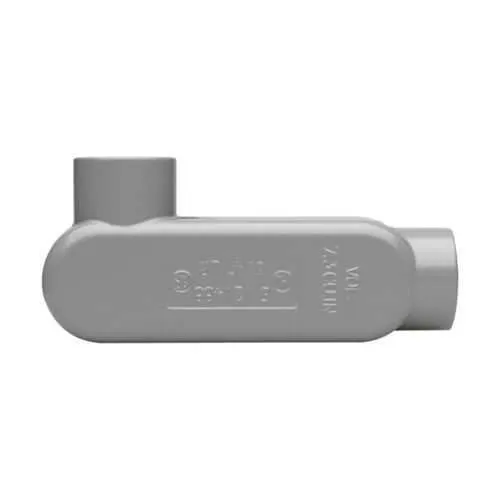

Eaton LR35 Condulet Series 5 Conduit Outlet Body - NEC/CEC
Part Number: LR35
Quick Summary
LR35 conduit outlet body provides rugged, lightweight protection for rigid/IMC conduit in industrial installations. Engineers often wrestle with weight, corrosion resistance, and fitment in tight electrical housings, making OEM and panel builds time-consuming. This Condulet Series 5 part is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards, with UL Canada certification referenced in its listing. The copper-free aluminum construction delivers durable performance without adding excessive weight, while the 1" trade size and LR shape streamline routing in control panels and enclosures. For procurement teams, this part reduces inventory variety and simplifies installation, helping to meet project schedules and code requirements with confidence.
Product Information
Extended Description
LR35 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LR shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LR35
UPC
784564140135
Product Length/Depth
5.94 in
Product Height
2.51 in
Product Width
1.9 in
Product Weight
0.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Conduit type
Rigid/IMC
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR35
Copper-free aluminum reduces weight while offering corrosion resistance. This lowers handling risk during installation and reduces long-term maintenance costs in demanding environments. The LR35 fits standard 1" rigid/IMC conduit, enabling straightforward field assembly. The LR shape and 1" trade size standardize mounting and routing across panels and enclosures. This uniformity reduces the need for adapters and speeds up panel builds, which is valuable for OEMs and contract manufacturers. Rigid/IMC conduit compatibility provides robust protection for wiring against debris and impact in factory floors and harsher environments. The durable housing keeps investments protected while keeping overall system weight manageable. NEC/CEC compliance and UL Canada certification referenced in the Condulet Series 5 listing simplify approvals. This minimizes external verification steps during audits and reduces procurement risk. Comprehensive specifications and datasheets are available, including the Eaton LR35 specification sheet and catalog pages. Using LR35 reduces BOM complexity and accelerates procurement with clear part numbers and consistent performance. With a length of 5.94 in, height 2.51 in, width 1.9 in, and weight 0.64 lb, the LR35 delivers a compact footprint suitable for compact control panels and crowded enclosures, while maintaining physical protection for wiring.
Get a Quick Quote for a Eaton LR35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR35?
Enquire Now
FAQs
LR35 is designed for straightforward field installation with standard 1" rigid/IMC conduit. Ensure proper alignment with the conduit run, confirm compatibility with the panel or enclosure, and use appropriate fasteners to secure the body to the enclosure mounting surface. The copper-free aluminum construction reduces weight and simplifies handling during mounting, while maintaining robust protection for wiring.
LR35 is a Series 5 conduit outlet body with an LR shape for a 1" trade size. It is made from copper-free aluminum, weighs about 0.64 lb, and measures approximately 5.94 in in length, 2.51 in in height, and 1.9 in in width. UPC is 784564140135, and it meets NEC/CEC standards with UL Canada certification noted in its listings.
Yes. LR35 is listed under NEC/CEC standards and has UL Canada certification references in the Condulet Series 5 documentation. This helps with regulatory approvals in ordinary/non-hazardous locations and streamlines compliance during audits and inspections for plants and OEM applications.
LR35 is ideal for control panels, machine enclosures, and OEM equipment that route rigid/IMC conduit. Its 1" trade size and LR shape support standardized installations, while the copper-free aluminum housing provides corrosion resistance and weight savings—beneficial for high-miz throughput environments and frequent maintenance cycles.
The copper-free aluminum construction reduces corrosion risk and weight, easing handling and installation. Standardized 1" conduit compatibility minimizes accessory purchases and reduces BOM complexity, leading to faster builds and lower labor costs. Certifications (NEC/CEC and UL Canada) also reduce rework and audit overhead, delivering a quicker return on investment in projects requiring reliable, code-compliant conduit protection.
