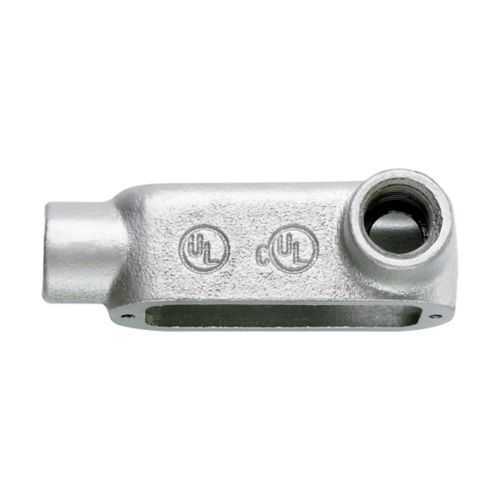

Eaton LR350M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LR350M
Quick Summary
The Eaton LR350M conduit outlet body provides a Form 5 enclosure for durable, field-ready conduit terminations. Engineers and installers face heavy, misaligned fittings and challenging mounting; this unit's LR shape, malleable iron construction, and 3-1/2 in trade size simplify alignment and onboarding. It supports NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, helping keep projects within code while avoiding costly rework. With dimensions of 6.25 in length, 6.1 in height, 5.62 in width, and a weight around 23 lb, the LR350M delivers predictable fit in dense enclosures. This rugged Condulet Form 5 geometry accelerates procurement, reduces spare parts needs, and strengthens maintenance planning for control panels and distribution cabinets.
Product Information
Extended Description
LR350M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR350M
UPC
782274756110
Product Length/Depth
6.25 in
Product Height
6.1 in
Product Width
5.62 in
Product Weight
23.21 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
3-1/2"
Material
Malleable iron
Eaton Crouse-Hinds LR350M 3D drawing
Crouse-Hinds series Myers Hubs catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR350M
Feature: Form 5 conduit outlet body in malleable iron ensures rugged mechanical protection against impact and seam fatigue. Business Impact: extended service life reduces replacement costs and downtime. Application: ideal for control panels and switchgear enclosures in harsh industrial environments. Feature: LR shape with a 3-1/2 inch trade size provides precise routing in a compact footprint. Business Impact: easier field assembly, fewer misfits, and faster commissioning. Application: suitable for dense panel bays and space-constrained installations. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating support regulatory alignment. Business Impact: lowers risk of code violations and project delays, enabling smoother approvals. Application: standard North American industrial facilities. Feature: Dimensional stability with 6.25 in length, 6.1 in height, 5.62 in width and 23.21 lb weight offers predictable mounting. Business Impact: dependable fit across OEMs, reduced need for field adjustments, and improved enclosure sealing. Application: reliable in existing Eaton/Crouse-Hinds conduit ecosystems. Feature: Compatibility with the Eaton Crouse-Hinds Condulet family facilitates spare parts and quick replacements. Business Impact: shorter downtime during maintenance and easier lifecycle management. Application: maintenance teams sourcing Form 5 outlets. Feature: Availability of CAD drawings and datasheets accelerates engineering workflows. Business Impact: faster design iterations, streamlined procurement, and clearer specifications. Application: CAD-enabled design teams ordering Form 5 outlets for panel projects.
Get a Quick Quote for a Eaton LR350M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR350M?
Enquire Now
FAQs
LR350M is designed specifically for Condulet Form 5 applications and uses the LR shape with a 3-1/2 inch trade size, ensuring straightforward mounting within standard Form 5 assemblies. The malleable iron construction provides solid mounting support, while the footprint and mounting feet align with common panel and enclosure layouts, reducing the need for custom adapters and expediting installation.
LR350M is a Form 5 conduit outlet body made from malleable iron. It supports a 3-1/2 inch trade size with external dimensions of approximately 6.25 inches in length, 6.1 inches in height, and 5.62 inches in width, and a weight of about 23.21 pounds. These specs enable predictable fit and durable performance in standard control panels.
Yes. LR350M is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it suitable for typical industrial facilities where non-hazardous environments are the norm, helping to avoid over-specification while ensuring code compliance for reliable electrical terminations.
LR350M carries NEC/CEC standard compliance and Ordinary/Non-Hazardous Locations classification, which aligns with North American electrical codes. These certifications support safe installation, reduce rework, and help meet documentation requirements during audits and project handoffs.
The rugged malleable iron Form 5 body provides long service life with fewer replacements, and its compatibility with the Condulet family simplifies spares management. This translates to lower downtime, faster maintenance cycles, and a favorable ROI for control panels and distribution cabinets used in regular industrial operations.
