Eaton LR400M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LR400M
Quick Summary
LR400M is a Condulet Form 5 conduit outlet body used to terminate and shield 4 in conduits in industrial panels. Professionals often face space constraints and rework costs when wiring dense control cabinets, making compact, reliable terminations essential. Designed for NEC/CEC compliance and ordinary/non-hazardous locations, the LR400M aligns with North American codes and Canadian certifications documented in Eaton’s datasheets. This combination delivers predictable procurement, faster installation, and reduced field adjustments, while leveraging the LR form factor and compatibility with Condulet accessories to streamline panel design and maintenance.
Product Information
Extended Description

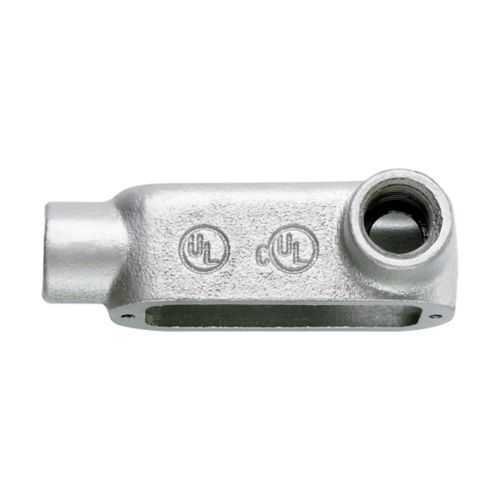

LR400M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR400M
UPC
782274756127
Product Length/Depth
16.25 in
Product Height
6.95 in
Product Width
5.62 in
Product Weight
25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
4"
Material
Malleable iron
Eaton Crouse-Hinds LR400M 3D drawing
Crouse-Hinds series Myers Hubs catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR400M
Feature: Malleable iron construction offers rugged mechanical protection. Benefit: Enhanced durability reduces replacement costs in harsh environments and supports long service life in manufacturing floors and outdoor enclosures. Application: Ideal for heavy-duty applications where conduit outlet bodies must resist impact and corrosion while maintaining electrical integrity. Feature: LR shape with 4 inch trade size. Benefit: Ensures a tight fit with standard Condulet components, simplifying compatibility across panels and junctions. Application: Control panels and equipment cabinets requiring standardized Form 5 terminations with predictable install times. Feature: Overall dimensions — length 16.25 in, height 6.95 in, width 5.62 in. Benefit: Provides ample internal space for wiring and connector access, improving airflow and reducing heat buildup. Application: Mid- to large-size enclosures where wiring density is a concern and organized routing is critical. Feature: Weight 25 lb. Benefit: Manageable mass for installation crews, reducing handling risk and lifting time on site. Application: On-site mounting and relocation in dynamic industrial layouts where support structures are reconfigured. Feature: NEC/CEC standards and Ordinary/Non-Hazardous Location rating. Benefit: Regulatory alignment minimizes compliance risk and accelerates approval in North American projects. Application: Suitable for general industrial deployments, with documented Canadian certification references available. Feature: Access to additional resources — CAD drawings, catalogs, and specifications. Benefit: Faster design integration and procurement, enabling quicker project timelines. Application: Engineering design workflows that rely on precise modeling and up-to-date product data for BOMs and rack layouts.
Get a Quick Quote for a Eaton LR400M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR400M?
Enquire Now
FAQs
When installing LR400M, ensure it matches the Form 5 Condulet system and the 4 in trade size. Verify mounting clearance and align with standard conduit fittings to maintain proper enclosure integrity. Use the appropriate fasteners and verify that the installation remains within ordinary/non-hazardous location ratings per NEC/CEC. This reduces rework and ensures consistent electrical performance across panels.
Key specs include malleable iron construction for durability, LR shape with a 4 in trade size, and the overall footprint: 16.25 in length, 6.95 in height, 5.62 in width. The unit weighs 25 lb, suitable for stable mounting. Its NEC/CEC compliance and ordinary location rating support compliant installations in general industrial environments, helping to standardize procurement and design.
Yes. LR400M is designed for NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, making it appropriate for typical industrial panels and enclosures. This alignment simplifies regulatory approvals, reduces project risk, and ensures consistent performance across North American installations while enabling Canadian certification references via Eaton’s datasheets.
The malleable iron construction provides long-term durability, lowering replacement and maintenance costs in demanding environments. Standardized Form 5 compatibility reduces stocking and simplifies spare part management. Integration with existing Condulet components accelerates installation, lowering labor hours and allowing faster project completion, which translates to tangible returns through reduced downtime.
LR400M references NEC/CEC compliance and Ordinary/Non-Hazardous Location ratings, with Canadian certification documentation accessible through Eaton’s downloads. Supplemental UL certification pages and Canadian listings are provided in the product files, ensuring regulatory traceability for cross-border projects and helping streamline approval during audits and inspections.
