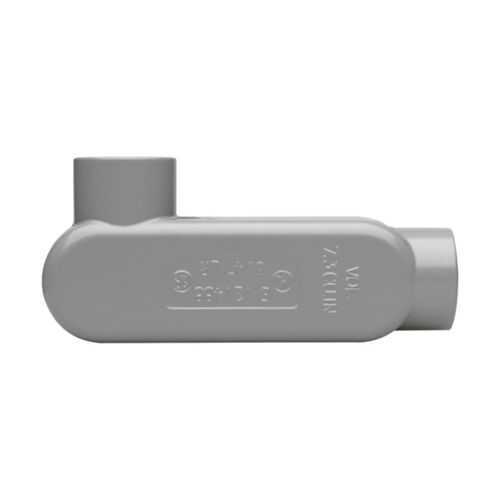

Eaton LR45 Condulet Series 5 conduit outlet body - LR
Part Number: LR45
Quick Summary
Eaton LR45 Condulet Series 5 conduit outlet body is a rugged termination for rigid/IMC conduits in industrial electrical installations. Installers often struggle with corrosion resistance, weight, and adapting conduits in tight spaces. This model meets NEC/CEC standards and targets ordinary/non-hazardous locations, with Canadian certifications supported by UL data. Key advantages include copper-free aluminum construction and Series 5 compatibility, delivering cost efficiency, easier field installation, and long-term compliance for reliable electrical infrastructure.
Product Information
Extended Description
LR45 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LR shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LR45
UPC
784564140142
Product Length/Depth
7.87 in
Product Height
3.5 in
Product Width
2.85 in
Product Weight
1.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Conduit type
Rigid/IMC
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR45
Feature LR shape and Condulet Series 5 compatibility streamline conduit routing and reduce the need for adapters, delivering faster installs and fewer parts. Business Impact Improved installation speed and reduced inventory complexity translate to lower labor costs and tighter project schedules. Application Used in machine wiring and control panels in non-hazardous environments for consistent, code-compliant terminations. Feature Copper-free aluminum offers corrosion resistance and lighter weight, cutting handling effort and improving overall site safety. Business Impact Lower maintenance risk and extended service life in harsh surroundings, leading to lower lifecycle costs. Application Suitable for rigid/IMC conduit systems with a 1-1/4 inch trade size, enabling standardized connections across multiple vendors and simplifying spares. Feature NEC/CEC compliance and Ordinary/Non-Hazardous area classification ensure regulatory alignment and safe operation. Business Impact Reduces risk of non-compliance penalties and accelerates approvals in project documentation. Application Ideal for industrial automation, packaging lines, and conveyor systems where robust, code-compliant conduit bodies are essential.
Get a Quick Quote for a Eaton LR45
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR45?
Enquire Now
FAQs
LR45 is a copper-free aluminum conduit outlet body designed for rigid/IMC conduits in a 1-1/4 in trade size. It provides a durable, code-compliant termination for non-hazardous industrial installations and is compatible with Eaton's Condulet Series 5 system for standardized wiring.
No. The LR45 is specified for Ordinary/Non-Hazardous Locations and NE C/CEC compliance. For hazardous environments, consider alternatives with appropriate approvals and certifications for explosion-proof or hazardous-area use.
Yes. LR45 supports NEC/CEC standards and is intended for ordinary/non-hazardous location installations, providing a reliable, code-compliant conduit outlet body for general industrial wiring.
LR45 uses copper-free aluminum and a Series 5 LR shape, offering reduced weight while maintaining strength and corrosion resistance. Its 1-1/4 in trade size aligns with standard rigid/IMC conduits, enabling quicker assembly and fewer adapters, which lowers labor time and installation risk.
LR45 features a copper-free aluminum construction with LR shape for Series 5, designed for rigid/IMC conduit at 1-1/4 in. It measures approximately 7.87 in length, 3.5 in height, 2.85 in width, and weighs about 1.4 lb, suitable for non-hazardous industrial applications.
