Eaton LR50M Condulet Form 5 outlet body - NEC/CEC
Part Number: LR50M
Quick Summary
LR50M conduit outlet body provides a robust Form 5 enclosure solution for electrical distribution in harsh industrial environments. Engineers often struggle with corrosion resistance and reliable enclosure sealing in wet or dusty locations, which can compromise safety and uptime. This Eaton Crouse-Hinds form 5 unit is designed for ordinary locations and meets NEC/CEC standards, with Canadian UL certification support, giving you confidence in cross-site compliance. The LR50M's malleable iron construction and 1/2" trade size streamline installation, reduce part variety, and simplify inventory for high-volume panels. By aligning with standard Form 5 cataloging, it delivers consistent fit, faster commissioning, and long-term reliability for panel-to-conduit transitions.
Product Information
Extended Description

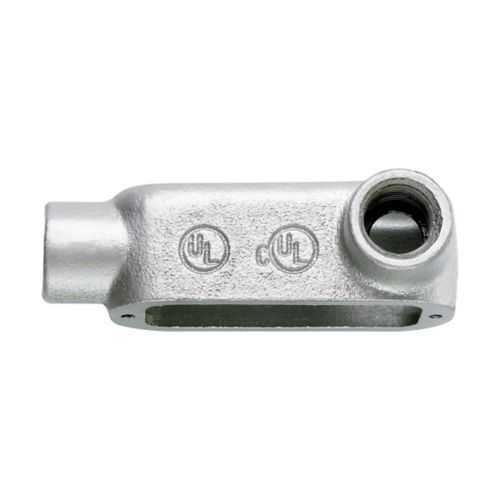

LR50M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR50M
UPC
782274756035
Product Length/Depth
4.68 in
Product Height
2.05 in
Product Width
1.37 in
Product Weight
0.71 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
1/2"
Material
Malleable iron
Eaton Crouse-Hinds LR50M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR50M
Feature LR50M is a malleable iron Condulet Form 5 conduit outlet body in the LR shape with a 1/2" trade size. Business Impact The durable malleable iron construction delivers enhanced impact and corrosion resistance, reducing maintenance cycles and extending service life in demanding environments. Application Ideal for control panels and wiring enclosures in manufacturing, process facilities, and other industrial settings where reliability matters. Feature Form 5 LR profile ensures predictable alignment with existing fittings, enabling faster installation and fewer misfits. Business Impact Standardized form factors cut installation time and inventory costs, improving project schedules and procurement efficiency. Application Works seamlessly in North American panel shops that rely on Form 5 compatibility. Feature NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification, with UL Canada certification. Business Impact Simplifies regulatory documentation and risk management, supporting multi-site deployments and audits. Application Supports cross-border projects with consistent standards. Feature Documentation and digital assets including 3D CAD drawings, catalog pages, and spec sheets. Business Impact Accelerates design reviews and BIM workflows, reducing design-to-fabrication lead times. Application Useful for engineering teams integrating LR50M into broader conduit systems. Feature Compact, 4.68 in length, 2.05 in height, 1.37 in width, and weight 0.71 lb while maintaining protection level. Business Impact Small footprint enables dense installations and easier enclosure planning. Application Suitable for space-constrained electrical cabinets and junctions across industries.
Get a Quick Quote for a Eaton LR50M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR50M?
Enquire Now
FAQs
LR50M is a Form 5 conduit outlet body sized for 1/2 inch trade conduits and designed to mate with Eaton Crouse-Hinds Form 5 system fittings. It maintains the standard Form 5 footprint, ensuring alignment, reducing field rework, and speeding up panel fabrication and commissioning.
LR50M carries NEC/CEC standards compliance and is classified for Ordinary/Non-Hazardous Locations. It also features Canadian UL certification support, enabling cross-border projects to meet regulatory requirements and simplifying documentation for audits and installations.
The LR50M uses malleable iron in a Form 5 conduit outlet body with a 1/2 inch trade size. Its dimensions are 4.68 inches in length, 2.05 inches in height, and 1.37 inches in width, with a product weight of 0.71 pounds. UPC is 782274756035 for traceability.
Available assets include a 3D CAD drawing package, the Crouse-Hinds Form 5 catalog page, and the Eaton specification sheet. Certification reports and Canadian approvals are also accessible to support design validation, procurement, and regulatory compliance across sites.
LR50M offers durable malleable-iron construction, Form 5 compatibility, and a compact 1/2 inch conduit footprint, which reduces part variety and installation time. This translates to faster commissioning, fewer field reworks, and lower maintenance costs for high-volume panel and enclosure projects.
