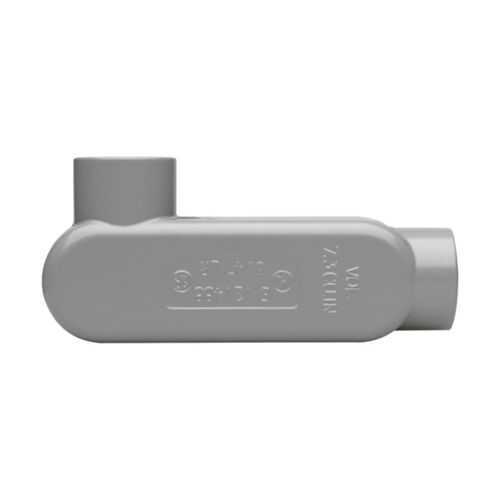

Eaton LR65 Condulet Series 5 Outlet - NEC/CEC
Part Number: LR65
Quick Summary
The Eaton LR65 Condulet Series 5 conduit outlet body provides rugged, copper-free aluminum enclosure for 2" rigid/IMC conduits used in industrial installations. Engineers often struggle with weight, corrosion, and install time when wiring large facilities or outdoor panels. This product supports NEC/CEC compliance and Ordinary/Non-Hazardous area classifications, with Canadian certification documentation available to streamline approvals. By combining Series 5 reliability with a lightweight LR-shaped body, it reduces mounting effort and long-term maintenance while improving routing and enclosure integrity. For contractors and procurement teams, the LR65 offers predictable performance and compatibility with standard 2" trade-size conduits, accelerating project timelines and lowering total cost of ownership.
Product Information
Extended Description
LR65 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LR shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LR65
UPC
784564140166
Product Length/Depth
9.88 in
Product Height
3.83 in
Product Width
3.41 in
Product Weight
2.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Conduit type
Rigid/IMC
Trade size
2"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR65
Feature: Copper-free aluminum construction. Business Impact: Provides excellent corrosion resistance in damp or outdoor environments while reducing weight, easing handling and installation fatigue. Application: Ideal for 2" trade-size Condulet LR65 installations in Series 5 configurations across industrial facilities. Feature: Rigid/IMC conduit compatibility. Business Impact: Enables seamless integration with common conduit systems, reducing the need for adapters and field fittings. Application: Retrofit projects or new builds in factory floors and process lines. Feature: LR shape and 2" trade size. Business Impact: Optimizes space within panels and simplifies routing around obstacles. Application: Suitable for tight panel spaces in manufacturing and automation panels. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous rating. Business Impact: Streamlines approvals and reduces risk of non-compliance with a widely adopted code base. Application: Used where code-compliant outlet bodies are required in standard facilities, with accessible Canadian certification documentation. Feature: Compact dimensions and modest weight. Business Impact: Improves handling during installation and lowers shipping and logistics costs for multi-point deployments. Application: Beneficial for modular enclosure builds and distributed control system installations. Feature: Documentation availability. Business Impact: Faster engineering approvals and easier BOM integration with datasheets, brochures, and spec sheets. Application: Engineering teams rely on LR65 datasheet, catalog pages, and certification documentation for procurement and compliance.
Get a Quick Quote for a Eaton LR65
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR65?
Enquire Now
FAQs
Begin by confirming a 2" trade-size connection and compatibility with rigid/IMC conduit. Align the conduit with the LR65 outlet body, secure using compatible mounting hardware, and ensure proper seal or gasket where applicable. Verify wiring clearance, torque requirements, and enclosure grounding per NEC/CEC guidelines. Reference the LR65 datasheet and Eaton installation literature for step-by-step guidance and recommended torque specs.
Yes. The LR65 is designed for Ordinary/Non-Hazardous locations and adheres to NEC/CEC standards. This makes it appropriate for general industrial facilities, factory floors, and non-hazardous environments, with Canadian certification documentation available to facilitate regulatory approvals and cross-border projects.
The LR65 uses copper-free aluminum, offering superior corrosion resistance and a lighter overall weight (2.6 lb) compared with traditional metal outlet bodies. These material and weight advantages translate to easier handling during installation, reduced shipping costs, and lower long-term maintenance in outdoor and harsh environments.
LR65 documentation includes the Series 5 catalog page, the LR65 specification sheet, and Canadian certification reports. You can access the Eaton brochures, catalogs, and certification PDFs to support design reviews, compliance checks, and procurement workflows, ensuring quick reference during engineering and field installation.
LR65 supports 2" trade-size, Rigid/IMC conduits in Series 5 configurations, with an LR-shaped body made from copper-free aluminum. It is rated for Ordinary/Non-Hazardous locations under NEC/CEC standards, making it suitable for standard industrial panels, outdoor enclosures, and process lines where robust, code-compliant conduit outlets are required.
