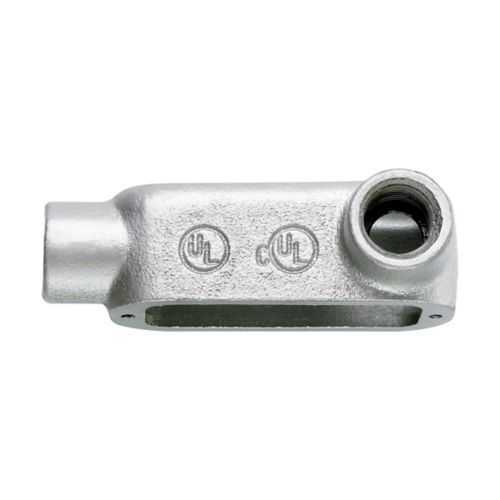

Eaton LR75M Condulet Form 5 – 3/4 in LR, NEC/CEC
Part Number: LR75M
Quick Summary
The Eaton LR75M Condulet Form 5 conduit outlet body provides durable terminations for Form 5 conduit systems used in industrial environments. This design addresses field-install challenges such as secure mounting, corrosion resistance, and enclosure protection during routine maintenance. It carries NEC/CEC compliance with an Ordinary/Non-Hazardous location rating, and Canadian certifications are available through official product downloads. By standardizing on the LR75M within the Condulet Form 5 family, manufacturers reduce spare parts and ordering complexity while maintaining consistent field performance. With a 3/4 in trade size and malleable iron construction, the LR75M enables reliable, long-term terminations in control panels and electrical cabinets across oil, gas, and manufacturing facilities.
Product Information
Extended Description
LR75M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LR shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LR75M
UPC
782274756042
Product Length/Depth
5.37 in
Product Height
2.25 in
Product Width
1.7 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Trade size
3/4"
Material
Malleable iron
Eaton Crouse-Hinds LR75M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LR75M
Rugged malleable iron construction with an LR form factor delivers higher impact resistance and longer service life for demanding industrial environments. This translates to reduced maintenance costs and fewer panel entries for replacements, benefiting maintenance teams and asset owners. The LR75M is designed to integrate seamlessly with the Condulet Form 5 family, decreasing spare-parts inventory and accelerating design-to-install workflows for engineers and panel builders working on metal enclosures and control panels. With a 3/4 in trade size, 5.37 in length, 2.25 in height, and 1.7 in width, it fits compact spaces while remaining easy to handle during installation, supporting faster commissioning and lower labor costs. Its 1 lb weight further simplifies handling in limited-access panels. This device aligns with NEC/CEC requirements for Ordinary/Non-Hazardous locations, streamlining approvals and audits. Documentation and CAD resources, including 3D drawings and catalogs, help design teams validate fit and interoperability across the Condulet line, improving project accuracy and reducing rework. Overall, LR75M provides reliable, code-compliant terminations with predictable performance in industrial coil rooms, mechanical spaces, and electrical cabinets.
Get a Quick Quote for a Eaton LR75M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR75M?
Enquire Now
FAQs
LR75M is sized for secure installation in standard Form 5 enclosures. When planning installs, verify panel clearance, ensure correct 3/4 in conduit connections, and follow NEC/CEC guidelines for ordinary locations. The 1 lb weight and compact dimensions facilitate handling in tight panels, while compatible mounting interfaces within the Condulet Form 5 family streamline assembly and reduce field labor.
LR75M is designed to comply with NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations. This aligns with typical industrial panel and enclosure installations. Canadian certifications are listed in official product downloads, supporting cross-border projects and safety audits. Users can reference the certification materials during design reviews to ensure code compliance and continuous regulatory adherence.
Yes. LR75M uses a 3/4 in trade size and LR-shaped Form 5 design, ensuring compatibility with other Condulet Form 5 conduit outlet bodies and standard 3/4 in conduits. Its dimensions—5.37 in length, 2.25 in height, and 1.7 in width—support predictable fit within standard panels, cabinets, and enclosures, enabling streamlined procurement and quick terminations.
LR75M is formed from malleable iron with an LR shape, 3/4 in trade size, and Form 5 designation. It weighs 1 lb and measures 5.37 in long, 2.25 in high, and 1.7 in wide. It is intended for ordinary locations per NEC/CEC, with a Catalog Number LR75M and UPC 782274756042, providing a predictable footprint for panel layouts and enclosure design.
The LR75M's rugged construction reduces maintenance frequency and replacement costs in non-hazardous environments. Standardized Form 5 components simplify procurement, training, and inventory management, leading to faster commissioning and lower total cost of ownership. Its code-compliant design minimizes risk during audits and ensures reliable long-term operation in control panels and electrical cabinets.
