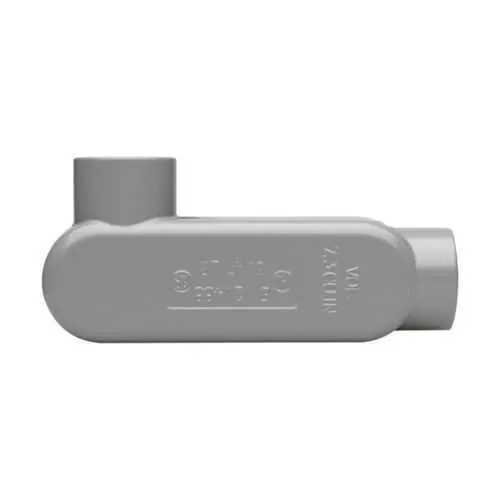

Eaton LR85 Conduit Outlet Body - Ordinary/Non-Hazardous
Part Number: LR85
Quick Summary
The Eaton LR85 conduit outlet body terminates rigid/IMC conduits in control panels and enclosures. Engineers often struggle with weight, corrosion, and installation time when choosing metal outlet bodies for demanding environments. This product aligns NEC/CEC requirements, UL certification for Condulet Series 5, and is suitable for Ordinary/Non-Hazardous Locations, helping ensure compliance. By leveraging copper-free aluminum, it delivers a robust, lighter alternative that reduces total installation costs while maintaining mechanical integrity. Its compatibility with Series 5 systems supports faster field upgrades and standardized parts across projects, adding value to industrial electrical installations.
Product Information
Extended Description
LR85 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LR shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LR85
UPC
784564140180
Product Length/Depth
13 in
Product Height
6.1 in
Product Width
4.7 in
Product Weight
6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LR
Conduit type
Rigid/IMC
Trade size
3"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LR85
Feature: Copper-free aluminum construction delivers corrosion resistance and lighter weight than traditional copper-bearing alloys, reducing handling risk and shipping costs across site teams. This material choice also aligns with copper-free design guidelines in modern panel builds where copper content is restricted. The LR85 maintains structural rigidity under vibration and temperature cycling, supporting NEC/CEC compliance in demanding environments.Feature: The LR shape with a 3 inch trade size and a 13 inch overall length optimizes routing for rigid/IMC conduit inside control panels and cabinets. This geometry minimizes interference with adjacent devices and simplifies mounting in cramped enclosures while preserving full conductors' clearances. Application: It integrates smoothly with Series 5 conduit systems used across industrial facilities for standardized field assembly.Feature: Rigid/IMC conduit compatibility ensures robust mechanical connections and predictable performance under typical factory vibrations and temperature shifts. The LR85’s precise dimensions support reliable sealing and enclosure integrity, reducing rework during installation. Business outcome: fewer conduit failures translate into reduced maintenance costs and less downtime.Feature: Certifications and approvals include NEC/CEC standards and UL certification for Condulet Series 5, with suitability for Ordinary/Non-Hazardous Locations. This credential set accelerates design sign-offs, helps pass inspections, and enables reuse of the same part across multiple projects. Application: ideal for non-hazardous production zones and assembly lines where standardization matters.Feature: Series 5 compatibility and standardization across Eaton conduits improve installation efficiency and spare-parts availability, mitigating procurement risk. The LR85’s dimensions and weight enable straightforward mounting and easier field upgrades. Result: reduced project lead times and lower total cost of ownership across multi-site deployments.
Get a Quick Quote for a Eaton LR85
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LR85?
Enquire Now
FAQs
LR85 accepts 3\" trade size rigid/IMC conduit and uses the LR shape for clean routing inside control panels. Its 13 in length, 6.1 in height, and 4.7 in width create a predictable mounting footprint, while copper-free aluminum lowers weight and helps ease long conduit runs in tight spaces.
LR85 complies with NEC/CEC standards and carries UL certification for Condulet Series 5, with suitability for Ordinary/Non-Hazardous Locations. These credentials speed up design verification, simplify inspections, and enable reuse of the same part across multiple projects without redesign.
Yes. The LR85 is intended for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC requirements and UL certification for the Condulet Series 5, making it suitable for general manufacturing areas, control panels, and light assembly lines where standard, compliant conduit outlets are needed.
Copper-free aluminum reduces weight and minimizes copper-related corrosion concerns, improving handling during installation and lowering lifecycle maintenance. The material also resists oxidation in typical panel environments, helping maintain enclosure integrity and reducing the risk of conductor damage over time. Its compatibility with Series 5 components also simplifies stocking and replacements, reducing downtime.
Using the LR85 across multi-site deployments leverages standardization with Eaton Condulet Series 5, reducing procurement lead times and spare parts inventory. The LR85's weight, consistent dimensions, and verified NEC/CEC/UL compliance speed project sign-off and minimize field rework, delivering measurable cost savings across facilities.
