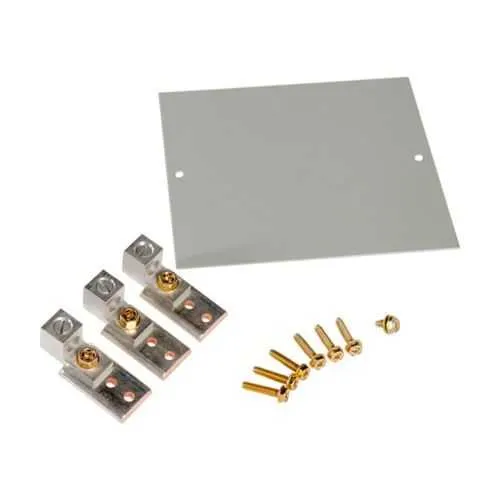

Eaton LUGKIT100 Panelboard Connector Kit - 100 A
Part Number: LUGKIT100
Quick Summary
Eaton LUGKIT100 panelboard connector kit provides fast, reliable lug connections for Pow-R-Xpress panelboards in electrical distribution. This accessory helps eliminate delays caused by makeshift splices and misaligned lugs in crowded panels. Certification status is listed as 'Contact Manufacturer'; in practice, verify UL/CSA and CE markings with Eaton as required by your project. When paired with the Pow-R-Xpress system, installers gain seamless compatibility, consistent performance, and streamlined maintenance workflows, delivering tangible time savings and reduced field punch lists. The kit also supports 100 A service lugs in both 1- and 3-phase configurations, giving engineers a scalable solution for growing electrical distribution needs. Its compact form and Eaton compatibility simplify stocking and onsite handling for panel retrofits. This makes it a practical choice for service upgrades in busy electrical rooms.
Product Information
Extended Description
LUGKIT100 Eaton: Eaton Pow-R-Xpress main or feed-thru lug kit 100 A, 1 or 3ph
Product Name
Eaton Pow-R-Xpress panelboard connector kit
Catalog Number
LUGKIT100
UPC
786687009832
Product Length/Depth
1.47 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Certifications
Contact Manufacturer
Type
Main or feed-thru lug kit 100a 1 or 3ph
Special features
PRL1X/2X - PRL1A/2A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Distributor Newsline
Pow-R-Line Xpert family overview
Eaton Specification Sheet - LUGKIT100
Feature: The kit provides a 100 A main or feed-through lug option capable of 1- or 3-phase service. Business impact: Enables scalable distribution design and reduces procurement complexity by using a single accessory across configurations. Application: Ideal for Eaton Pow-R-Xpress panelboards in industrial facilities seeking fast, reliable lug connections. Feature: Compact 1.47 in depth and 1 x 1 in profile with a 1 lb weight. Business impact: Eases handling, minimizes installation time, and lowers field labor costs. Application: Suited for tight panel spaces and retrofit projects where space is at a premium. Feature: Catalog number LUGKIT100 and physical compatibility with Pow-R-Xpress main or feed-thru lugs. Business impact: Improves install certainty and maintenance predictability, reducing commissioning time. Application: Use in new builds or upgrades to ensure consistent lug alignment. Feature: Special features PRL1X/2X noted on the kit. Business impact: Provides documented compatibility options for common Eaton configurations, speeding project approvals. Application: Applicable in multi-lug Eaton panel setups requiring quick-change lug arrangements. Feature: Certifications listed as per manufacturer guidance. Business impact: Encourages proactive verification of regulatory approvals on site, mitigating project risk. Application: Confirm required UL/CSA/CE statuses with Eaton before field deployment.
Get a Quick Quote for a Eaton LUGKIT100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LUGKIT100?
Enquire Now
FAQs
LUGKIT100 is designed as a main or feed-through lug kit for 100 A service in 1- or 3-phase configurations on Eaton Pow-R-Xpress panelboards. Verify catalog number LUGKIT100 and consult the Eaton datasheet to confirm compatibility with your specific panel model and bus arrangement before ordering.
The kit is rated for 100 A and supports 1- and 3-phase configurations. Physical dimensions are 1.47 in in depth, and 1 in height by 1 in width, with an approximate weight of 1 lb. These specifications support easy handling and fast on-site installation in constrained spaces.
Use LUGKIT100 for Eaton Pow-R-Xpress panelboards requiring a main or feed-through lug approach at 100 A. It is suitable for new installations and retrofits where a compact, standardized lug kit improves reliability, reduces field wiring time, and maintains consistent lug alignment across 1- and 3-phase configurations.
Certifications are listed as contact manufacturer. To ensure compliance for your project, verify with Eaton whether UL, CSA, CE, or other regulatory approvals are current for your region and panel configuration. This helps ensure your installation meets local code and project requirements.
Using LUGKIT100 can reduce field wiring time and commissioning effort by providing a pre-certified, compatible lug interface for Eaton Pow-R-Xpress panelboards. The result is faster installation, fewer on-site adjustments, lower labor costs, and easier future maintenance or upgrades due to standardized components.
