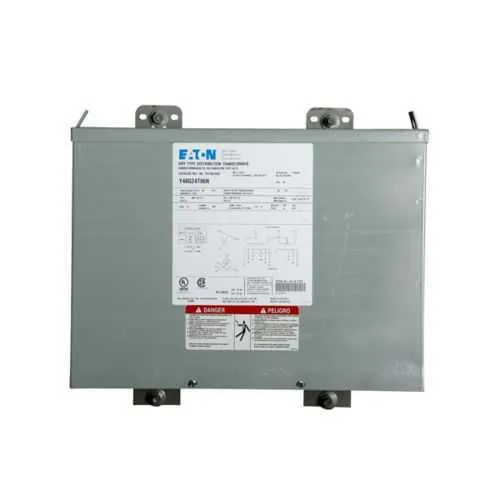

Eaton LY48D28T06CUSS Marine Duty Transformer - UL Listed
Part Number: LY48D28T06CUSS
Quick Summary
The Eaton LY48D28T06CUSS marine duty encapsulated transformer delivers reliable power conversion for onboard systems. In harsh salt-air environments and constant vibration, ordinary transformers can corrode or drift voltage, causing unplanned downtime. UL Listed safety certification and a NEMA 3R Grade 304 stainless enclosure provide rugged protection for indoor-outdoor marine service. With copper windings and a 60 Hz three-phase design, it integrates into existing power-distribution schemes, reducing installation risk and lifecycle costs. Designed for 480 V input and 208Y/120 V output, it supports common marine equipment, control panels, and auxiliary systems. Warranty terms, service accessibility, and Eaton's documented catalog support help procurement teams mitigate risk during project kickoff.
Product Information
Extended Description
LY48D28T06CUSS Eaton: Eaton Marine duty encapsulated transformer, marine duty encapsulated transformer, EPTM, copper, NEMA 3R, 200, 60 Hz, three-phase, 480 V, 208Y/120 V, 2 at +2.5% FCAN, 2 at -2.5% FCBN, 115 °C rise, 6 KVA, indoor-outdoor, 72B06L
Product Name
Eaton Marine duty encapsulated transformer
Catalog Number
LY48D28T06CUSS
UPC
786680057663
Product Length/Depth
10.01 in
Product Height
15.9 in
Product Width
16.93 in
Product Weight
190 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Grade 304 stainless steel enclosure
Coil material
Copper
Design
EPTM
Enclosure
NEMA 3R
Frame
200
Tap size
2 at +2.5% FCAN, 2 at -2.5% FCBN
Type
Marine Duty Encapsulated Transformer
Wiring connection
72B06L
Frequency rating
60 Hz
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Temperature rise
115 °C rise
Volt ampere rating
6 kVA
Weathershield
Indoor-Outdoor
Feature: Marine-duty encapsulated construction. Business impact: encapsulation shields windings from moisture, salt spray, and vibration, extending service life and reducing maintenance costs. Application: ideal for onboard power systems on ships and offshore platforms where harsh conditions are the norm. Feature: NEMA 3R enclosure with Grade 304 stainless steel. Business impact: provides indoor-outdoor durability and corrosion resistance, enabling flexible placement and fewer enclosure swaps. Application: suitable for electrical rooms, weather-exposed locations, and outdoor equipment racks on vessels. Feature: 6 kVA rating with 480 V primary and 208Y/120 V secondary. Business impact: supports efficient, centralized power distribution from standard shipboard supplies, reducing the need for multiple devices. Application: powers control panels, auxiliary systems, and mission-critical loads with consistent voltage. Feature: Copper windings and 60 Hz three-phase design. Business impact: offers reliable thermal performance and tight voltage regulation under varying loads, improving equipment lifespan. Application: main distribution feeders and critical load circuits across the vessel. Feature: Tap size of 2 at +2.5% FCAN and 2 at -2.5% FCBN. Business impact: maintains voltage within tolerance during start-up transients and load swings, reducing nuisance trips. Application: support for motor starts and machinery with fluctuating currents. Feature: 115 °C rise rating and 72B06L wiring connection. Business impact: supports high-load operation with effective heat management and straightforward field wiring. Application: marine electrical gear rooms and panel boards requiring compact, efficient wiring harnesses.
Get a Quick Quote for a Eaton LY48D28T06CUSS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LY48D28T06CUSS?
Enquire Now
FAQs
The LY48D28T06CUSS is a 6 kVA, three-phase transformer with a 480 V primary and 208Y/120 V secondary, designed for 60 Hz marine service. Its copper windings and encapsulated design support rugged onboard electrical systems, and it connects via the 72B06L wiring configuration. This enables reliable voltage regulation across critical loads in harsh environments.
Install this transformer per the Eaton datasheet and use the 72B06L wiring configuration for primary and secondary connections. Ensure correct load distribution and follow the recommended torque and shutdown procedures. Mount in the NEMA 3R Grade 304 stainless enclosure for indoor-outdoor service and provide adequate clearance for ventilation and heat dissipation.
Yes. The transformer is designed for marine duty with a rugged indoor-outdoor NEMA 3R enclosure and UL Listed safety, supporting reliable operation in offshore electrical rooms. Its 6 kVA rating and copper windings ensure consistent 480 V to 208Y/120 V conversion at 60 Hz, even under challenging platform conditions. That durability supports long service intervals and reduces maintenance crew calls.
UL Listed safety certification applies to this transformer, confirming compliance with electrical safety requirements. The unit's Grade 304 stainless steel enclosure and NEMA 3R rating provide corrosion resistance for indoor-outdoor marine environments. It also aligns with standard marine practice for copper-wound, encapsulated transformers. UL listing supports procurement validation and regulatory audits, while the copper windings and 60 Hz specification match common shipboard systems.
Encapsulated, copper-wound transformers like LY48D28T06CUSS require minimal maintenance due to sealed construction that resists moisture and dust ingress. The 6 kVA rating supports efficient load handling, helping avoid over-sizing and related capex. With UL safety and durable enclosure, you should experience higher uptime, lower unplanned downtime, and reduced service interventions on vessels.
