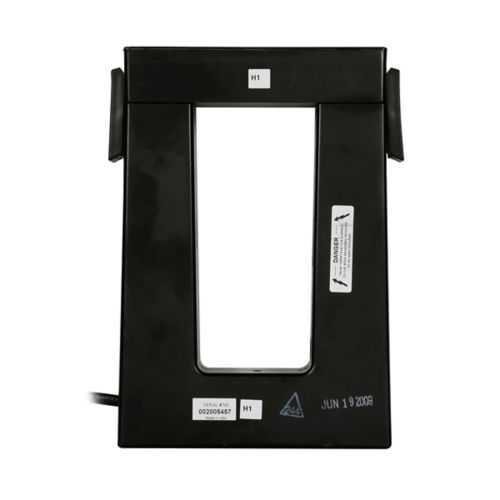

Eaton M000-162 5A Split Core Current Sensor - UL Recognized
Part Number: M000-162
Quick Summary
The Eaton M000-162 current sensor provides reliable 5A secondary monitoring for high-current applications in switchgear, metering, and industrial control panels. Installation can be lengthy with traditional CTs, but the split-core design reduces downtime and simplifies retrofits in crowded enclosures. This device carries CSA Certified and UL Recognized marks, ensuring safety and performance compliance in demanding environments. Designed for power management and distribution, it supports accurate energy accounting and reliable monitoring across panel boards, motors, and feeders, while integrating with metering systems and broader energy-management platforms for measurable business value.
Product Information
Extended Description
M000-162 Eaton: Eaton Split Core Current Transformer, 1600A, 0.6% accuracy, 2.00 x 5.50 in window
Product Name
Eaton 5A split core current sensor
Catalog Number
M000-162
UPC
782114264362
Product Length/Depth
1 in
Product Height
4.2 in
Product Width
7.7 in
Product Weight
1.6 lb
Warranty
1 year
Certifications
CSA Certified UL Recognized
Amperage Rating
1600A
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
1600A
Window size
2.00" x 5.50"
Output Current (Secondary)
5A
Accuracy
0.60%
Window
2.00 x 5.50 in
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - M000-162
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
1600A primary rating with a 5A output delivers a straightforward path from large feeders to standard monitoring instruments, enabling precise energy measurement without complex interfaces. This feature reduces calibration overhead and supports seamless integration with metering systems, driving improved billable energy accuracy and compliance reporting. The split-core construction allows tool-free installation in existing panels, dramatically cutting commissioning time and minimizing system downtime during retrofits. The window size of 2.00 x 5.50 inches accommodates common busbar configurations, enabling versatile placement in dense electrical rooms and compact switchgear. With 0.60% accuracy, you gain tighter measurement tolerances, improving energy management and reducing revenue-grade metering errors. CSA Certified and UL Recognized certifications bolster regulatory compliance, while the 1-year warranty mitigates lifecycle risk and supports predictable maintenance planning. The compact footprint and lightweight design simplify field handling and installation alongside other power management components, offering a cost-effective upgrade path for industrial facilities.
Get a Quick Quote for a Eaton M000-162
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M000-162?
Enquire Now
FAQs
The M000-162 uses a split-core design that enables you to open the window and snap it around the conductor without disconnecting power. Ensure the window accommodates a 2.00 x 5.50 in area and route the secondary output to your metering or控制 device with proper isolation. Verify clearance for the 1 in depth and 4.2 in height while securing the unit to avoid movement during vibration.
Key specs include a 1600A primary rating, 5A secondary output, and 0.60% accuracy. These figures mean the sensor accurately converts large primary currents into a precise 5A secondary signal, enabling reliable energy measurement for metering, power monitoring, and protection schemes in industrial environments.
Yes. Its 1600A primary range, 5A secondary output, and 0.60% accuracy make it well-suited for energy management systems, switchgear metering, and retrofits where accurate current measurement is critical. The split-core design simplifies retrofitting in existing installations, reducing downtime and enabling quicker integration with power monitors.
The M000-162 is CSA Certified and UL Recognized, indicating compliance with recognized safety and performance standards. This certification supports regulatory acceptance in North American electrical systems and helps ensure reliability when used in critical power management and distribution applications.
The split-core design minimizes panel downtime during installation, reducing labor costs and project duration. The device’s accuracy improves metering quality, potentially lowering energy waste calculations and improving billable energy reconciliation. A 1-year warranty adds lifecycle protection, while CSA/UL certification reduces compliance risk in ongoing maintenance and audits.
