Eaton M080-501 Current Sensor - UL Recognized CSA Certified
Part Number: M080-501
Quick Summary
The Eaton M080-501 current sensor accurately monitors load currents in low-voltage panels and metering systems. Engineers often grapple with bulky CTs, calibration drift, and slow commissioning when upgrading energy monitoring. UL Recognized and CSA Certified, along with 1% accuracy, ensure safe, compliant operation in demanding environments. As a split-core CT with a 500A primary and 5A secondary, it plugs into most meters and panels for quick, scalable energy management. Designed for reliability in control panels, it supports fast data capture for energy dashboards and demand response programs, reducing downtime during installation. With its compact 2.60 x 6.25 in window and lightweight form, commissioning teams benefit from straightforward conduit access and safer non-invasive mounting.
Product Information
Extended Description

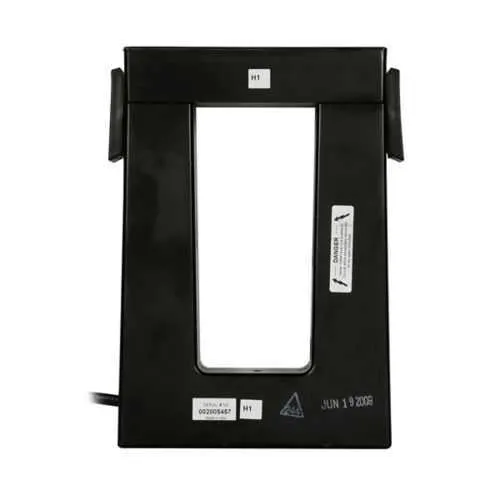

M080-501 Eaton: Split Core Current Transformer, 500A, 1% accuracy, 2.60 x 6.25 in window
Product Name
Eaton 5A split core current sensor
Catalog Number
M080-501
UPC
782114265109
Product Length/Depth
6.25 in
Product Height
1.75 in
Product Width
6.05 in
Product Weight
7.5 lb
Warranty
1 year
Certifications
UL Recognized CSA Certified
Amperage Rating
500A
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
500A
Window size
2.60" x 6.25"
Output Current (Secondary)
5A
Accuracy
1%
Window
2.60 x 6.25 in
Power Systems Experience Center Tour – Metering Focus
5A split core current transformers (CT-SP) technical data
5A split core current transformers (CT-SP) technical data
Split-core design allows installation around live conductors without disconnecting the circuit, delivering non-invasive sensing that minimizes downtime. This is especially valuable during plant turnarounds, panel upgrades, or EMS integrations where time is money. By removing the need to open enclosures, technicians can retrofit meters and monitors into existing distribution boards and control panels with confidence. The 2.60 x 6.25 inch window accommodates typical busbar layouts, enhancing placement flexibility in cabinets. With a 500A primary rating and a 5A secondary output, the M080-501 directly interfaces with standard metering and protection equipment, reducing secondary wiring complexity and signal conversion losses. This aligns with modern energy management systems and submetering schemes, enabling tighter current measurement budgets and simpler calibration workflows. The device supports seamless integration in new builds and retrofits of power distribution panels. 1% accuracy guarantees tight measurement tolerances across the operating range, improving billing accuracy and demand calculation for peak shaving programs. In data centers and manufacturing floors, precise CT readings translate into actionable insights for energy optimization and compliance reporting. This performance is resilient to common electrical noise thanks to Eaton’s design and testing protocols. Window size of 2.60 x 6.25 inches delivers flexible routing in crowded panels, allowing installers to position the CT around multiple conductors without crowding existing hardware. The compact footprint paired with a 6.25 inch length simplifies mounting behind covers and in tight enclosures, accelerating field installs and reducing rework during commissioning. UL Recognized and CSA Certified performance underlines safety and regulatory compliance in industrial environments, minimizing procurement risk and accelerating approvals for panel builds. The 1-year warranty adds a practical assurance for maintenance windows and service contracts, supporting long-term reliability in critical power paths. Weight of 7.5 lb and a robust construction support installation in challenging industrial spaces, while the 7.5-pound mass helps with handling during wiring and mounting. This device is designed for durable operation in temperatures within typical low-voltage power systems, contributing to lower maintenance demands.
