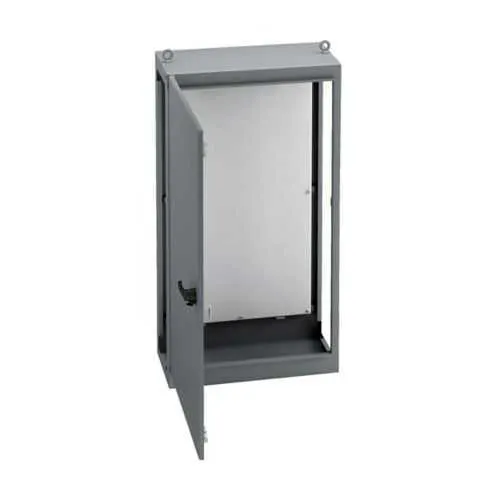

Eaton M723818-12FS Panel Enclosure - NEMA 12 Rating
Part Number: M723818-12FS
Quick Summary
The Eaton M723818-12FS panel enclosure protects electrical control circuits in industrial facilities with a durable, ground-mounted cabinet. Engineering teams often struggle with mounting options and reliable access control; this model simplifies installation while maintaining security. UL 508A, CSA C22.2, and NEMA 12 certifications ensure compliance and protection for demanding electrical environments. Coupled with a carbon-steel body, oil-resistant gasket, and user-friendly features, it delivers reliable performance and cost efficiency. This enclosure integrates smoothly with B-Line systems and supports scalable control architectures for growing facilities. For maintenance teams, features such as a hinged cover, 3-point latching handle, and key-lock provisions reduce downtime during inspections. Overall, the M723818-12FS balances rugged protection with installation efficiency, delivering long-term ROI through reliability and regulatory peace of mind.
Product Information
Extended Description
M723818-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 18" length, 38" width, NEMA 12, Hinged cover, M12FS enclosure, Ground mount, Large single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
M723818-12FS
UPC
782051482409
Product Length/Depth
18 in
Product Height
72 in
Product Width
38 in
Product Weight
356.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large single door
Model
M12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Concealed hinge
Special features
Body stiffener,lifting eyebolt,3-pt latchinghandle
NEMA Rating
12
Country of origin
US
Feature → NEMA 12 carbon steel enclosure with 12 gauge walls and ANSI 61 gray painted finish provides robust dust and splash protection in harsh industrial environments. Business Impact → Reduces ongoing maintenance costs and unplanned downtime by preventing ingress and corrosion, extending service life of interior panels. Application → Ideal for machine control panels in manufacturing and process facilities where continual operation and environmental control are required. Feature → Ground mounting with a large single door and concealed hinge enables straightforward installation and service access. Business Impact → Speeds up commissioning, simplifies door alignment, and reduces time spent on mid-life panel servicing. Application → Suitable for floor-mounted electrical rooms and electrical infrastructure cabinets in assembly lines and packaging plants. Feature → Hinged cover, 3-point latching handle, body stiffeners, lifting eyebolt, and key lock padlock provision deliver secure, maintenance-friendly access. Business Impact → Enhances security while enabling safe, tool-free servicing and rapid fault isolation. Application → Critical for control cabinets in regulated environments and facilities requiring controlled access. Feature → Oil-resistant gasket with NEMA 12 rating and UL 508A/CSA C22.2 compliance ensures regulatory alignment and dependable environmental sealing. Business Impact → Improves safety compliance and reduces risk of moisture damage during periodic washdowns or humidity exposure. Application → Industrial automation cabinets operating in moderate washdown or dusty environments. Feature → B-Line series compatibility and standard enclosure dimensions (72 in x 38 in x 18 in) support scalable integration with existing infrastructure. Business Impact → Streamlines retrofits and expansions, protecting capital investments. Application → Facilities consolidating multiple control panels or migrating to standardized enclosures across lines.
Get a Quick Quote for a Eaton M723818-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M723818-12FS?
Enquire Now
FAQs
The M723818-12FS is designed for ground mounting, offering a large single door with a concealed hinge for easy installation and service access. There are no mounted provisions within the base for wall or panel mounting, which simplifies base installation and reduces structural complexity on the floor. This configuration is ideal for machine rooms and defined electrical spaces where floor mounting is preferred.
This enclosure carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating. These standards confirm compliance for industrial electrical equipment, dust and splash protection, and reliability in demanding environments. The combination supports safe integration into regulated facilities and helps ensure regulatory readiness during audits.
The enclosure measures 72 inches in height, 38 inches in width, and 18 inches in depth. It weighs approximately 356.2 pounds. The 12-gauge carbon steel construction, ANSI 61 gray painted finish, and robust body stiffeners contribute to its substantial footprint and sturdy service life in industrial settings.
Yes, it is designed for industrial control installations needing reliable protection. With NEMA 12 protection, oil-resistant gasket, and a carbon steel body, it handles dust, grime, and routine washdowns in non-weather-exposed spaces. For outdoor or high-moisture environments, consider additional enclosure protection or climate control measures.
Choose the ground-mount configuration for straightforward installation and future expansions within an Eaton B-Line ecosystem. Leverage the hinged cover, 3-point latching, and key-lock provisions to minimize downtime during inspections and maintenance. The enclosure’s compatibility with standard B-Line accessories enables scalable integration across multiple lines, reducing total cost of ownership over time.
