Eaton M727718-12FS Panel Enclosures - NEMA 12
Part Number: M727718-12FS
Quick Summary
Panel enclosures for Eaton M727718-12FS provide robust protection for electrical equipment in industrial facilities. This design addresses common maintenance pain points by delivering secure access, reliable sealing, and straightforward field service, helping reduce downtime. UL 508A, CSA C22.2, and a NEMA 12 rating ensure electrical safety and regulatory compliance in harsh environments. Ground-mounted construction with a hinged cover and 3-point latching supports fast, safe servicing while optimizing total cost of ownership. The enclosure’s oil-resistant gasket and durable carbon steel build also align with reliability-focused procurement strategies while maintaining compatibility with standard control-panel components.
Product Information
Extended Description

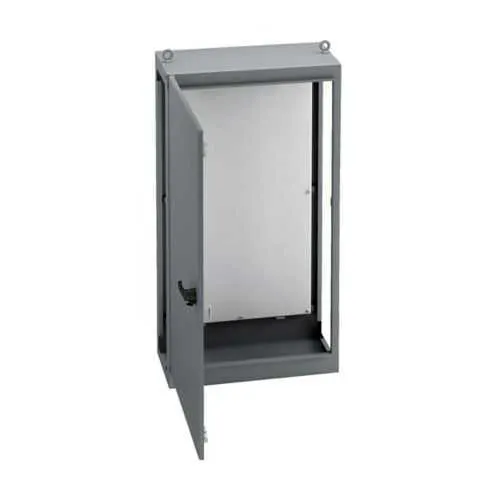

M727718-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 18" length, 77" width, NEMA 12, Hinged cover, M12FS enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
M727718-12FS
UPC
782051482423
Product Length/Depth
18 in
Product Height
72 in
Product Width
77 in
Product Weight
721.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
M12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature Ground mounting with large footprint → Business Impact Provides a stable, easy-to-anchor foundation suitable for concrete pads, reducing installation time and misalignment risks. Application Ideal for outdoor or semi-enclosed industrial spaces where a solid base is required to support long service life and consistent enclosure integrity. Feature Hinged, large double doors with 3-point latching → Business Impact Improves operator access, security, and seal integrity during routine maintenance, lowering mean time to repair. Application Control panels in manufacturing lines and process equipment rooms benefit from quick, safe servicing.Feature 12-gauge carbon steel with painted ANSI 61 gray finish → Business Impact Delivers rigidity, weather resistance, and a professional, maintenance-friendly appearance, reducing corrosion concerns under typical industrial environments. Application Suitable for harsh factory floors, utility rooms, and equipment housings where enduring protection matters.Feature Oil-resistant gasket and NEMA 12 rating → Business Impact Enhances dust and non-typical liquid ingress protection, supporting compliance with safety standards and uptime guarantees. Application Critical for areas with dust, oily residues, or damp conditions in indoor facilities.Feature Ground mounting method with no internal mounting provisions → Business Impact Simplifies field installation and reduces interior disruption, enabling straightforward mounting on concrete bases. Application Useful for ground-installed control panels where space constraints are managed externally.Feature Size: 72 in height, 77 in width, 18 in depth; Weight 721.9 lb → Business Impact Predictable footprint and handling load, aiding site planning, rigging, and shipping logistics. Application Large control-panel assemblies in plant rooms require precise clearances and robust enclosure support.
Get a Quick Quote for a Eaton M727718-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M727718-12FS?
Enquire Now
FAQs
The M727718-12FS uses ground mounting with no internal mounting provisions. Install on a level concrete base or suitable foundation and anchor externally as required. Its hinged cover and large doors facilitate rapid access during preventive maintenance, helping minimize downtime while maintaining enclosure integrity.
Key specs include 72 in height, 77 in width, 18 in depth, 12-gauge carbon steel construction, ANSI 61 gray painted finish, NEMA 12 rating, hinged cover, and 3-point latching handle with a key lock padlock provision. It weighs about 721.9 lb and is designed for ground installation.
Yes. This enclosure carries UL 508A and CSA C22.2 listings and adheres to NEMA 12 protection. This combination supports safe operation, regulatory compliance, and reliable protection for electrical control panels in industrial settings.
Ideal for large industrial control panels in manufacturing plants, process equipment rooms, and utility facilities. Its ground-mounted configuration and rugged carbon steel construction make it suitable for indoor installations with dust and exposure to oils or other non-corrosive liquids, all while ensuring secure access.
It features a hinged cover with a 3-point latching handle and a key lock padlock provision for secure access, plus an oil-resistant gasket for better sealing. These design choices reduce maintenance downtime, extend service intervals, and protect critical circuitry, delivering lower lifecycle costs and higher uptime.
