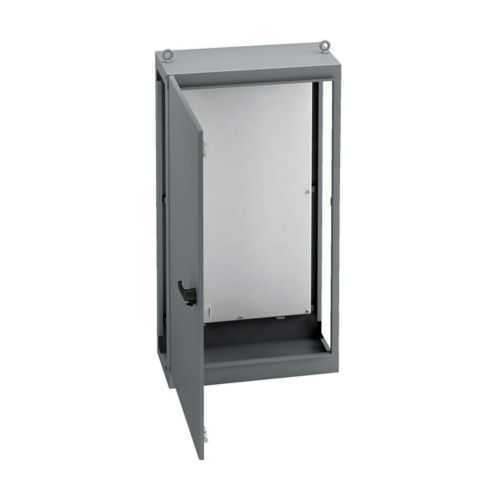

Eaton M843824-12FS Panel Enclosure - NEMA 12
Part Number: M843824-12FS
Quick Summary
The Eaton M843824-12FS Panel Enclosure is a ground-mounted solution that protects electrical controls in demanding industrial environments. In many facilities, dust, moisture, and vibration threaten reliability; this enclosure mitigates those risks with a NEMA 12-rated shell and a robust 12-gauge carbon steel body. UL 508A, CSA C22.2, and NEMA certifications provide regulatory confidence and safe operation across installations. The ANSI 61 gray, painted finish, oil-resistant gasket, and large single door support easy access, long service life, and consistent maintenance cycles. By combining this enclosure with Eaton's B-Line series standards, you get a durable, scalable foundation for control panels, wiring troughs, and instrumentation while protecting your capital equipment.
Product Information
Extended Description
M843824-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 84" height, 24" length, 38.75" width, NEMA 12, Hinged cover, M12FS enclosure, Ground mount, Large single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
M843824-12FS
UPC
782051482560
Product Length/Depth
24 in
Product Height
84 in
Product Width
38.75 in
Product Weight
423.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large single door
Model
M12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Concealed hinge
Special features
Body stiffener,lifting eyebolt,3-pt latchinghandle
NEMA Rating
12
Country of origin
US
Feature: Ground mounting with a large access door. Benefit: Simplifies installation on factory floors and reduces service time by enabling quick access to internal components. Application: Ideal for floor-mounted control panels in manufacturing lines where space is at a premium and frequent maintenance is required. Feature → Business Impact → Application: The M843824-12FS provides a secure, accessible housing that minimizes downtime during wiring changes or inspection rounds in process automation environments. Feature: Carbon steel, 12-gauge walls with ANSI 61 gray painted finish. Benefit: Delivers corrosion resistance and a durable exterior suitable for harsh environments, lowering lifecycle replacement costs. Application: Suitable for metal fabrication shops and material handling facilities where continuous exposure to dust and incidental moisture occurs. Feature: NEMA 12 protection, UL 508A, CSA C22.2 certifications. Benefit: Ensures regulatory compliance and predictable performance for electrical installations. Application: Compliance-driven projects in packaging, automotive, and food & beverage equipment lines. Feature: Hinged cover, concealed hinge, 3-point latching handle, and key lock padlock provision. Benefit: Strengthens security, seals effectively against contaminants, and facilitates controlled access during maintenance. Application: Instrumentation cabinets and control enclosures for critical machinery. Feature: Special features body stiffener, lifting eyebolt. Benefit: Improves structural rigidity and simplifies handling during installation or relocation. Application: Heavy-duty installations requiring reliable lifting and placement on the factory floor.
Get a Quick Quote for a Eaton M843824-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M843824-12FS?
Enquire Now
FAQs
This model is designed for ground mounting with no mounting provisions built into the enclosure itself. If you need alternative mounting (wall or ceiling), plan external hardware or base adapters compatible with the M12FS enclosure and the B-Line series design. Ensure secure anchoring to meet your factory safety standards.
Yes, the enclosure carries UL 508A and CSA C22.2 certifications, along with a NEMA 12 rating. For full compliance, select compatible internal components, gaskets, and fittings rated for your environment, and verify installation in accordance with local electrical codes.
The enclosure measures 84 inches in height, 38.75 inches in width, and 24 inches in depth, with a listed weight of 423.6 pounds. It uses 12-gauge carbon steel with an ANSI 61 gray painted finish, optimized for rugged industrial use and long service life.
Security is enhanced by a key lock padlock provision and a concealed three-point latching handle. Maintenance is facilitated by a large single door for easy component access, a hinged cover, oil-resistant gasket, and body stiffeners that maintain enclosure integrity during frequent openings and environmental exposure.
Designed for industrial control panels and electrical distribution, the M843824-12FS suits manufacturing, packaging, and process industries requiring durable protection, regulatory compliance, and straightforward service access. Its ground-mount configuration is ideal for floor-mounted installations where stability and ease of maintenance are priorities.
