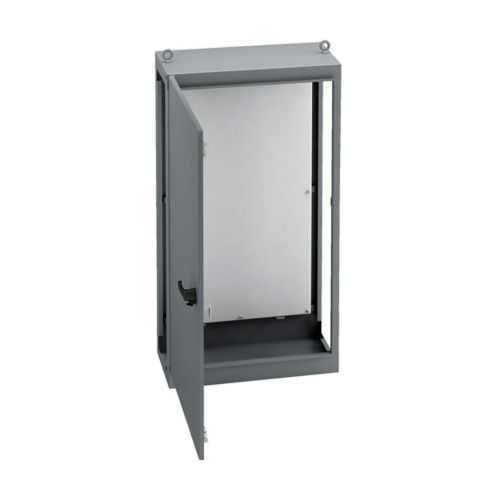

Eaton M847718-12FS Panel Enclosure - NEMA 12, UL 508A
Part Number: M847718-12FS
Quick Summary
The Eaton M847718-12FS Enclosure is a rugged, ground-mounted panel enclosure designed for industrial control applications. It addresses common field challenges such as space constraints, oil exposure, and access during maintenance by delivering a large, durable footprint with secure access. With UL 508A and CSA C22.2 certifications and a NEMA 12 rating, it offers proven safety and compliance for electrical infrastructure. The carbon steel construction, 12-gauge wall, and oil-resistant gasket support long service life, while the hinged cover and 3-point latching handle simplify installation and service workflows. This solution aligns with B-Line Series compatibility and supports scalable investments in plant-wide enclosures and electrical infrastructure.
Product Information
Extended Description
M847718-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 84" height, 18" length, 77" width, NEMA 12, Hinged cover, M12FS enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
M847718-12FS
UPC
782051482584
Product Length/Depth
18 in
Product Height
84 in
Product Width
77 in
Product Weight
841.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
M12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature: NEMA 12 rated enclosure with UL 508A and CSA C22.2 certifications → Business Impact: Ensures dust, water, and oil ingress protection while meeting regulatory requirements, reducing rework and compliance risk. Application: Suitable for control panels in dusty and oily manufacturing environments. Feature: Ground mounting with large double doors → Business Impact: Improves install speed and maintenance access, lowering labor costs and downtime. Application: Factory floor panels where frequent servicing is required. Feature: Hinged cover with 3-point latching and key lock padlock provision → Business Impact: Provides secure, tamper-resistant access and simplified lockout workflows, enhancing safety and audit readiness. Application: Critical electrical cabinets in process lines and automation rooms. Feature: 12 gauge carbon steel construction with oil-resistant gasket → Business Impact: Delivers robust physical protection against impact and chemical exposure, extending service life in harsh environments. Application: Enclosures exposed to oil, spills, and temperature variation on the plant floor. Feature: Large footprint: 84 in height, 77 in width, 18 in depth with ANSI 61 gray finish → Business Impact: Accommodates larger wiring, devices, and future expansions while maintaining a consistent, professional appearance. Application: Control rooms and equipment rooms needing scalable enclosures within limited footprints.
Get a Quick Quote for a Eaton M847718-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M847718-12FS?
Enquire Now
FAQs
The M847718-12FS is a ground-mounted enclosure designed for large control panels. It features a hinged cover, 3-point latching, and a key lock provision, with dimensions of 84 in height, 77 in width, and 18 in depth. Be sure to verify footprint and mounting provisions match your site’s space and interface requirements.
This model carries a NEMA 12 rating and certifications UL 508A and CSA C22.2, indicating suitability for dusty and oil-immersed environments. It uses carbon steel with a 12-gauge wall and an oil-resistant gasket, and it includes a hinged cover with a large double-door design for easy access.
Ideal for factory floor control panels, process equipment cabinets, and general electrical infrastructure in industrial settings. The enclosure’s substantial dimensions (84 in x 77 in x 18 in) support larger wiring runs and equipment, while its robust gasket and locking features support safe, compliant operation in challenging environments.
The enclosure is UL 508A and CSA C22.2 certified, with a NEMA 12 rating. These certifications ensure electrical safety and environmental protection appropriate for commercial and industrial control applications.
Investing in the M847718-12FS reduces maintenance downtime through easier access and durable protection. Its corrosion- and oil-resistant gasket, plus solid steel construction, extend service life and help minimize replacement costs, delivering lower total cost of ownership over the equipment’s life cycle.
