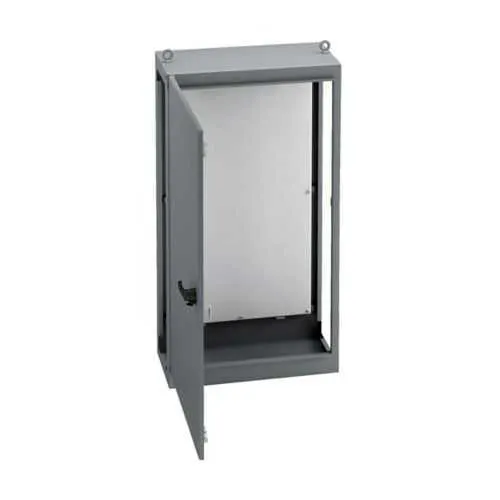

Eaton M847724-12FS Panel Enclosure - NEMA 12
Part Number: M847724-12FS
Quick Summary
Eaton M847724-12FS panel enclosure is a rugged NEMA 12 solution designed to protect industrial control panels in harsh environments. This design addresses ingress, dust, and oil exposure that routinely disrupts uptime and maintenance budgets. With UL 508A, CSA C22.2, and NEMA ratings backing its compliance, the enclosure delivers verified protection for electrical systems in demanding facilities. The ground-mount configuration, 3-pt latching handle, and key lock provision enhance security and ease of service, while the carbon steel construction and ANSI 61 gray finish support long-term reliability and consistent cabinet integration with existing B-Line components.
Product Information
Extended Description
M847724-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 84" height, 24" length, 77" width, NEMA 12, Hinged cover, M12FS enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
M847724-12FS
UPC
782051482607
Product Length/Depth
24 in
Product Height
84 in
Product Width
77 in
Product Weight
854.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
M12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: NEMA 12 rated enclosure, UL 508A and CSA C22.2 certified, with 84 in height, 77 in width, and 24 in depth, in carbon steel with a 12 gauge wall. This combination delivers robust dust and oil protection, reducing downtime and maintenance costs for automated lines in food & beverage, chemical processing, and manufacturing environments. Feature → Business Impact → Application: Ground mounting with a large double door hinged cover and 3-point latching handle improves access and security, enabling faster panel servicing and controlled entry in high-traffic plant areas. Feature → Business Impact → Application: Oil-resistant gasket and ANSI 61 gray painted finish extend cabinet life in hot, humid, or dirty spaces, lowering replacement cycles and improving compliance in regulated facilities. Feature → Business Impact → Application: Key lock padlock provision adds physical security without compromising inspection workflows, while compatibility with Eaton B-Line series enables seamless integration with existing enclosures and mounting systems. Feature → Business Impact → Application: 84 in height and substantial footprint support centralized control cabinets for process automation, enabling scalable layouts and standardized installations across multiple lines. Industry context and practical notes: installation teams benefit from documented specifications, consistent part naming, and proven performance in environments subject to dust, moisture, and temperature variations, reducing design pauses and RFQ cycles.
Get a Quick Quote for a Eaton M847724-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton M847724-12FS?
Enquire Now
FAQs
The M847724-12FS is a ground-mounted panel enclosure designed for robust outdoor and indoor installations. It features no internal mounting provisions, so you should plan floor anchoring or reinforced mounting in the facility to achieve a secure, vibration-resistant setup. Ensure adequate clearance for door swing, service access, and wiring entry while maintaining compliance with NEMA 12 applications.
This Eaton enclosure carries UL 508A and CSA C22.2 certifications with a NEMA 12 rating, confirming suitability for dusty and lightly oily environments. These certifications support regulatory compliance, safer electrical installations, and easier vendor qualification for industrial control panels across manufacturing, process, and utility sectors.
Yes. The enclosure uses carbon steel with a 12 gauge wall, oil-resistant gasket, and ANSI 61 gray painted finish designed to resist ingress of dust and oil. Its NEMA 12 rating specifically targets dusty and non-weatherproof indoor spaces, delivering reliable protection while keeping interior components clean and accessible for maintenance.
Security is provided by a key lock padlock provision and a 3-point latching handle, which together minimize unauthorized access while allowing quick service by authorized personnel. The large double-door design also simplifies visual inspection and component replacement without compromising security.
The M847724-12FS offers long service life thanks to carbon steel construction, a durable finish, and a gasket that resists oil ingress. Its compatibility with Eaton B-Line systems aids standardized installations, reducing spares inventory and commissioning time. Over the life of a control system, this translates to lower maintenance costs and more predictable downtime profiles.
