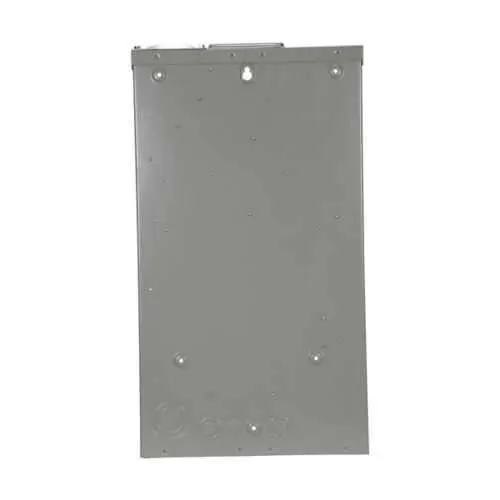

Eaton MB1224B100BTS Residential Meter Breaker - UL Listed
Part Number: MB1224B100BTS
Quick Summary
MB1224B100BTS is a residential meter breaker that protects home electrical service during overloads. Installers often struggle with space constraints and compatibility in meter-main assemblies. UL Listed and MEG utility approvals accompany this unit, supporting code compliance and project acceptance. Designed for ease of installation, it integrates a BR2100 main and BR breakers in a single enclosure. With a robust 10-year warranty and NEMA 3R rating, it delivers reliable service for residential and multi-dwelling installations. This all-in-one solution reduces cabinet depth, simplifies wiring, minimizes fault-prone connections, and improves maintenance planning for electrical contractors and facility managers. Its compatibility with BR-Series breakers ensures seamless upgrades and ongoing availability of spare parts.
Product Information
Extended Description
MB1224B100BTS Eaton: Eaton Type BR RESI Meter Breaker, BR2100 main brkr, 100A, 120/240V, Ringless, 12 spaces,24 circuits, 10 kAIC, Surface mounting, Box size A, Aluminum bus, OH/UG feed, 4-jaws, 1 socket, #6-250 kcmil line, #14-2/0 AWG grnd, MEG App
Product Name
Eaton residential meter breaker
Catalog Number
MB1224B100BTS
UPC
786680219221
Product Length/Depth
14.31 in
Product Height
25.5 in
Product Width
5.06 in
Product Weight
34 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric)
Interrupt rating
10 kAIC
Box size
A
Enclosure
NEMA 3R
Ground
#14-2/0 AWG
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Used with
Type BR breakers
Number of circuits
24
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
BR2100
Number of jaws
Four-jaw
All-in-one meter-main integration delivers a compact, space-saving solution that reduces cabinet depth and wiring complexity, translating into faster field installs and lower labor costs. Business impact: accelerated project timelines and improved site safety from fewer terminations. Application: ideal for new builds and retrofit upgrades in single-family homes and small multi-dwelling projects. Durability and protection are delivered by a 10 kAIC interrupt rating and a NEMA 3R enclosure, ensuring reliable fault containment and outdoor suitability. Business impact: enhanced system reliability and lower service interruptions, especially in outdoor installations. Application: outdoor meter-main assemblies with top/bottom feed and surface mounting in varied environments. Installation flexibility is strengthened by an aluminum bus, four-jaw design, and 12-space/24-circuit layout, enabling straightforward wire routing and component sourcing. Business impact: reduced inventory complexity and faster commissioning for distributors and contractors. Application: BR RESI installations requiring BR2100 main compatibility and seamless BR-series expansion. A 100 A main breaker combination supports scalable service upgrades with MEG utility approvals, aiding regulatory compliance and project acceptance. Business impact: smoother permit approvals and long-term maintenance planning. Application: regulated utility service upgrades and residential modernization projects.
Get a Quick Quote for a Eaton MB1224B100BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB1224B100BTS?
Enquire Now
FAQs
MB1224B100BTS is designed to integrate with Eaton Type BR RESI meters and BR2100 main breakers. Begin by confirming the panel is rated for 120/240 V single-phase service, then align the BR2100 main with the 12-space/24-circuit interior. Use the top/bottom feed provisions, secure the aluminum bus, and ensure proper grounding with #14-2/0 AWG as specified. Following the manufacturer’s wiring diagram reduces installation errors and improves service reliability.
Key specs include 100 A main, 120/240 V, single-phase, 24 circuits across 12 spaces, 10 kAIC interrupt rating, aluminum bus, four-jaw construction, surface mounting, and a NEMA 3R enclosure. It uses a BR2100 main and is compatible with BR-series breakers. The unit supports top or bottom feed and provides a UL Listed certification for code compliance.
Yes. MB1224B100BTS carries MEG utility approvals, which aligns with Duke Energy, Florida Power, Tampa Electric, and other MEG-participating utilities. This simplifies utility coordination and project acceptance in states where MEG approval is recognized, improving permit readiness and reducing back-end approval timelines.
The unit is UL Listed, confirming compliance with recognized safety standards. It features a 10 kAIC interrupt rating for robust fault protection, a NEMA 3R enclosure for weather resistance, and aluminum bus construction for lightweight durability. These certifications and protections help ensure safe operation in residential service equipment and outdoor installations.
With a 10-year warranty, MB1224B100BTS reduces total cost of ownership by limiting replacement cycles and repair downtime. Its all-in-one design minimizes wiring complexity, and its compatibility with BR-series breakers simplifies spare parts availability. Regular inspections focusing on connections and grounding maintain peak performance and service continuity for homeowners and property managers.
