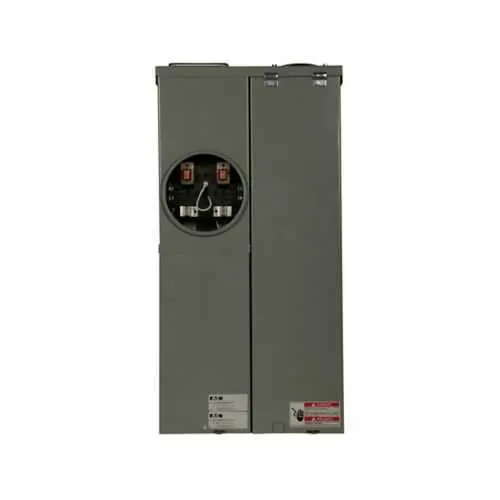

Eaton MB48B200BTS Meter Breaker - 10 kAIC
Part Number: MB48B200BTS
Quick Summary
MB48B200BTS is a residential meter breaker providing integrated metering and protection for 120/240 V single‑phase service. Contractors and engineers often contend with bulky assemblies, mismatched components, and extended commissioning times when meters, lugs, and protection devices are sourced separately. This unit carries UL Listed certification and a NEMA 3R outdoor enclosure, plus a 10‑year warranty and a 10 kAIC interrupt rating for robust fault management. By consolidating functions into one enclosure, it streamlines installation, reduces wiring complexity, and supports faster utility approvals. In power distribution for homes and light commercial sites, it delivers reliability, simpler maintenance, and a lower total cost of ownership.
Product Information
Extended Description
MB48B200BTS Eaton: Eaton resi meter breaker, feed through lugs, All-in-ones, 200A, A, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm10 kAIC, #6-350 kcmCSR2200, Surface mounting, 8, Four-jaw, 1, 4, Single-phase, Ring style, Used with BR breakers,120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB48B200BTS
UPC
782114872499
Product Length/Depth
5.38 in
Product Height
28.38 in
Product Width
14.44 in
Product Weight
36.4 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
ME : Central Maine Power NC : Dominion VA : Dominion
Interrupt rating
10 kAIC
Box size
A
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Number of circuits
8
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
CSR2200
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB48B200BTS
All-in-one design reduces installation steps and space by integrating meter, feed-through lugs, and main protection into a single enclosure, cutting labor time and minimizing field connections for faster commissioning. The 10 kAIC interrupt rating enhances fault tolerance, supporting safer service restoration during short-circuits while meeting utility requirements for residential service entrances. A rugged NEMA 3R outdoor enclosure combined with surface mounting and top/bottom feed delivers reliable operation in exposed environments, reducing weather-related maintenance and ensuring code compliance in diverse installation sites. Aluminum bus and four-jaw lugs provide robust, corrosion-resistant connections suitable for #6-350 kcmil grounds, improving long-term reliability and reducing rework due to poor grounding. Compatibility with BR breakers simplifies stocking, while UL Listed certification and a 10-year warranty offer strong total-cost-of-ownership advantages for utilities and contractors alike. The compact box size A optimizes space in tight meter locations without sacrificing accessibility for service upgrades and routine inspections.
Get a Quick Quote for a Eaton MB48B200BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB48B200BTS?
Enquire Now
FAQs
MB48B200BTS is designed as an all-in-one residential meter breaker and is specified to work with BR breakers and common residential panels. It supports 120/240 V single-phase service, eight circuits, and top/bottom feed, enabling straightforward replacement or integration in existing BR-based metering installations. The four-jaw grounding and aluminum bus ensure solid, code-compliant connections, reducing rework during retrofit projects.
This unit delivers 120/240 V single-phase operation with eight circuits and a 10 kAIC interrupt rating, suitable for typical residential feeder protection and metering. It uses aluminum bus construction, top and bottom feed options, and #6-350 kcmil grounding conductors. The enclosure is NEMA 3R, providing outdoor protection, and the assembly is UL Listed for safety compliance.
Yes, MB48B200BTS is designed for outdoor or semi-outdoor installations thanks to its NEMA 3R enclosure. This rating protects against rain and corrosion in typical outdoor meter environments. With surface mounting and top/bottom feed capability, it is suited for exterior meter bases and weather-exposed service entrances.
The all-in-one design reduces component count, which shortens installation time and minimizes wiring errors. By combining metering, lugs, and protection in one enclosure, electricians can streamline approvals and commissioning, especially in tight meter spaces. The unit’s compact dimensions and standard 120/240 V single-phase compatibility further simplify planning and on-site execution.
MB48B200BTS carries UL Listed certification and a 10-year warranty, signaling long-term reliability and compliance with industry standards. The NEMA 3R enclosure, 10 kAIC rating, and utility-approval compatibility (where applicable) support safe operation across residential and light commercial metering applications.
