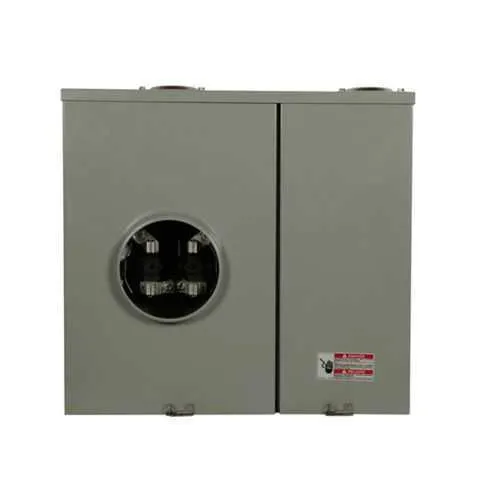

Eaton MB48B200BTSG Residential Meter Breaker - UL Listed
Part Number: MB48B200BTSG
Quick Summary
Eaton MB48B200BTSG residential meter breaker is a combined metering and protection device for residential service entrances. Installing separate meters and feeders can clutter panels and slow commissioning; this all-in-one unit simplifies installation and reduces space. This system is UL Listed, Georgia Power approved, and features a NEMA 3R enclosure, ensuring durable performance in outdoor and harsh environments. Designed for residential metering products and distribution panels, it supports top/bottom feed and aluminum bus, delivering reliable metering and protection while meeting utility requirements. In one compact unit you gain installation efficiency, compliance confidence, and long-term reliability for utility-grade residential power distribution.
Product Information
Extended Description
MB48B200BTSG Eaton: Eaton resi meter breaker, Georgia Power, All-in-ones, 200 A, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm10 kAIC, #6-350 kcmCSR, Surface mounting, 8, Four-jaw, 1, 4, Single-phase, Ringless, GA, Georgia Power, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB48B200BTSG
UPC
786685255552
Product Length/Depth
25 in
Product Height
7 in
Product Width
23.5 in
Product Weight
44 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
GA : Georgia Power
Interrupt rating
10 kAIC
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Number of circuits
8
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
CSR
Number of jaws
Four-jaw
Eaton Emergency Disconnect Options at a Glance
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB48B200BTSG
The MB48B200BTSG combines metering and main protection in a single enclosure, reducing panel space and simplifying wiring, which translates to faster panel upgrades and lower installation labor costs. This all-in-one approach improves reliability by limiting interconnects and minimizing potential loose connections; installers can trust a single, factory-assembled assembly for GA metering projects. The 200 A CSR main breaker delivers robust overload protection, with a 10 kAIC interrupt rating for typical residential fault scenarios, while the aluminum bus and four-jaw design provide durable conductor terminations and secure connections. The NEMA 3R enclosure and surface-mount capability support both indoor and outdoor installations, including Georgia Power metering sites. The unit’s topology minimizes field components, easing commissioning and future service upgrades while maintaining compliance with utility requirements and UL Listings.
Get a Quick Quote for a Eaton MB48B200BTSG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB48B200BTSG?
Enquire Now
FAQs
For best results, mount the unit on a suitable surface, follow top/bottom feed guidance, use aluminum bus connections, and observe Georgia Power metering requirements. Ensure enclosure is protected per NEMA 3R if outdoor.
200 A main circuit breaker (CSR), 120/240 V, 10 kAIC interrupt rating, 8 circuits, aluminum bus, four-jaw, single-phase, 1 socket, feed type top/bottom.
Yes, this product lists GA Georgia Power as a utility approval, confirming compatibility with Georgia Power metering installations.
UL Listed certification, NEMA 3R enclosure rating, and a 10-year warranty; designed to meet residential metering and protection standards.
The all-in-one design reduces panel footprint, wiring complexity, and installation time, delivering faster commissioning, lower labor costs, and improved reliability in utility-grade residential projects.
