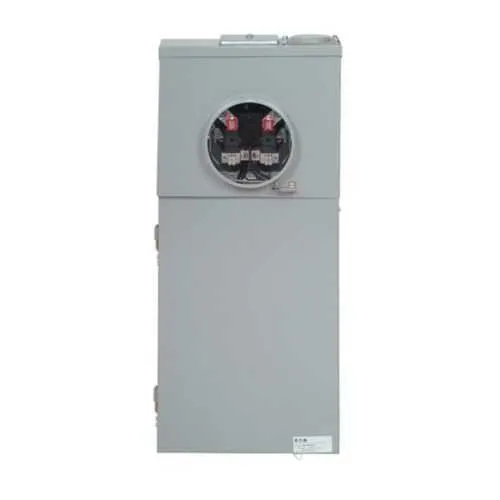

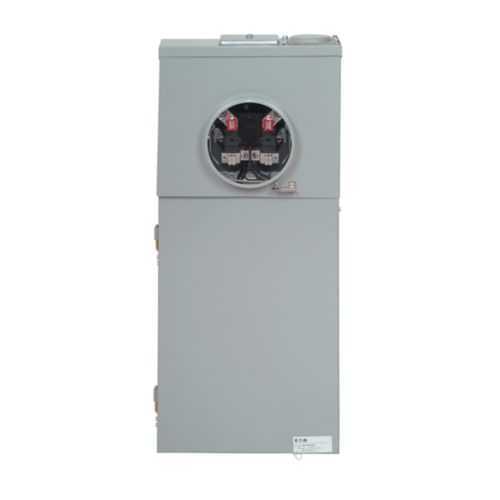

Eaton MB816B200BTS Residential Meter Breaker - UL Listed
Part Number: MB816B200BTS
Quick Summary
Eaton MB816B200BTS residential meter breaker is a versatile service entrance solution for 120/240 V single-phase panels. Installing metering and protection in a single enclosure reduces wiring complexity, labor, and footprint for new builds and retrofit projects. UL Listed safety certification and a NEMA 3R enclosure rating ensure reliable performance in indoor and outdoor environments, while extensive utility approvals support wide deployment. This all-in-one design also aligns with metering product strategies and BR breaker compatibility, delivering installer-friendly equipment with long-term operational value for utilities, contractors, and building owners. The combination of compact footprint and robust construction helps shorten project timelines and improve field reliability.
Product Information
Extended Description
MB816B200BTS Eaton: Eaton resi meter breaker, feed through lugs, All-in-ones, 200 A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm10 kAIC, #6-350 kcmCSR2200, Surface mounting, 16, Four-jaw, 1, 8, Single-phase, Ringless, Used with BR breakers, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB816B200BTS
UPC
782114858615
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
40.62 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
ME : Central Maine Power NC : Dominion VA : Dominion MO : Empire District Electric OK : Empire District Electric AR : Entergy LA : Entergy MS : Entergy TX : Entergy MD : First Energy (Potomac Edison) VA : First Energy (Potomac Edison) WV : First Energy (Mon Power) NJ : First Energy (Jersey Central Power and Light) OH : First Energy (Ohio Edison, Toledo Edison, The Illuminating Company) PA : First Energy (Allegheny Power, MET ED, Penelec, West Penn Power) FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NY : Rochester Gas & Electric (RG&E) AL : Alabama Power
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
CSR2200
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816B200BTS
All-in-one metering, feed-through lugs, and a main CSR2200 breaker streamline panel design, cutting hardware count and installation steps. This consolidation reduces field labor and potential miswiring, enabling faster commissioning for new homes or light commercial installations. The 16 circuit capacity and 200 A main rating support complex residential distribution while preserving compact footprint, which translates to measurable space savings and easier code compliance during inspections. Aluminum bus material minimizes weight without sacrificing conductivity, improving ease of handling on site and reducing overall installation time. Top/bottom feed and surface mounting provide flexible mounting options, simplifying retrofits in existing panels and enabling clean, service-entrance layouts. Four-jaw grounding and #6-350 kcmil grounding lugs enhance safety and reliability in diverse environments. The enclosure’s NEMA 3R rating protects against rain, dust, and corrosion, ensuring dependable operation in outdoor installations, while a 10 kAIC interrupt rating delivers robust short-circuit protection for typical residential feeders. Compatibility with BR breakers helps avoid costly bus substitutions, validating a seamless transition for projects leveraging legacy BR-based systems. A 10-year warranty reinforces life-cycle value by reducing maintenance concerns and total cost of ownership.
Get a Quick Quote for a Eaton MB816B200BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816B200BTS?
Enquire Now
FAQs
MB816B200BTS is designed to work with BR breakers, enabling seamless integration in existing BR-based service entrance installations. The unit supports a four-jaw main assembly and top/bottom feed, allowing straightforward retrofits and minimizing the need for additional adapters or bus changes. This compatibility reduces downtime and procurement complexity on site.
Key specs include 200 A main rating, 16 circuits, 120/240 V single-phase, aluminum bus, four-jaw grounding, top/bottom feed, and a 10 kAIC interrupt rating. Grounding is through #6-350 kcmil, and the enclosure is NEMA 3R. The unit is UL Listed and intended for surface mounting, making it suitable for a wide range of residential service entrances.
Yes. The MB816B200BTS uses a NEMA 3R enclosure, which provides weather, dust, and corrosion resistance suitable for outdoor service entrances. This rating, combined with UL Listed certification, ensures reliable performance in exposed environments for long service life.
In addition to UL Listed safety certification, the unit is designed to meet broad utility approvals and is compatible with common residential service entry requirements. Utilities such as MEG and various state programs have documented approvals for similar Eaton metering products, facilitating acceptance in diverse markets and simplifying procurement for utility-owned or customer-installed applications.
The MB816B200BTS consolidates metering, lugs, and main protection into a single enclosure, reducing parts counts and installation time. This translates to lower labor costs, faster project completion, and fewer field errors. A 10-year warranty adds long-term protection, while UL and NEMA 3R ratings enhance reliability, reducing maintenance frequency and lifecycle costs in both new construction and retrofit projects.
