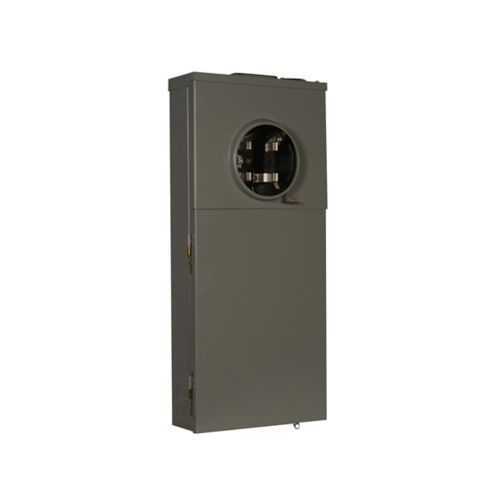

Eaton MB816B200BTSD Meter Breaker - UL Listed
Part Number: MB816B200BTSD
Quick Summary
Eaton residential meter breaker is a single-unit solution that combines metering and circuit protection for residential service entrances. This compact all-in-one design helps simplify installations where space is at a premium and wiring complexity must be minimized. For engineers facing tight electrical rooms or outdoor setups, the 10 kAIC interrupt rating and NEMA 3R enclosure offer critical resilience and safety. With UL Listed certification and a 120/240 V, single-phase configuration, this MB816B200BTSD supports reliable metering integration across multi-circuit panels. By leveraging Eaton metering products, contractors can streamline procurement, improve compatibility with top and bottom feed, and reduce field labor costs while maintaining compliance.
Product Information
Extended Description
MB816B200BTSD Eaton: Eaton resi meter breaker, All-in-ones, 200A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm10 kAIC, #6-350 kcmBW2200, Surface mounting, 16, Five-jaw, 1, 8, Single-phase, Ringless, 120/240 Vac, Horn bypass
Product Name
Eaton residential meter breaker
Catalog Number
MB816B200BTSD
UPC
782116938193
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
40 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
IA : Alliant (IP&L and WP&L) WI : Alliant (IP&L and WP&L)
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bypass
Horn
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
BW2200
Number of jaws
Five-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816B200BTSD
Feature: All-in-one residential meter breaker with a 200 A main and 16 circuits. Benefit: Reduces hardware count and saves space, speeding up project timelines for service entrances in single-family and multi-family installations. Application: Ideal for compact residential panels where reliability and integrated metering are required. Feature: Aluminum bus, five-jaw connections, top/bottom feed, surface mounting. Benefit: Improves wiring integrity and simplifies installation in tight spaces, lowering field rework and maintenance. Application: Replacement or new-build panels that demand robust, corrosion-resistant conductors and flexible routing. Feature: NEMA 3R enclosure with UL Listed status and 10 kAIC interrupt rating. Benefit: Delivers outdoor-ready protection and high fault-current resilience, reducing risk and compliance concerns. Application: Outdoor meter mains, basements, or weather-exposed service entries. Feature: Ground conductor support up to #6-350 kcmil and BW2200 main circuit details. Benefit: Ensures scalable grounding and clear main protection, supporting diverse utility requirements. Application: Commercial-residential hybrids and multi-circuit metering projects with standardized components. Feature: 120/240 V single-phase operation and 1 socket configuration. Benefit: Simplifies utility connections and minimizes miswiring, accelerating commissioning. Application: Standard residential service upgrades and metering installations within single-phase feeders.
Get a Quick Quote for a Eaton MB816B200BTSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816B200BTSD?
Enquire Now
FAQs
MB816B200BTSD is designed for surface-mounted residential service entrances and meter-main installations. It supports top and bottom feed, 120/240 V single-phase operation, and 16 circuits with a 200 A main, making it ideal for tight electrical rooms and multi-family dwellings where meter protection and metering must be combined in one unit.
The unit features a 10 kAIC interrupt rating and a 120/240 V voltage rating, single-phase. This combination provides robust fault interruption for typical residential service currents, UL Listed reliability, and confidence in meeting code requirements for modern residential and light commercial installations.
Yes. The MB816B200BTSD is an all-in-one meter breaker designed for service entrances and meter-main configurations. It consolidates metering and protection in one enclosure, reducing the need for separate meter sockets and main breakers, which accelerates installation and minimizes wiring mistakes in new builds and renovations.
This Eaton unit is UL Listed and housed in a NEMA 3R enclosure, making it suitable for outdoor and semi-exposed environments. The 10 year warranty reinforces long-term reliability, while the UL listing helps ensure compliance with electrical standards in residential and light commercial projects.
By combining metering and protection in a single unit, MB816B200BTSD reduces parts, connectors, and field labor, shortening commissioning times. Its durable aluminum bus, NEMA 3R enclosure, and 10 kAIC rating contribute to lower maintenance costs and longer service life, delivering tangible lifecycle savings for utilities and contractors alike.
