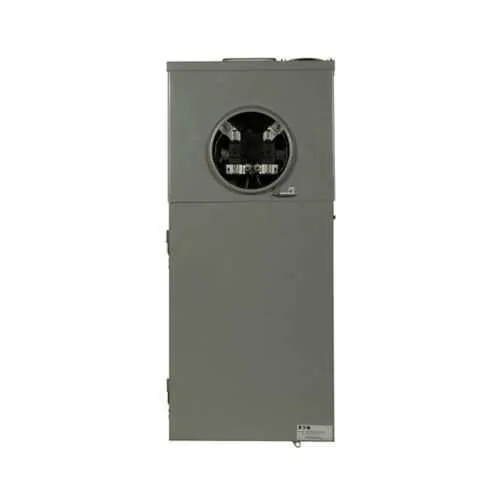

Eaton MB816B200BTSV Meter Breaker - UL Listed 10 kAIC
Part Number: MB816B200BTSV
Quick Summary
Eaton residential meter breaker delivers integrated metering and overcurrent protection for single-phase residential service panels. Installing separate metering and protection can waste space, complicate wiring, and slow code compliance. UL Listed provides verified safety and reliability for residential installations, while the NEMA 3R enclosure supports surface mounting in indoor or protected outdoor locations. This all-in-one solution reduces field labor, streamlines procurement, and helps contractors meet timing goals on residential metering projects. Designed for 120/240 V systems with aluminum bus and 200 A capacity, it pairs with BD115, BR115, and BR230 breakers for scalable protection. Its 10-year warranty and UL listing support long-term performance with minimal maintenance.
Product Information
Extended Description
MB816B200BTSV Eaton: Eaton resi meter breaker, VP with (2) BD115, (2) BR115 and (1) BR230 breakers, All-in-ones, 200A, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm10 kAIC, #6-350 kcmil, Surface mounting, 16, Four-jaw, 1, 8, Single-phase, Ringless, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB816B200BTSV
UPC
782116094851
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
44 lb
Warranty
10 year
Certifications
UL Listed
Special features
Value pack with (2) BD115, (2) BR115 and (1) BR230 breakers
Type
All-in-ones
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
BW2200
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816B200BTSV
MB816B200BTSV combines metering and main protection into a single enclosure for residential service entrances, a common requirement in new builds and service upgrades. The all-in-one design reduces space and wiring complexity by integrating a productive metering module with the main protection, enabling quicker panel assembly and fewer field joints. This configuration supports single-phase, 120/240 V systems and is ideal for residential metering equipment that pairs with standard BD115, BR115, and BR230 breakers. The included value pack delivers a complete protection set: two BD115, two BR115, and one BR230 breakers, eliminating part shortages and minimizing installation delays. With a 200 A main capacity and aluminum bus, installers gain reliable current handling while maintaining a sleek footprint. The four-jaw design simplifies conductor termination, and surface mounting supports a variety of installation layouts. Efficient service requires robust protection; MB816B200BTSV offers a 10 kAIC interrupt rating to handle typical residential fault currents and minimize upstream disturbances. Its NEMA 3R enclosure provides weather resistance for surface-mounted installations in protected outdoor or indoor environments, supporting top and bottom feed configurations. The unit also accommodates #6-350 kcmil ground connections and #6-350 kcmil feeder conductors, aligning with common feeder sizes. From a compliance and lifecycle perspective, UL listing confirms safety and reliability across installation crews, while the 10-year warranty adds predictable maintenance budgeting. The aluminum bus material reduces weight without compromising current-carrying capacity, a practical advantage for field crews carrying and aligning components. Overall, the MB816B200BTSV delivers a scalable, space-efficient solution for residential meter-main applications. For engineers and procurement teams, compatibility with Eaton's metering catalog simplifies purchasing and stocking, and the all-in-one approach reduces vendor coordination. When evaluating job sites, consider surface-mount, top/bottom feed layouts, NEMA 3R suitability, and 200 A service needs—this product aligns with those requirements while delivering faster commissioning.
Get a Quick Quote for a Eaton MB816B200BTSV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816B200BTSV?
Enquire Now
FAQs
MB816B200BTSV is designed for single-phase 120/240 V service entrances and mounts in a standard residential panel. It combines metering and main protection in one enclosure, uses a four-jaw aluminum bus, and supports top/bottom feed. Ensure compatibility with BD115, BR115, and BR230 breakers and follow local code requirements for meter-main installations. Proper torque on ground and feeder connections is essential for reliable operation.
Key specs include 200 A main capacity, 120/240 V operation, aluminum bus, four-jaw termination, and a 10 kAIC interrupt rating. The unit ships with a value pack of BD115, BR115, and BR230 breakers, and it has a UL Listed certification and a NEMA 3R enclosure, making it suitable for indoor and protected outdoor installations.
Yes, the MB816B200BTSV uses a NEMA 3R enclosure, which provides weather resistance for surface-mounted installations in indoor or protected outdoor locations. Always verify site conditions and follow enclosure protection guidelines to ensure safe operation in wet or corrosive environments.
The MB816B200BTSV is UL Listed, ensuring conformity to safety standards for residential electrical equipment. It features a NEMA 3R enclosure for environmental protection and a 10-year warranty that supports long-term maintenance planning. No CE rating is listed for this model in the provided data.
The all-in-one design reduces required space and wiring complexity, lowers field labor, and minimizes parts inventories by including a complete breaker set. UL listing and a robust 200 A capacity support reliable performance, enabling faster commissioning and predictable project timelines for residential meter mains and service panel upgrades.
