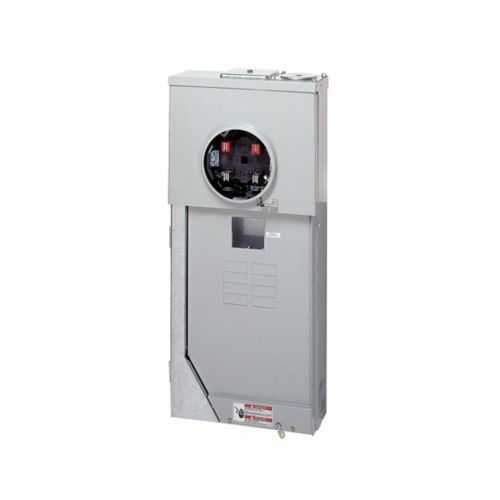

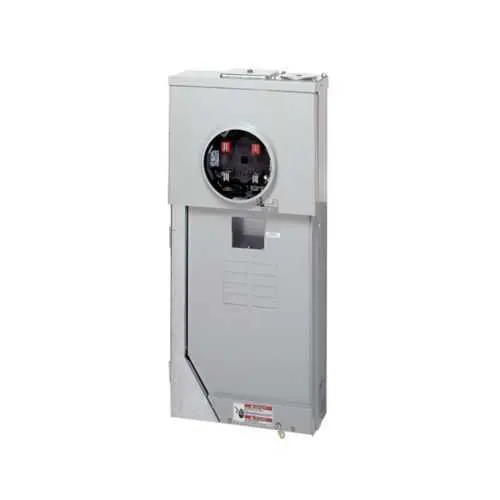

Eaton MB816P200BTS Residential Meter Breaker - UL Listed
Part Number: MB816P200BTS
Quick Summary
MB816P200BTS residential meter breaker from Eaton protects and meters service entrances in residential panels while consolidating multiple functions into a single enclosure. Engineers and procurement teams often wrestle with delivering accurate metering, reliable protection, and straightforward installation, all while meeting evolving utility and code requirements. This unit is UL Listed and housed in a rugged NEMA 3R enclosure, backed by a 10-year warranty and MEG utility approvals that support regional deployment. With a 200 A main capacity, top and bottom feed options, aluminum bus, and four-jaw ground connections, it enables faster installation and safer service with reduced panel complexity. For modern homes and small commercial applications, it delivers a streamlined, compliant metering protection solution.
Product Information
Extended Description
MB816P200BTS Eaton: Eaton resi meter breaker, feed through lugs, All-in-ones, 200 A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm#6-350 kcmProvisions, Surface mounting, 16, Four-jaw, 1, 8, Single-phase, Ringless, Used with BR breakers, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB816P200BTS
UPC
782114860076
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
35 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
AL : Alabama Power FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric)
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816P200BTS
All-in-one design consolidates meter socket, protection, and feeders into a single enclosure, reducing panel count and field wiring time, which translates to lower labor costs and faster project completion. This directly improves installation efficiency, supports tighter project schedules, and enhances site safety by minimizing junctions and potential fault points. The business impact is measurable—faster commissioning, easier maintenance, and a smaller footprint in service entrances, all while preserving metering accuracy through a matched protection strategy. Application: ideal for residential meter protection and light commercial service drops where space is at a premium and documentation integrity is critical for utilities and inspectors. Long-tail keywords: residential meter breaker with through-feed lugs, metering product integration, compact metering solutions, single enclosure protection, field-installable al bus systems.
Get a Quick Quote for a Eaton MB816P200BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816P200BTS?
Enquire Now
FAQs
MB816P200BTS combines metering functionality with protective interrupting capability in a single enclosure designed for residential service entrances. It supports top and bottom feed configurations, four-jaw grounding, and #6-350 kcmil ground conductors, making it compatible with many common residential panel footprints. For retrofit projects, verify available space, enclosure size, and utility approval requirements for seamless integration.
This unit offers a 10 kAIC interrupt rating and a 120/240 V single-phase specification, which provides robust protection for typical residential service drops and small commercial feeders. The higher interrupt rating helps withstand short-circuit events without device damage, supporting safer downstream equipment and reduced fault propagation in the panel, while maintaining reliable metering accuracy.
Yes, the MB816P200BTS is designed for outdoor readiness, featuring a NEMA 3R enclosure suitable for surface mounting. This rating accommodates exposure to weather and humidity typical of exterior service entrances, helping maintain performance and longevity in diverse environments while meeting code requirements for outdoor metering protection.
The unit carries MEG utility approvals that cover several regions, including Alabama, Florida, Indiana, Kentucky, North Carolina, Ohio, and South Carolina, aligning with program requirements for metering and service equipment. This can streamline utility compliance steps, reduce installation risk, and expedite project approvals when these regions are part of the project scope.
Eaton provides a 10-year warranty on the MB816P200BTS, reflecting confidence in its long-term performance and durability. For maintenance, rely on UL-listed construction and the rugged NEMA 3R enclosure to minimize corrosion and weather-related wear. Routine inspection of lugs, grounding connections, and feed integrity is recommended to sustain metering accuracy and protection performance.
