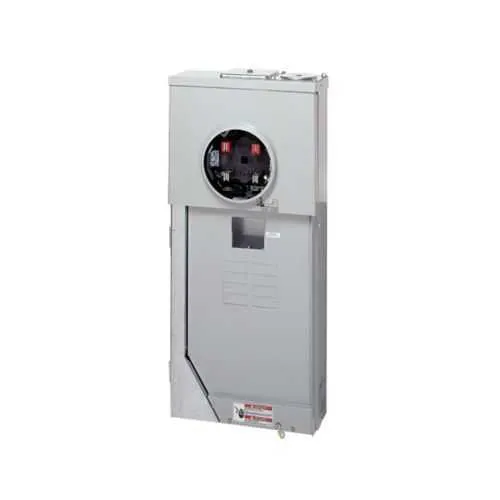

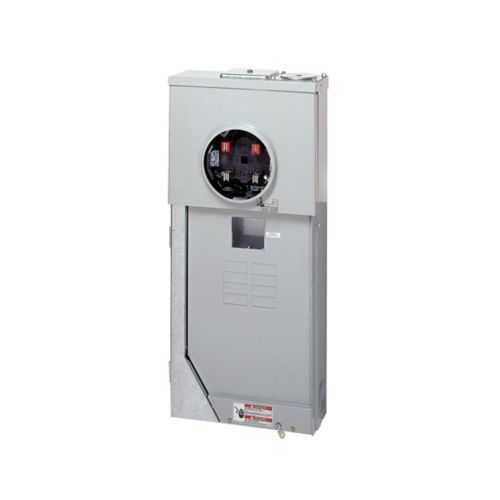

Eaton MB816P200BTSD Residential Meter Breaker - UL Listed
Part Number: MB816P200BTSD
Quick Summary
MB816P200BTSD residential meter breaker is a compact, all-in-one solution that combines metering, distribution, and protection for modern residential service entrances. Engineers often face crowded panels and wiring complexity that slow commissioning; this unit reduces components and simplifies installation workflows. The product carries UL Listed certification and is designed for outdoor readiness with a NEMA 3R enclosure, while the aluminum bus and 120/240 V single-phase operation support reliable service. With 200 A capacity and 16 circuits, plus a 10-year warranty, MB816P200BTSD adds value through simplified procurement and durable metering protection for residential projects, aligning with common metering equipment needs and low-voltage power distribution strategies.
Product Information
Extended Description
MB816P200BTSD Eaton: Eaton resi meter breaker, Feed through lugs, All-in-ones, 200A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm#6-350 kcmProvisions, Surface mounting, 16, Five-jaw, 1, 8, Single-phase, Ringless, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MB816P200BTSD
UPC
782114887714
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
42 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bypass
Horn
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Five-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816P200BTSD
Feature: All-in-one meter breaker with 200 A capacity and 16 circuits. Business Impact: reduces parts count, minimizes field wiring, and shortens commissioning windows. Application: ideal for residential service entrances and meter centers requiring compact, centralized protection. Feature: Aluminum bus and top/bottom feed with five-jaw connectors. Business Impact: improves durability and wiring flexibility, lowering maintenance and re-termination risk. Application: outdoor and indoor installations where space and reliability matter. Feature: NEMA 3R enclosure with surface mounting capability. Business Impact: enables outdoor-ready installations and protective housing for metering equipment, reducing enclosure sourcing complexity. Application: harsh or variable environments typical of outdoor service points. Feature: 10 kAIC interrupt rating and UL Listed certification. Business Impact: enhances short-circuit protection, regulatory compliance, and safety across residential metering projects. Application: main/branch protection for meters and service equipment. Feature: Grounding and conductor capacity including #6-350 kcmil range. Business Impact: supports robust grounding and high-capacity conductors, reducing rework during panel upgrades. Application: metering centers and service equipment requiring strong grounding and wide conductor options.
Get a Quick Quote for a Eaton MB816P200BTSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816P200BTSD?
Enquire Now
FAQs
MB816P200BTSD supports top and bottom feed configurations, allowing flexible wiring layouts in single- and multi-meter environments. The five-jaw design and aluminum bus simplify terminations, reduce field rework, and help installers adapt to existing service panel footprints without compromising protection or performance.
Key specs include 200 A current rating, 120/240 V voltage rating, single-phase operation, 10 kAIC interrupt rating, and 16 total circuits. The unit uses aluminum bus, features all-in-one metering and protection, and comes in a NEMA 3R outdoor-ready enclosure with UL Listed certification.
Yes. MB816P200BTSD is designed for outdoor service points with a NEMA 3R enclosure and UL Listed certification, delivering weather-resistant protection and reliable metering in exterior installations. It combines metering, distribution, and protection in one enclosure to simplify outdoor installations.
The MB816P200BTSD carries UL Listed certification and is built for rugged residential metering environments. It also provides a 10-year warranty, offering long-term assurance on performance, durability, and maintenance planning for metering equipment investments.
Focus on leveraging the all-in-one design to reduce parts and labor, use the top/bottom feed capability to match service routing, and take advantage of the aluminum bus for corrosion resistance and ease of termination. The 16-circuit capacity supports future expansion, reducing the need for panel upgrades and lowering life-cycle costs.
