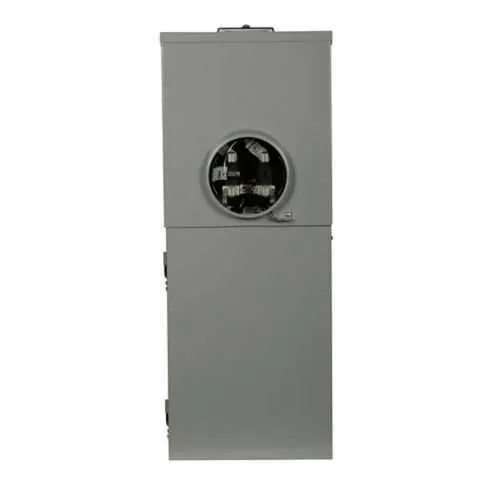

Eaton MB816P200STD Residential Meter Breaker - UL Listed
Part Number: MB816P200STD
Quick Summary
The Eaton residential meter breaker provides reliable short-circuit protection for metering installations in multifamily and light commercial settings. Engineers often struggle with mounting fit in compact enclosures and coordinating feeder configurations with existing service equipment. UL Listed safety certification, a NEMA 3R enclosure rating, and a robust 10-year warranty help ensure long-term compliance and uptime. By combining metering and protection in a single unit, it reduces part count and shipping costs while simplifying field installation. This makes it a strong choice for contractors and facilities managers seeking reliable, code-compliant metering protection with scalable capacity. Industry teams value the proven Eaton engineering behind rapid service in the field and predictable performance across project scales.
Product Information
Extended Description
MB816P200STD Eaton: Eaton resi meter breaker, feed through lugs, All-in-ones, 200A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm#6-350 kcmProvisions, Surface mounting, 16, Five-jaw, 1, 8, Single-phase, Ringless, 120/240 Vac, Horn bypass
Product Name
Eaton residential meter breaker
Catalog Number
MB816P200STD
UPC
782114668894
Product Length/Depth
5.38 in
Product Height
36.63 in
Product Width
14.44 in
Product Weight
40.9 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
WI : WE Energies / Wisconsin Public Service (WPS)
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bypass
Horn
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Five-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MB816P200STD
Feature: 200 A main rating with 16 circuits in an all-in-one residential meter breaker. Benefit: Reduces panel footprint and procurement complexity, delivering space savings and simpler ordering for new installs and retrofits. Application: Ideal for residential meter-base installations that require compact, integrated protection with metering functionality. Feature: Top/bottom feed and #6-350 kcmil grounding options. Benefit: Flexible wiring configurations and robust fault paths, enabling faster commissioning and future expansion. Application: Multi-tenant or mixed-use projects where feeder arrangements change over time. Feature: NEMA 3R weather-rated enclosure with surface mounting. Benefit: Outdoor-ready protection lowers installation costs and enhances reliability in harsh environments. Application: Outdoor metering enclosures and service entrances. Feature: Aluminum bus, five-jaw design, and multiple termination points. Benefit: Lightweight handling, secure terminations, and reduced voltage drop across terminations. Application: Efficient field wiring and dependable performance in compact panels. Feature: 10-year warranty and UL Listed with Wisconsin utility approvals. Benefit: Strong supplier support and regulatory acceptance for metering projects, reducing risk and downtime. Application: Procurement for utility-interfaced metering installations and code-compliant deployments. Feature: 120/240 V single-phase operation, 10 kAIC interrupt rating, 16 circuits. Benefit: Suitable for typical residential loads with reliable protection and fast fault clearing. Application: Primary protection in residential metering mains and light commercial settings.
Get a Quick Quote for a Eaton MB816P200STD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MB816P200STD?
Enquire Now
FAQs
MB816P200STD supports top and bottom feed, five-jaw aluminum bus, and grounding up to #6-350 kcmil. Its NEMA 3R enclosure and surface-mount design simplify outdoor or utility-area installations while maintaining code compliance. Plan for a compact footprint, ensure adequate clearance for service access, and verify alignment with existing meter bases and lugs before wiring.
Yes. The MB816P200STD is UL Listed and features a NEMA 3R enclosure, making it suitable for outdoor or semi-exposed installations. Its weather-rated housing helps protect internal components from moisture and dust, while maintaining reliable protection for metering and service equipment in variable outdoor conditions.
The unit provides a 200 A main rating and 16 circuits, operates at 120/240 V single-phase, and offers a 10 kAIC interrupt rating. It uses aluminum bus material, supports top/bottom feed, and includes #6-350 kcmil grounding. These specs support residential metering mains and light commercial service applications with robust fault protection.
The MB816P200STD carries a 10-year warranty and UL Listing, signaling long-term reliability and safety compliance. Wisconsin utility approvals (WE Energies / Wisconsin Public Service) further support utility-grade acceptance. This combination reduces lifecycle risk and helps ensure steady performance across project timelines and maintenance cycles.
This product is ideal for residential metering installations and light commercial metering mains needing integrated protection and metering in a single enclosure. It supports outdoor or surface-mounted configurations, top/bottom feed, and scalable 16-circuit capacity, making it suitable for multi-tenant properties, housing developments, and small commercial facilities seeking code-compliant, efficient protection.
