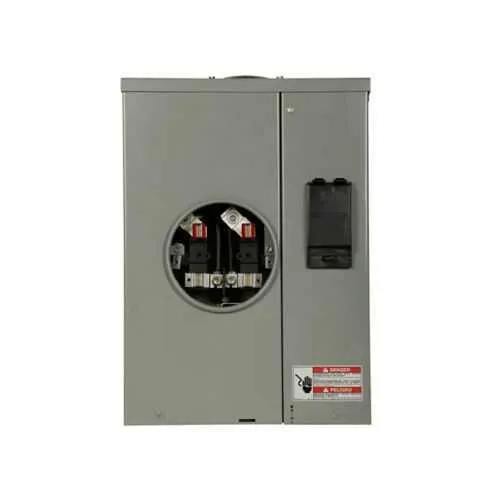

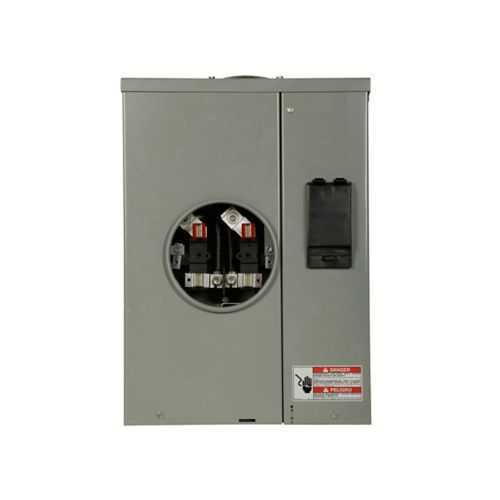

Eaton MBP200BTSCR Meter Breaker - UL Listed 10 kAIC
Part Number: MBP200BTSCR
Quick Summary
MBP200BTSCR is a residential meter breaker engineered to protect single-phase 120/240 V service entrances in homes and small facilities. Retrofit projects in tight meter enclosures often suffer from limited clearance, complicating upgrades and extending downtime. The unit is UL Listed, suitable for NEMA 3R enclosures, and rated at 10 kAIC for robust fault protection. Designed for ease of retrofit, it features a two-cover compact design with four-jaw connections, aluminum bus, and top/bottom feed. This combination supports efficient installation, code-compliant metering, and reduced lifecycle costs for utilities, electrical contractors, and building owners. The product aligns with residential metering best practices, delivering reliable protection without bulky retrofits.
Product Information
Extended Description
MBP200BTSCR Eaton: Type BR Non-EUSERC Retrofit Meter Breaker, Two cover compact design, Provisions, 200A, 120/240V, Ring, Surface mounting, Box size A, Aluminum bus, Overhead/underground feed, Four-jaws, 1 socket
Product Name
Eaton residential meter breaker
Catalog Number
MBP200BTSCR
UPC
782114860168
Product Length/Depth
20.75 in
Product Height
6.5 in
Product Width
14.75 in
Product Weight
28 lb
Warranty
10 year
Certifications
UL Listed
Catalog Notes
No distribution section included. One-piece cover on utility side, Florida approved.
Type
Two cover compact design
Interrupt rating
10 kAIC
Box size
A
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Dimensional Drawing - METER BREAKER WEST COAST STYLE 96-5535
Eaton Specification Sheet - MBP200BTSCR
Two-cover compact design reduces installation footprint and simplifies retrofit handling. This layout minimizes field fabrication and helps technicians fit the unit into limited meter spaces, shortening project timelines and reducing on-site labor. Ideal for residential metering retrofits in boxed enclosures where space is at a premium, this design also supports quicker changeouts during utility upgrades. Four-jaw termination and one socket provide versatile conductor options while maintaining a secure, code-compliant connection; top/bottom feed enables flexible installation in both overhead and underground service setups. Aluminum bus reduces weight and improves corrosion resistance, facilitating easier handling and long-term reliability in demanding environments. UL Listed and NEMA 3R enclosure compatibility ensure outdoor and damp indoor suitability, aligning with modern metering standards and inspection requirements. A 10 kAIC interrupt rating delivers strong short-circuit protection, protecting downstream equipment and reducing fault propagation. Warranty of 10 years adds financial confidence for asset-intensive metering installations. Grounding and grounding conductor range (#6-350 kcmil) support diverse utility and building wiring practices, reducing the need for adapters or field modifications. Overall, the MBP200BTSCR offers a balanced mix of performance, installability, and lifecycle value for residential metering projects and light commercial applications.
Get a Quick Quote for a Eaton MBP200BTSCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MBP200BTSCR?
Enquire Now
FAQs
Yes. The MBP200BTSCR is specified as a Type BR Non-EUSERC retrofit meter breaker, designed for compatibility with standard residential metering configurations and four-jaw connections, enabling straightforward upgrades in existing meter panels.
The unit is a single-phase 120/240 V meter breaker with an interrupt rating of 10 kAIC and UL Listing, providing reliable fault protection for residential service feeds while meeting common metering standards.
Yes. The MBP200BTSCR supports top/bottom feed configurations and is suitable for both overhead and underground service arrangements commonly found in residential metering installations.
It carries UL Listed certification and is designed for NEMA 3R enclosures, making it appropriate for outdoor or damp indoor environments. Florida approval is noted in catalog remarks, supporting local compliance needs.
Eaton provides a 10-year warranty on this meter breaker, offering long-term reliability and reduced maintenance planning for asset-intensive metering projects.
