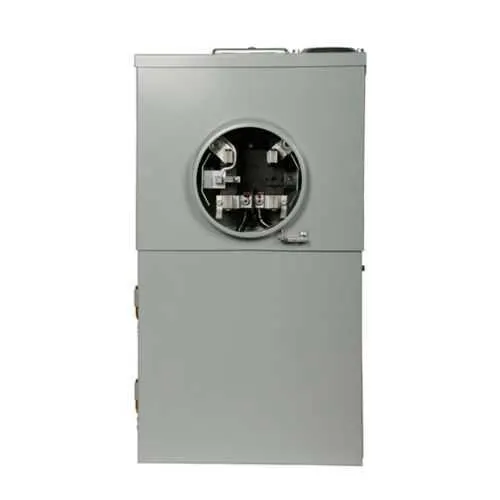

Eaton MBP200BTSD Residential Meter Breaker - UL Listed
Part Number: MBP200BTSD
Quick Summary
The Eaton residential meter breaker is a compact, integrated meter mains solution for single-family service entrances. Installers often struggle with space constraints, wiring complexity, and timely code compliance; MBP200BTSD streamlines installation with surface mounting, top and bottom feed, and a robust enclosure. This unit carries UL Listed certification, a NEMA 3R enclosure for exterior durability, and Florida-approved status for utility and contractor acceptance. Designed to simplify metering while delivering reliable protection, it supports efficient service entrances and future-ready upgrades without sacrificing safety or performance.
Product Information
Extended Description
MBP200BTSD Eaton: Eaton resi meter breaker, Meter mains, 200A, C, Al, NEMA 3R, Bottom and top, #6-350 kcm#6-350 kcmProvisions, Surface mounting, Five-jaw, 1, Single-phase, Ringless, 120/240 Vac, Horn bypass
Product Name
Eaton residential meter breaker
Catalog Number
MBP200BTSD
UPC
782114887707
Product Length/Depth
5.38 in
Product Height
25 in
Product Width
14.44 in
Product Weight
35 lb
Warranty
10 year
Certifications
UL Listed
Catalog Notes
No distribution section included. One-piece cover on utility side, Florida approved.
Type
Meter mains
Utility approvals
PA : PECO Energy
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bypass
Horn
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Five-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MBP200BTSD
Feature: 200 A rating with a 10 kAIC interrupt rating delivers higher fault withstand capability for residential service entrances. Business Impact: Reduces nuisance trips and enhances protection during severe faults, improving reliability for home or small commercial meters. Application: Ideal for single-phase 120/240 V metering points in new builds or retrofit projects. Feature: Top and bottom feed with five-jaw ground connection and #6-350 kcmil acceptance. Business Impact: Flexible wiring options simplify installation and reduce field adapters, cutting labor costs. Application: Covers a wide conductor range for aluminum bus systems in meter mains installations. Feature: NEMA 3R enclosure with surface mounting capability. Business Impact: Outdoor-ready durability and fast, secure mounting mean faster job completion and fewer weather-related concerns. Application: Exterior metering points and guarded utility cabinets in residential projects. Feature: UL Listed and Florida-approved with a one-piece utility-side cover. Business Impact: Strong regulatory confidence and streamlined permit processes for code compliance. Application: Utility-facing installations and contractor-approved metering solutions. Feature: Grounding and protection provisions, including aluminum bus and horn bypass. Business Impact: Reliable fault path management and easy bypass troubleshooting reduce maintenance time. Application: Meter mains configurations where quick bypass testing is beneficial for service restoration. Industry context: This MBP200BTSD aligns with common metering product families and metering standards, supporting compatibility with typical residential panels, meter sockets, and utility requirements.
Get a Quick Quote for a Eaton MBP200BTSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MBP200BTSD?
Enquire Now
FAQs
MBP200BTSD is a meter mains device designed for single-phase 120/240 V service with top and bottom feed and a five-jaw grounding option using #6-350 kcmil conductors. Installers should follow UL listing guidelines, ensure proper grounding, and secure the unit with surface mounting hardware. Verify enclosure rating (NEMA 3R) and Florida approval for outdoor applications.
Key specs include a 200 A rating, 10 kAIC interrupt capacity, 120/240 V operation, single-phase configuration, aluminum bus, five-jaw grounding, and horn bypass. The device is UL Listed and designed for meter mains applications with NEMA 3R enclosure suitable for exposed installations.
Yes. MBP200BTSD is Florida-approved and UL Listed, with a NEMA 3R enclosure for outdoor or utility-side installations. It supports surface mounting and both top and bottom feed, making it well-suited for Florida residential metering configurations and utility acceptance requirements.
MBP200BTSD is primarily designed for residential meter mains. While it provides robust protection and metering integration, for commercial or larger-scale metering you should confirm compatibility with your utility specifications and consider higher ratings or alternative meter mains products tailored to commercial service requirements.
The MBP200BTSD carries a 10-year warranty. Regular maintenance should focus on verifying the enclosure integrity, conducting periodic insulation checks, and ensuring proper grounding and connection integrity of #6-350 kcmil conductors. UL listing and Florida approval support ongoing compliance with applicable codes and utility program requirements.
