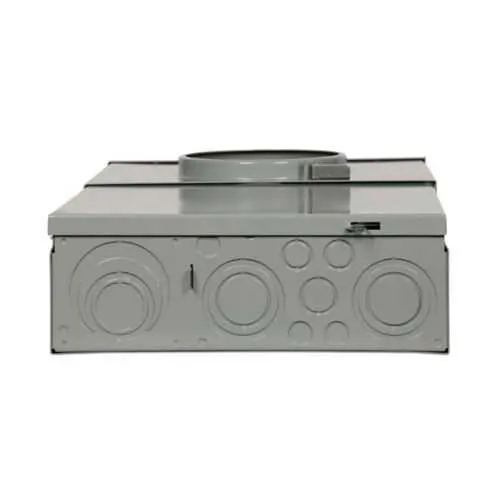

Eaton MBP200BTSG Meter mains - UL Listed
Part Number: MBP200BTSG
Quick Summary
Eaton MBP200BTSG residential meter breaker is a single‑phase meter mains solution designed for 120/240 V residential service. Contractors often struggle with space constraints and wiring complexity in metering installations, making a combined unit highly desirable. This configuration is UL Listed, GA Georgia Power approved, and housed in a rugged NEMA 3R enclosure to withstand outdoor elements and code requirements. With aluminum bus, four‑jaw terminations, and top/bottom feed, installation is straightforward and durable. By integrating metering with main protection, utilities and builders can streamline procurement, reduce field labor, and improve service reliability through a consolidated, compliant protection solution.
Product Information
Extended Description
MBP200BTSG Eaton: Eaton resi meter breaker, Georgia Power approved, Meter mains, 200A, C, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm#6-350 kcmProvisions, Surface mounting, Four-jaw, 1, Single-phase, Ringless, GA, Georgia Power, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
MBP200BTSG
UPC
786685161686
Product Length/Depth
4.94 in
Product Height
30.75 in
Product Width
14.44 in
Product Weight
20 lb
Warranty
10 year
Certifications
UL Listed
Type
Meter mains
Utility approvals
GA : Georgia Power
Interrupt rating
10 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MBP200BTSG
Feature → Business Impact → Application: The MBP200BTSG uses a 200 A rating and a four‑jaw connection to handle full residential service demands, delivering reliable protection while minimizing voltage drop and arc exposure in the main path. This translates to measurable safety and efficiency gains during commissioning and daily operation in single‑phase metering projects. Application: suitable for Georgia Power approved residential metering sites where compact, robust protection is needed at the point of service entry. Feature → Business Impact → Application: NEMA 3R enclosure provides outdoor durability and weather resistance, reducing corrosion risk and service calls in exposed environments. This is critical for multi‑family or single‑family homes located in varied climates. Application: ideal for outdoor meter mains installations requiring dependable enclosure protection. Feature → Business Impact → Application: Aluminum bus construction offers lightweight mechanical strength and good conductivity, enabling faster assembly and reduced weight during handling. Application: helps contractors speed up installation in surface‑mounted configurations with top/bottom feed. Feature → Business Impact → Application: GA Georgia Power approval and UL Listed certification simplify compliance and inspection cycles, lowering project risk. Application: streamlines procurement and reduces delays in utility‑connected metering projects. Feature → Business Impact → Application: 120/240 V single‑phase compatibility supports standard residential service standards, minimizing inventory needs. Application: fits common home electrical systems with 4‑jaw termination and bottom/top feed for flexible mounting.
Get a Quick Quote for a Eaton MBP200BTSG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MBP200BTSG?
Enquire Now
FAQs
MBP200BTSG is designed for single‑phase 120/240 V residential service with meter mains functionality. Its top/bottom feed, four‑jaw terminals, and aluminum bus simplify wiring and reduce field labor, while the NEMA 3R enclosure provides outdoor durability. This combination streamlines procurement and speeds up the overall installation process for residential metering projects.
The MBP200BTSG is UL Listed and GA Georgia Power approved, ensuring compliance with national safety standards and utility access requirements. These certifications support inspection readiness and reduce risk during utility interconnection for residential metering installations.
Key specs include a 200 A interrupt rating, 120/240 V voltage rating, single‑phase operation, aluminum bus material, and four‑jaw connections. The enclosure is NEMA 3R, designed for weather resistance, and the unit supports surface mounting with top and bottom feed, making it compatible with typical residential service entrances.
Yes. The MBP200BTSG is Georgia Power approved and UL Listed, aligning with common utility metering practices. When used as a meter mains assembly, it can integrate with Georgia Power approved service entrances, simplifying project approvals and reducing installation risk.
By combining metering and main protection in one enclosure, MBP200BTSG reduces parts count, speeds up installation, and lowers maintenance intervals due to fewer interconnections. The 10‑year warranty further supports long‑term reliability, contributing to a lower total cost of ownership for residential metering deployments.
