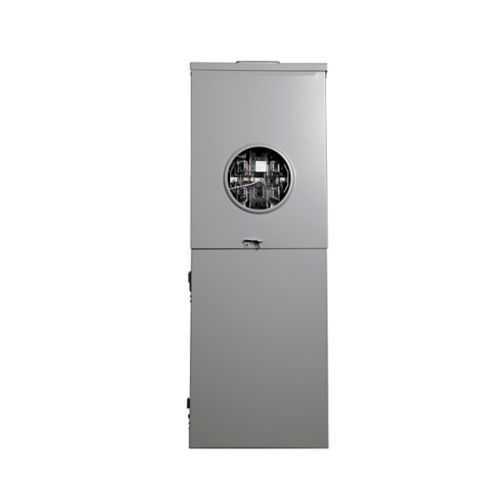

Eaton MBX2040B200BTF All-in-ones - UL Listed
Part Number: MBX2040B200BTF
Quick Summary
Eaton residential meter breaker MBX2040B200BTF provides integrated protection for 200 A residential service panels. Installers often struggle with space, labeling, and coordinating metering with distribution equipment in tight electrical rooms. It carries UL Listed certification, a NEMA 3R enclosure, and a 10 kAIC interrupt rating, supporting safety, weather resistance, and fault protection in real-world installations. This all-in-one design reduces footprint and streamlines procurement for residential configurations, while delivering reliable compatibility with BR breakers and standard 120/240 V service. For engineers and procurement teams, the combination of integrated metering and protection translates to faster installs and clearer BOMs, reducing project risk.
Product Information
Extended Description
MBX2040B200BTF Eaton: BWH MaAll-in-ones, 200A, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm22 kAIC, #6-350 kcmCSR, Flush/stuc40, Four-jaw, 1, 20, Single-phase, Ringless, Used with BR breakers, 120/240 Vac, Lever bypass
Product Name
Eaton residential meter breaker
Catalog Number
MBX2040B200BTF
UPC
786685976624
Product Length/Depth
31.5 in
Product Height
4.6 in
Product Width
11.4 in
Product Weight
38 lb
Certifications
UL Listed
Type
All-in-ones
Interrupt rating
10 kAIC
Enclosure
NEMA 3R
Amperage Rating
200 A
Number of spaces
20
Phase
Single-phase
Bypass
Lever
Number of circuits
40
Bus material
Aluminum
All-in-one design combines metering and protection in a single enclosure. This reduces the physical footprint and wiring complexity on site, speeding up commissioning and simplifying BOMs for project teams. Ideal for new builds or service upgrades in 200 A residential panels where space and clarity matter. 200 A rating with 40 circuits and 20 spaces delivers robust headroom for growing residential loads. This capacity reduces the need for future panels or retrofits and supports multi-meter configurations in single-family or multi-dwelling installations. Engineers benefit from a predictable, scalable platform that aligns with common feeder and branch-circuit budgets. Aluminum bus material provides a lighter, corrosion-resistant path for power distribution. The material choice improves install ergonomics and long-term reliability in both indoor and outdoor environments. Combined with the compact footprint, it enables easier handling during field assembly. NEMA 3R enclosure and UL Listed certification ensure suitability for outdoor service and code compliance. This weather-resistant packaging protects metering and protection components from moisture and dust while meeting regulatory expectations. Outdoor installations become straightforward when typical enclosure ratings and certifications are guaranteed. 10 kAIC interrupt rating and compatibility with BR breakers give engineers confidence in fault handling and retrofit flexibility. These specifications support utility clearance and code adherence while enabling straightforward integration with existing Eaton and BR breaker ecosystems. Lever bypass offers service technicians a safer, faster maintenance option without interrupting the entire facility. Compatibility with BR breakers simplifies retrofits and reduces stocking complexity. The design aligns with standard 120/240 VAC residential service, easing integration with existing panels and service entrances. This means fewer compatibility concerns and quicker procurement for electrical contractors.
Get a Quick Quote for a Eaton MBX2040B200BTF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MBX2040B200BTF?
Enquire Now
FAQs
Yes. MBX2040B200BTF is an all-in-one meter breaker designed to integrate with BR breaker systems and 120/240 V service, simplifying replacements in compatible Eaton BR-equipped panels and reducing wiring complexity during retrofits.
MBX2040B200BTF features a 10 kAIC interrupt rating and operates on 120/240 VAC single-phase, meeting common residential fault-current requirements and code expectations.
Yes. The product uses a NEMA 3R enclosure and UL Listing, making it suitable for outdoor service entrances and weather-exposed locations while maintaining compliance with safety standards.
Key certifications include UL Listed and NEMA 3R enclosure, providing recognized protection and reliability for outdoor and indoor installations in residential environments.
The all-in-one design reduces wiring complexity, minimizes install time, and simplifies BOMs, leading to lower labor costs, quicker maintenance, and easier future upgrades in residential metering and protection schemes.
