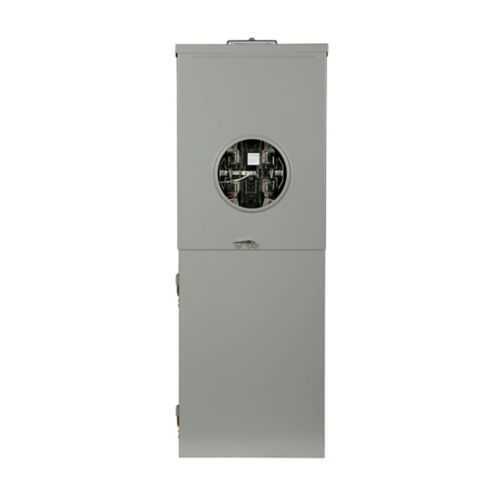

Eaton MBX816B150BTS Residential Meter Breaker - UL Listed
Part Number: MBX816B150BTS
Quick Summary
MBX816B150BTS residential meter breaker provides integrated metering and service disconnect for residential service entrances. In many projects, coordinating separate metering sockets, disconnects, and feeders creates schedule delays and potential non-compliance. This unit carries UL Listed certification, a rugged NEMA 3R enclosure, and a 22 kAIC interrupt rating, ensuring safe outdoor installation and utility compatibility. The all-in-one design minimizes field wiring and inventory, delivering faster installs and reduced lifecycle costs, while supporting Ameren and Xcel Energy utility requirements for metering products and energy management applications. By consolidating functions into a single enclosure, it also simplifies maintenance planning and reduces the risk of inter-component incompatibility.
Product Information
Extended Description
MBX816B150BTS Eaton: Eaton resi meter breaker, All-in-ones, 150A, Aluminum, NEMA 3R, Bottom and top, #6-350 kcm22 kAIC, #6-350 kcmCSR, Surface mounting, 16, Five-jaw, 1, 8, Single-phase, Ringless, Black Hills Energy, 120/240 Vac, Lever bypass
Product Name
Eaton residential meter breaker
Catalog Number
MBX816B150BTS
UPC
786685460628
Product Length/Depth
41.5 in
Product Height
6.5 in
Product Width
14.5 in
Product Weight
49 lb
Warranty
10 year
Certifications
UL Listed
Type
All-in-ones
Utility approvals
IL : Ameren MO : Ameren CO : Xcel Energy MI : Xcel Energy MN : Xcel Energy ND : Xcel Energy NM : Xcel Energy SD : Xcel Energy TX : Xcel Energy WI : Xcel Energy
Interrupt rating
22 kAIC
Enclosure
NEMA 3R
Ground
#6-350 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Bypass
Lever
Number of circuits
16
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
CSR
Number of jaws
Four-jaw
Eaton Emergency Disconnect Options at a Glance
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - MBX816B150BTS
All-in-one metering and service disconnect: This integrated design reduces the number of components suppliers must stock, cutting procurement complexity and field wiring. Business impact: fewer parts to manage translates to shorter installation times and lower labor costs. Application: ideal for new residential builds and retrofit projects where meter sockets and disconnects must fit within limited spaces. High-current capability: 150 A main with 22 kAIC interrupt rating. Business impact: robust protection that aligns with typical residential service entries and certain light commercial feeders. Application: suitable for service disconnects in compact metering enclosures and energy-management installations. Rugged outdoor enclosure: NEMA 3R rating ensures weather protection and safe outdoor operation. Business impact: reduces weather-related maintenance and extends service life. Application: outdoor meters and service disconnects in exposed sites. Feed flexibility: Top and bottom feed with surface mounting. Business impact: installation versatility minimizes site disruption and retrofit complexity. Application: retrofits and new builds where space and routing vary. Aluminum bus and four-jaw main: Lighter weight, durable current distribution, and easier handling. Business impact: improved ease of installation and reduced handling costs. Application: high-current residential distributions with tight space constraints. Ground connections and bypass: Ground up to #6-350 kcmil and lever bypass for maintenance efficiency. Business impact: safer grounding and faster service maintenance. Application: service entries requiring rapid access during commissioning and routine checks. Warranty and compliance: 10-year warranty with UL Listed certification and 22 kAIC protection. Business impact: lowers total cost of ownership and validates utility compatibility. Application: asset lifecycle planning for multifamily and single-family projects.
Get a Quick Quote for a Eaton MBX816B150BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MBX816B150BTS?
Enquire Now
FAQs
MBX816B150BTS supports top and bottom feed with surface mounting, utilizing an aluminum bus and a four-jaw main CSR for robust current handling. It accepts ground conductors up to #6-350 kcmil, enabling flexible installations. This configuration is particularly advantageous for retrofit projects and applications requiring adaptable routing to existing meter bases.
The unit provides a 150 A main rating with a 22 kAIC interrupt capacity, operating at 120/240 V single-phase. It includes 16 circuits in a single-socket format and uses aluminum bus to reduce weight and thermal stress. The lever bypass supports service maintenance without removing the assembly, enhancing uptime.
Yes. The MBX816B150BTS is UL Listed and designed to meet typical utility program requirements, including Ameren and Xcel Energy. Its integrated metering and disconnect function, plus a weather-rated NEMA 3R enclosure, provides compliant service entry protection for utility-managed metering deployments and energy management initiatives.
This unit carries UL Listed certification and a NEMA 3R enclosure rating, enabling safe outdoor installation. It comes with a 10-year warranty, a 150 A main, and 22 kAIC interrupt capacity, supporting reliability and code compliance for residential service entrances and light commercial metering installations.
By consolidating metering and disconnect into a single enclosure, the MBX816B150BTS reduces SKU count and procurement time, cutting total cost of ownership. Installation is faster due to fewer field connections, and maintenance planning is simplified with a single, serviceable unit. Over a typical 10-year horizon, labor and inventory costs are lower.
