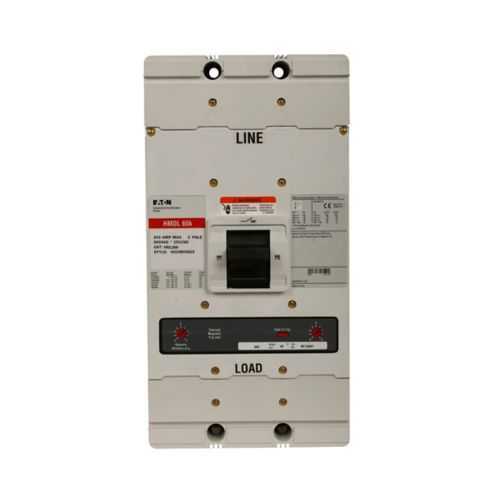

Eaton MDL2600 Molded Case Circuit Breaker - UL Listed

Part Number: MDL2600
MDL2600
Manufacturer
Eaton
Part number
MDL2600
Category

Quick Summary

The Eaton MDL2600 molded case circuit breaker provides reliable overcurrent protection for industrial electrical panels and motor control centers. Engineers often struggle to match trip characteristics and interrupt ratings across varying voltages, which can lead to nuisance outages or undersized protection. UL Listed certification underpins safe, compliant installations in harsh factory environments. The Series C MDL frame with fixed thermal and fixed magnetic trip delivers precise protection for motor loads and power distribution, while the 600 A rating supports mid-size applications at up to 600 Vac and 250 Vdc. This combination reduces downtime, streamlines procurement, and simplifies maintenance through common accessories and a robust Eaton service network.

Product Information

Extended Description

MDL2600 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 600A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDL2600
UPC
782114585832
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
600 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Complete breaker
Series
Series C
Frame
MDL
Frequency rating
50 to 60 Hz
Interrupt rating
50 kAIC at 480 Vac 65 kAIC at 240 Vac
Number of poles
Two-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit Breakers Explained Circuit Breakers Explained Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves
Fixed thermal and fixed magnetic trip in the MDL2600 delivers fast, predictable protection for motor and power circuits. This translates to shorter fault clearing times and reduced damage to equipment, cutting repair costs and downtime. Ideal for two-pole configurations in panelboards and motor control centers, it supports mid-size industrial applications that demand reliable protection across a wide voltage range. With an interrupt rating of 50 kAIC at 480 Vac and 65 kAIC at 240 Vac, the MDL2600 handles high fault currents common in industrial environments, reducing the risk of collateral damage to upstream equipment. Designed as a complete MDL frame breaker, the unit is compatible with Series C accessories and standard MCCB configurations, simplifying installation and spare-part planning. UL Listed status plus Eaton's warranty provide risk mitigation for procurement and maintenance teams, while 50/60 Hz operation aligns with most facilities. The Series C design supports easy retrofits and scalable protection as systems grow, delivering lower total cost of ownership and improved uptime.

Get a Quick Quote for a Eaton MDL2600

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton MDL2600? Enquire Now

FAQs

MDL2600 is designed as a complete MDL frame breaker, ensuring straightforward compatibility with Series C accessories and standard MCCB configurations. This simplifies panel retrofits, reduces vendor variety, and minimizes onsite integration time for maintenance teams.
The MDL2600 operates at up to 600 Vac and 250 Vdc with a fixed thermal magnetic trip (T186). Its two-pole design and Series C MDL frame provide predictable trip curves, reducing nuisance trips while protecting motor loads and power circuits in industrial environments.
Ideal for motor control centers, panelboards, and mid-size power distribution layouts, MDL2600 supports demanding voltage ranges and high fault-current scenarios common in manufacturing, processing, and packaging facilities.
Yes. The MDL2600 carries UL Listed certification, confirming compliance with safety requirements for industrial electrical protection devices and facilitating safe installation within regulated facilities.
Eaton provides a standard warranty under policy 25-000: one year from installation or 18 months from shipment, whichever comes first. The product is supported by Eaton service centers and a broad spare-parts network for rapid maintenance and replacements.
