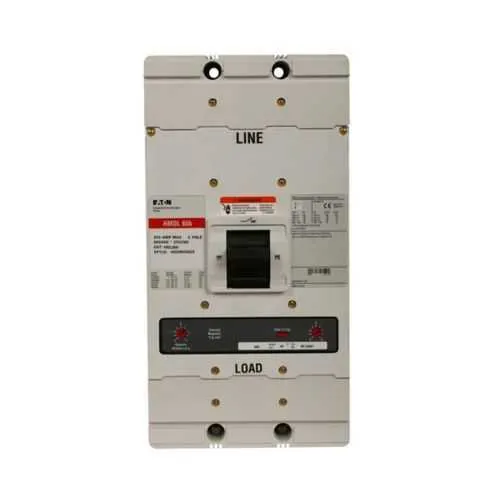

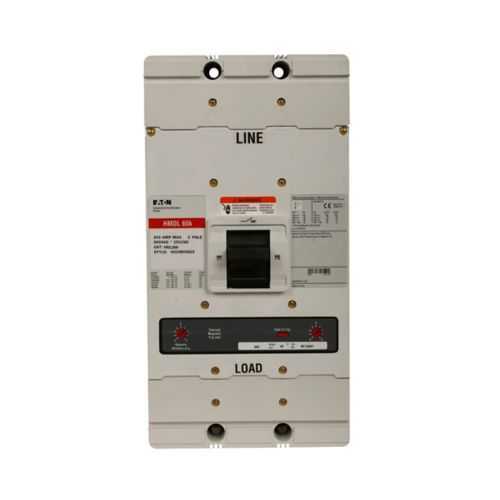

Eaton MDL2700 Molded Case Circuit Breaker - UL Listed

Part Number: MDL2700
MDL2700
Manufacturer
Eaton
Part number
MDL2700
Category

Quick Summary

MDL2700 molded case circuit breaker provides reliable overcurrent protection for industrial power distribution panels. In fast-paced environments, uptime depends on accurate protection settings and compact installation, which this unit helps guarantee. UL Listed certification reinforces safety and reliability for system designers, while Series C and MDL frame compatibility streamline retrofits and replacements. This model supports high interrupt ratings and flexible voltage options, enabling robust motor control, panel protection, and automation integration with straightforward installation and low maintenance costs.

Product Information

Extended Description

MDL2700 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 700A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDL2700
UPC
782114398289
Product Length/Depth
18 in
Product Height
8 in
Product Width
10.75 in
Product Weight
26.65 lb
Certifications
UL Listed
Amperage Rating
700 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Complete breaker
Series
Series C
Frame
MDL
Interrupt rating
50 kAIC at 480 Vac 65 kAIC at 240 Vac
Number of poles
Two-pole
UL listed 100%-rated molded case circuit breakers UL listed 100%-rated molded case circuit breakers UL listed 100%-rated molded case circuit breakers Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Motor protection circuit breakers product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit Breakers Explained Circuit Breakers Explained MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide
Feature: 700 A amperage rating. Business Impact: Supports heavy-load feeders and motor circuits without oversizing equipment, reducing upfront cost and panel footprint. Application: Industrial power distribution and large motor feeders needing robust protection. Feature: 600 Vac / 250 Vdc voltage rating. Business Impact: Flexible across AC and DC systems, minimizing the need for multiple device types. Application: Mixed-voltage control panels and drives. Feature: 50 kAIC at 480 Vac and 65 kAIC at 240 Vac interrupt ratings. Business Impact: Higher fault current tolerance translates to improved safety margins and reduced downtime during faults. Application: Industrial facilities with high short-circuit currents. Feature: Two-pole MDL frame, Series C, with T186 trip type. Business Impact: Precise protection for dual-line circuits and motors, simplified coordination with upstream protection. Application: Motor control centers and panelboards. Feature: UL Listed certification. Business Impact: Facilitates procurement and compliance, easing inspections and supplier qualification. Application: Safety-critical electrical installations and regulated environments. Feature: Physical dimensions 18 in long, 10.75 in wide, 8 in high; weight 26.65 lb. Business Impact: Fits standard enclosures, predictable replacement in retrofit projects, and manageable handling during installation. Application: Enclosures and retrofit projects in manufacturing and process facilities.

Get a Quick Quote for a Eaton MDL2700

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton MDL2700? Enquire Now

FAQs

Install the MDL2700 in a compatible enclosure using the MDL frame terminals, ensuring proper clearance and torque on all terminations per the MOEM MCCB guide. Verify the two-pole arrangement matches the panel design, and coordinate with upstream protective devices for correct trip settings (T186).
Key specs include 700 A amperage rating, 600 Vac and 250 Vdc voltage ratings, two-pole configuration, Series C MDL frame, T186 trip type, interrupt ratings of 50 kAIC at 480 Vac and 65 kAIC at 240 Vac, and UL Listed certification. Dimensions are 18 in length, 10.75 in width, 8 in height, with a weight of 26.65 lb.
Yes. The MDL2700’s two-pole design, 700 A rating, and Series C protection are well-suited for motor control centers and drive protection. Its T186 trip type provides reliable overload and short-circuit protection, while its high interrupt ratings help protect motors and feeders during fault conditions.
The MDL2700 is UL Listed, indicating compliance with recognized safety standards for molded case circuit breakers. This certification supports safer installations, easier regulatory approvals, and streamlined procurement for industrial electrical projects.
The MDL2700 offers long service life with robust interrupt ratings, reducing replacement frequency and downtime. Its compatibility with standard MDL frames simplifies retrofits and spare-part stocking, lowering maintenance costs while improving system reliability across manufacturing and process facilities.
