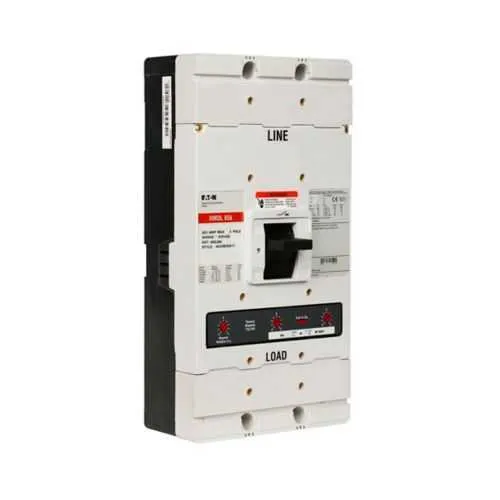

Eaton MDL3500WA08S04 Molded Case Circuit Breaker - UL Listed
Part Number: MDL3500WA08S04
Quick Summary
MDL3500WA08S04 Molded Case Circuit Breaker protects high-current loads in industrial control panels and machinery. When panel space is tight or loads surge, nuisance trips and complex coordination can slow production; this MCCB is designed to minimize those issues. It carries UL Listed certification, supporting safety and compliance in North American installations. Built for Series C architecture, it delivers reliable protection with straightforward installation, while its 600 Vac / 250 Vdc ratings support broad system compatibility. For panel builders and maintenance teams, this device hits a critical balance of performance, safety, and total cost of ownership.
Product Information
Extended Description
MDL3500WA08S04 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Fixed thermal and magnetic trips, Three-pole, 500A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 12-24 Vac/dc same side left term.
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDL3500WA08S04
UPC
782116971190
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
4.06 in
Product Weight
0.01 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
500 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Complete breaker
Auxiliary switch
1A-1B same side right terminal
Series
Series C
Shunt trip
12-24 Vac/dc left terminal same side
Terminals
Without terminals
Frame
MDL
Frequency rating
50 to 60 Hz
Interrupt rating
65 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Circuit breaker motor operators product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Circuit Breakers Explained
Circuit Breakers Explained
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
Implementation of arc flash mitigating solutions at industrial manufacturing facilities
Feature → Business Impact → Application: Fixed thermal and magnetic trips provide fast, predictable protection, reducing unplanned downtime and extending equipment life in busy manufacturing lines. This translates to lower maintenance costs and improved process reliability in motor-startup and feeder protections across automotive, packaging, and general machinery. Feature → Application: 3-pole MDL frame with Series C design offers compact integration in control panels, saving panel space and simplifying wiring in cabinet assemblies for food & beverage and process industries. Feature → Application: 65 kAIC at 240 Vac and 50 kAIC at 480 Vac, plus 600 Vac/250 Vdc ratings, ensures robust fault current handling in mixed-voltage systems, improving compliance and safety in power distribution. Feature → Application: Shunt trip and auxiliary switch options (12-24 Vac/dc left side; 1A-1B right side) enable remote interlock and status signaling for automated shutdowns in critical lines. Feature → Application: UL Listed certification and warranty support reduce procurement risk and warranty disputes, delivering confidence for project handover and long-term service planning. Feature → Application: Without terminals (field-lug installation required) aligns with specified panel layouts while offering compatibility with a range of lugs and accessories from Eaton’s catalog, ensuring reliable terminations and serviceability in upgrade projects.
Get a Quick Quote for a Eaton MDL3500WA08S04
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MDL3500WA08S04?
Enquire Now
FAQs
MDL3500WA08S04 is a three-pole MDL frame MCCB designed for Series C panels. It is specified as without terminals, so you will need to select compatible lugs or termination kits and wire harnesses. The unit supports a shunt trip (12-24 Vac/dc on the left side) and an auxiliary switch (1A-1B on the right terminal), which facilitates remote control and status signaling in panel builds.
This MCCB is rated for 500 A, 600 Vac and 250 Vdc, with an interrupt rating of 65 kAIC at 240 Vac and 50 kAIC at 480 Vac. It operates at 50 to 60 Hz and uses a T186 trip type within the Series C MDL frame, making it suitable for high-current feeders and motor circuits in industrial environments.
Yes. The 3-pole MDL frame with fixed thermal and magnetic trips provides reliable motor protection, reducing nuisance trips and enabling predictable motor start/stop sequences. The 65 kAIC at 240 Vac rating supports fault current handling in motors and feeders common in manufacturing plants.
The MDL3500WA08S04 is UL Listed, confirming compliance with safety standards for North American electrical installations. Eaton provides a warranty under policy 25-000, offering one year from the date of installation or 18 months from shipment, whichever occurs first.
With a Series C MDL design, fixed trips, and selectable remote features (shunt trip and auxiliary switch), installation and commissioning are streamlined, reducing maintenance downtime. The UL Listed certification and robust fault-current ratings help minimize risk and warranty claims, delivering lower total cost of ownership over the equipment lifecycle.
