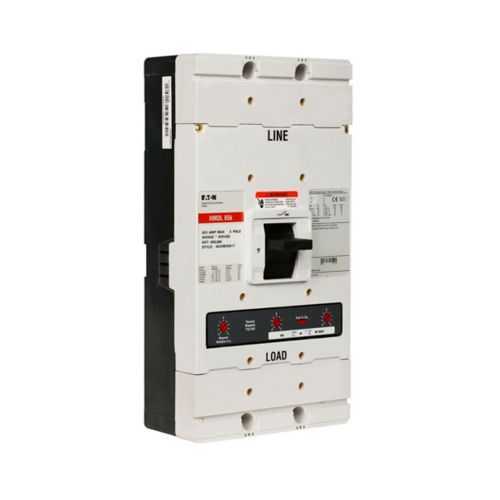

Eaton MDL3800A13U26 Molded Case Circuit Breaker - UL Listed

Feature: Fixed thermal and magnetic trips provide predictable protection without requiring constant recalibration. Benefit: Reduces unplanned outages and extends equipment life by ensuring fast and consistent responses to overloads. Application: Ideal for motor feeders and power distribution panels in manufacturing lines. Feature: 800 A amperage rating with 600 Vac / 250 Vdc voltage ratings. Benefit: Supports large assemblies from a single device, minimizing the need for parallel breakers and simplifying panel design. Application: Large control panels and motor control centers where high fault current could be present. Feature: Trip Type T186 with a 65 kAIC at 240 Vac and 50 kAIC at 480 Vac interrupt rating. Benefit: The high fault-current handling provides robust protection for heavy-duty equipment while improving selectivity and reducing damage during short circuits. Application: Industrial equipment with high inrush or short-circuit potential. Feature: Series C MDL frame with three poles. Benefit: Uniform trip characteristics across phases and space-saving enclosure integration. Application: Main feeder and motor-control applications where three-phase protection is required. Feature: Auxiliary switch 2A-2B rear with right pigtail and undervoltage release 380-480 Vac rear with left pigtail. Benefit: Enables remote signaling, coil control, and enhanced protection schemes without additional accessories. Application: Panels requiring remote annunciation and backup protection for critical drives. Insight: The MDL3800A13U26 aligns with industry best practices for MCCB selection in OEM projects, offering compatibility with Eaton accessories and broad applicability across industrial automation environments. Key long-tail terms: 800 A molded case circuit breaker, Series C MCCB, MDL frame protection, three-pole MCCB, undervoltage release accessories, pigtail termination, UL Listed MCCB.
