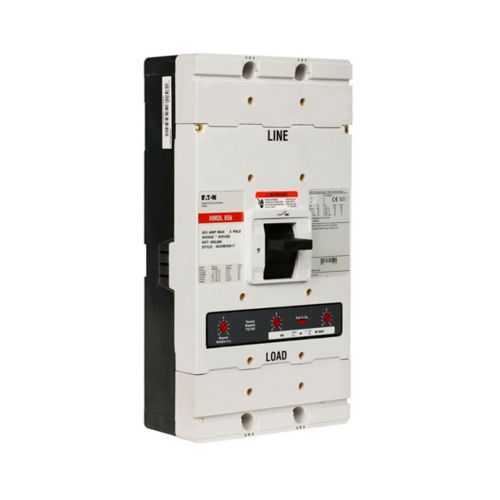

Eaton MDL3800C04S01 Molded Case Circuit Breaker - UL Listed

Part Number: MDL3800C04S01
MDL3800C04S01
Manufacturer
Eaton
Part number
MDL3800C04S01
Category

Quick Summary

Eaton MDL3800C04S01 molded case circuit breaker delivers robust overcurrent protection for industrial power distribution networks. This device is designed for three-pole applications up to 800 A in 600 V AC and 250 V DC systems. A common challenge is sourcing a compact, high-amp MCCB that fits Series C panels while meeting global safety standards. This unit carries UL Listed certification, and in many markets buyers also require CE conformity and appropriate IP ratings for harsh environments. The MDL3800C04S01 is built for reliable integration with MDL frames, with a left-side shunt option and 12–24 Vac/dc signaling, enabling streamlined wiring and faster protection deployment for efficiency-driven projects.

Product Information

Extended Description

MDL3800C04S01 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Fixed thermal and magnetic trips, Three-pole, 800A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 1A-1B MK-BK, 12-24 Vac/dc same side w/ left pigtail
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDL3800C04S01
UPC
782116014606
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
800 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Complete breaker
Series
Series C
Shunt trip
12-24 Vac/dc same side with left pigtail shunt
Frame
MDL
Combo switch
1A-1B MK-BK
Interrupt rating
50 kAIC at 480 Vac 65 kAIC at 240 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Circuit breaker motor operators product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit breakers explained Circuit breakers explained MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide MOEM MCCB product selection guide
Feature: 800 A amperage rating in the MDL frame enables high-capacity protection for main feeders and motor loads. Business impact: this reduces nuisance trips and improves uptime. Application: ideal for distribution panels and MCCs serving 600 Vac and 250 Vdc systems. Feature: T186 fixed thermal and magnetic trip provides reliable discrimination. Business impact: quick fault clearance minimizes collateral damage and downtime. Application: protects critical equipment in manufacturing lines and motor-driven processes. Feature: Shunt trip option 12-24 Vac/dc with left pigtail. Business impact: enables remote safety interlock and safe shutdown control. Application: safety-critical zones with PLC safety system integration. Feature: Series C MDL compatibility and three-pole design facilitate plug-and-play installation. Business impact: reduces installation time and spare parts diversity. Application: retrofit and new-build panels in industrial environments. Feature: UL Listed certification supports safety compliance and audit readiness. Business impact: simplifies procurement and risk management in global supply chains. Application: OEM panels, distribution boards, and harsh-environment enclosures.

Get a Quick Quote for a Eaton MDL3800C04S01

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton MDL3800C04S01? Enquire Now

FAQs

The MDL3800C04S01 is designed for Series C MDL frames and three-pole assemblies, enabling straightforward plug-in mounting in compatible panels. Use the left-side shunt trip option for remote safety signaling and connect control wiring to the 12–24 Vac/dc input as specified. Always follow Eaton's MOEM MCCB product selection guide for torque, clearances, and wiring schemes.
Amperage rating is 800 A; voltage rating is 600 Vac / 250 Vdc; trip type is T186; interrupt rating is 50 kAIC at 480 Vac and 65 kAIC at 240 Vac; it is a three-pole MDL frame device with a left-side shunt option and a 12-24 Vac/dc control input. These specs support reliable protection across diverse industrial circuits.
Yes. The MDL3800C04S01 offers a robust three-pole MDL frame with an 800 A rating and T186 trip characteristics, making it suitable for motor control centers and panel protection in manufacturing and process environments. Coordinate with motor starters and overload protection, and consider the remote trip option for enhanced safety interlocks.
This product is UL Listed, ensuring compliance with safety standards for electrical protection devices. In many markets, CE conformity and appropriate IP enclosure ratings are also important; verify the final installation with the end system and enclosure to meet local regulatory requirements and to streamline audits.
Expected benefits include reduced downtime through reliable fault interruption, improved reliability of power distribution, and simpler procurement due to standard Series C/MDL components. The left-pigtail shunt option enables safer remote operation, contributing to safer maintenance and faster incident response without extensive wiring changes.
