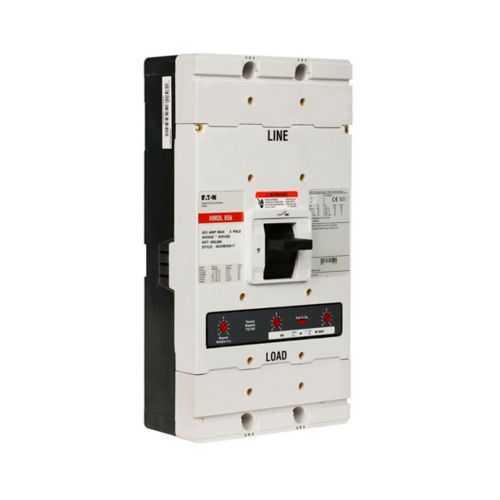

Eaton MDL3800WKA1201S0101 Molded Case Breaker - UL Listed
Part Number: MDL3800WKA1201S0101
Quick Summary
MDL3800WKA1201S0101 Molded Case Circuit Breaker protects industrial electrical panels and machine controls. This high-magnetic, three-pole device delivers reliable overcurrent protection for demanding automation environments. Engineers often face panel space constraints, nuisance trips, and upgrade downtime when selecting protection equipment. UL Listed certification confirms safety compliance, while regional CE or IP requirements may apply depending on installation conditions. By leveraging the MDL Series C frame, users gain compact, robust protection with straightforward integration into existing MCCB architectures. The result is improved safety, faster commissioning, and reduced total cost of ownership for capital-intensive equipment fleets.
Product Information
Extended Description
MDL3800WKA1201S0101 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Molded case switch, Fixed thermal, fixed mag. trip, Three-pole, 800A, 600 Vac, 250 Vdc, no term., 2A-2B same side w/right pigtail, 12-24 Vac/dc same side w/left pigtail
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDL3800WKA1201S0101
UPC
782114883365
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
High magnetic molded case switch
Amperage Rating
800 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Molded case switch
Auxiliary switch
2A-2B same side with right pigtail
Series
Series C
Shunt trip
12-24 Vac/dc same side with left pigtail shunt
Terminals
Without terminals
Frame
MDL
Interrupt rating
65 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Power metering and monitoring with Modbus RTU product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Circuit Breakers Explained
Circuit Breakers Explained
Series C G-Frame molded case circuit breakers time current curves
Series C G-Frame molded case circuit breakers time current curves
Series C G-Frame molded case circuit breakers time current curves
Series C G-Frame molded case circuit breakers time current curves
Series C G-Frame molded case circuit breakers time current curves
Feature → Business Impact → Application: The MDL3800WKA1201S0101 is rated at 800 A with fixed thermal and magnetic trip (T186), delivering dependable fault isolation in high-load machines. This translates to reduced arc flash risk and lower downtime when motors and feeders demand rapid interruption in fault conditions, ideal for heavy manufacturing lines and process automation. Application: Use in main feeders and control panels where high short-circuit withstand is required, supporting uptime targets while meeting industry protection standards. Feature → Business Impact → Application: Three-pole MDL frame with 600 Vac and 250 Vdc ratings provides broad compatibility across alternating and DC-controlled loads, enabling safer power distribution in mixed-voltage environments common in packaging, material handling, and robotics systems. Feature → Business Impact → Application: Auxiliary switch (2A-2B) on the same side with right-side pigtail simplifies signaling and interlocking schemes, reducing wiring complexity and installation time in panel interiors. Feature → Business Impact → Application: Shunt trip option (12-24 Vac/dc on same side with left pigtail) supports remote de-energization and safety interlocks for machine guarding and remote shutdown scenarios in hazardous production areas. Feature → Business Impact → Application: Terminals without terminals design streamlines integration with busbars or dedicated lug schemes, enabling cleaner panel layouts and faster field assembly in new builds or retrofits. Feature → Business Impact → Application: UL Listed certification provides a foundation for compliance with safety and design standards, helping procurements meet regulatory requirements while ensuring reliable performance during peak demand. Feature → Business Impact → Application: Series C, MDL frame and fixed trip configuration align with established MCCB portfolios, easing lifecycle management, spares planning, and service center support for large industrial facilities.
Get a Quick Quote for a Eaton MDL3800WKA1201S0101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MDL3800WKA1201S0101?
Enquire Now
FAQs
This breaker uses the Series C MDL frame designed for molded case protection common in Series C panels. It is a three-pole device with no terminals included, so installation typically requires compatible busbars or lug assemblies. Verify panel compatibility with your MCCB catalog and ensure correct busbar sizing and mounting hardware are used for clean, reliable connections.
Key specs include an 800 A amperage rating, 600 Vac and 250 Vdc voltage ratings, a fixed thermal/magnetic trip (T186), and a 65 kAIC interrupt rating at 240 Vac (50 kAIC at 480 Vac). The unit is three-pole, with series MDL frame and auxiliary/shunt options available to tailor fast protective actions to your system.
The auxiliary switch (2A-2B on the right) and shunt trip (12-24 Vac/dc on the left) are designed to simplify remote signaling and automatic shutdowns. These features enable interlock and remote control scenarios, reducing manual intervention and improving safety in production lines where automated de-energization is required during fault or maintenance events.
Yes, the device is UL Listed, ensuring compliance with recognized safety standards for electrical protection equipment. While UL coverage is explicit in the data, users should confirm alignment with regional CE, IP, or other regulatory requirements to match local codes and project specifications.
By providing fast, reliable trip performance and modular options for signaling and interlocking, this MCCB minimizes unplanned downtime and improves fault containment. Its compatibility with Series C hardware supports streamlined spare parts management and longer service intervals, delivering lower maintenance costs and faster return on investment for high-demand production environments.
