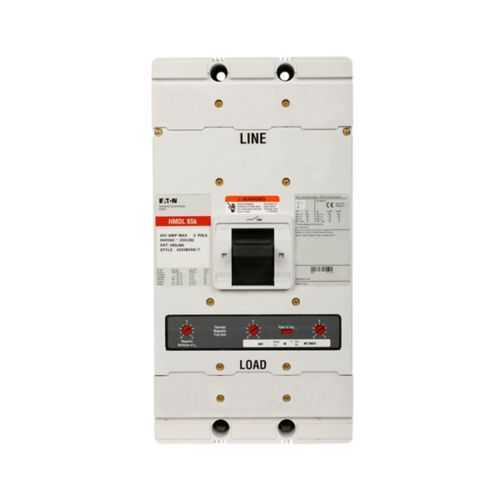

Eaton MDLB2450 MCCB - UL Listed, 2-Pole Case Breaker

Part Number: MDLB2450
MDLB2450
Manufacturer
Eaton
Part number
MDLB2450
Category

Quick Summary

Eaton MDLB2450 MCCB is a protective two-pole molded case circuit breaker designed for industrial power distribution and control panels. Users often grapple with nuisance trips and downtime when protection is undersized; this device delivers reliable, repeatable protection with a fixed thermal-magnetic trip for consistent response. It carries UL Listed certification and supports 50/60 Hz systems with 65 kAIC at 240 V and 50 kAIC at 480 V, aligning with Series C MDL frame requirements. By combining rugged protection with straightforward installation and excellent compatibility, this MCCB helps sustain uptime, simplifies panel upgrades, and enables scalable protection across facilities.

Product Information

Extended Description

MDLB2450 Eaton: Eaton Series C complete molded case circuit breaker, MDL-frame, MDLB, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 450A, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz
Product Name
Eaton Series C complete molded case circuit breaker
Catalog Number
MDLB2450
UPC
782114586129
Product Length/Depth
8.25 in
Product Height
4.06 in
Product Width
8.25 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
450 A
Trip Type
T186
Circuit breaker type
MDLB
Circuit breaker frame type
Complete breaker
Series
Series C
Frame
MDL
Frequency rating
50 to 60 Hz
Interrupt rating
65 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Two-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Multi-Wire Terminals for Molded Case Circuit Breakers Multi-wire lugs product aid Multi-wire lugs product aid Multi-wire lugs product aid Multi-wire lugs product aid Multi-wire lugs product aid Multi-wire lugs product aid Multi-wire lugs product aid Breaker service centers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 Circuit breakers explained Circuit breakers explained Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curves
Feature: Two-pole design reduces wiring complexity and enhances fault coordination. Business Impact: Simplified installation and predictable protection in space-constrained panels. Application: Motor control centers and switchgear where compact, reliable protection is essential. Feature: Fixed thermal-magnetic trip (T186) for fast, predictable interruption. Business Impact: Minimizes arc exposure and protects equipment from overloads, reducing maintenance costs. Application: Industrial power distributions with high inrush loads and motor starting. Feature: MDL frame, Series C complete breaker with 450 A rating. Business Impact: Seamless integration into existing MDL-based panels with known time-current characteristics. Application: Retrofit or new builds using Series C MCCBs for standardized protection. Feature: High interrupt ratings — 65 kAIC at 240 Vac and 50 kAIC at 480 Vac. Business Impact: Enhanced safety margin for distribution networks and critical loads. Application: Panelboards supporting diverse voltages in manufacturing and process environments. Feature: UL Listed certification. Business Impact: Regulatory compliance and supplier confidence for safety-critical installations. Application: Automotive,食品 processing, and general industrial facilities requiring vetted protection devices. Feature: Compact footprint and documented dimensions (8.25 in L, 8.25 in W, 4.06 in H; 20 lb). Business Impact: Easier space planning and installation in crowded panels with predictable handling. Application: Retrofit projects and new installations where rack space is at a premium.

Get a Quick Quote for a Eaton MDLB2450

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton MDLB2450? Enquire Now

FAQs

MDLB2450 is designed for Eaton Series C MDL-frame installations and two-pole configurations. It fits standard Series C MCCB footprints, enabling straightforward retrofits or new builds without extensive panel redesign. Always verify lug type and terminal torque per Eaton application notes for optimal performance.
Key specs include a 450 A amperage rating, 65 kAIC at 240 V, and 50 kAIC at 480 V, with a 50/60 Hz rating. The device uses fixed thermal-magnetic trip (T186) and is a two-pole MDLB series MCCB, designed to protect above-average, high-energy industrial circuits.
Ideal for motor control centers, switchgear, and control panels in industrial facilities. The 65 kAIC/50 kAIC ratings support robust fault protection for feeders and motor circuits, while the MDL frame facilitates integration into existing Series C protection schemes.
MDLB2450 is UL Listed, ensuring compliance with recognized safety standards. While the dataset lists UL Listed, users should confirm regional regulatory requirements (such as CE in Europe) through local standards documentation before deployment in non-US markets.
Warranty follows Eaton policy 25-000, offering one year from installation or eighteen months from shipment, whichever comes first. Regular inspection of terminal connections and thermal-magnetic trip function testing per maintenance schedules helps sustain protection performance and minimize unplanned downtime.
