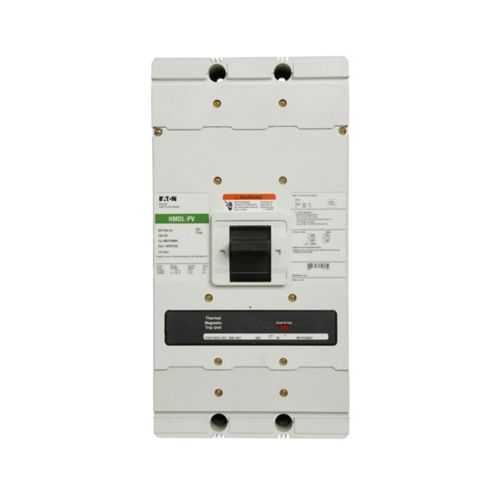

Eaton MDLPV3600W PV Guard Solar MCCB - UL Listed
Part Number: MDLPV3600W
Quick Summary
PV Guard solar complete molded case circuit breaker from Eaton provides reliable DC protection for photovoltaic systems. Engineers often struggle with safe, fast fault isolation in high-voltage DC networks; this device delivers fixed thermal and magnetic trips for dependable interruption. UL Listed certification confirms safety compliance, while the MDL frame is designed for PVGuard integration and 1000 Vdc operation. Designed for efficiency and scalability in solar installations, it supports 600 A, 1000 Vdc, and 7.5 kAIC ratings, helping facilities meet reliability targets while controlling cost. Its compact dimensions and MDL frame compatibility simplify retrofits and new builds alike. This combination reduces installation time and supports PV system performance targets.
Product Information
Extended Description
MDLPV3600W Eaton: Eaton Series C DC/PvGard complete molded case circuit breaker, MDL-frame, MDL, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 600A, 1000 Vdc, 7.5 kAIC at 1000 Vdc, No term., Photo voltaic, 80% rated
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
MDLPV3600W
UPC
786685882826
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
28.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
600 A
Voltage rating
1000 Vdc
Trip Type
T186
Circuit breaker type
MDL
Circuit breaker frame type
Complete breaker
Rating
80% rated
Terminals
Without terminals
Frame
MDL
Class
Photovoltaic
Interrupt rating
7.5 kAIC at 1000 Vdc
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - MDLPV3600W
Eaton Specification Sheet - MDLPV3600W
600 A current rating with 1000 Vdc rating enables protection right at PV arrays and DC feeders. This configuration reduces arc energy and improves safe shutdown during faults, boosting equipment longevity and worker safety. Application: ideal for three-pole DC distributions in PV plants using the MDL frame for straightforward integration.7.5 kAIC interrupt rating at 1000 Vdc paired with fixed thermal and fixed magnetic trips (T186). Rapid fault interruption minimizes module and wiring damage, supports tight protective margins, and helps meet utility interconnection requirements. Application: PVGuard aligned protection in solar switchgear and combiner boxes.Complete MDL frame design with no terminals, 8.25 in product dimensions, and 28.4 lb weight for robust, field-friendly installation. This simplifies mounting in space-constrained enclosures and reduces handling risk during fit-up. Application: retrofits and new-build PV installations needing reliable, plug-in protection without bulky terminal hardware.UL Listed certification and 80% rating suitability for PV derating practices. This improves regulatory compliance and performance reliability, reducing maintenance costs over time. Application: suitable for US and PV-specific installations where PVGuard compatibility streamlines integration and lifecycle support.
Get a Quick Quote for a Eaton MDLPV3600W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MDLPV3600W?
Enquire Now
FAQs
MDLPV3600W uses the MDL frame designed for complete breaker assemblies in photovoltaic protection schemes. When installing, verify enclosure clearances for an 8.25 in cube footprint and ensure panel bus connections align with lugs or bus bars compatible with theไม่มี terminals configuration. The no-terminals design simplifies field fitting, reducing installation time and potential miswiring in DC PV applications.
The MDLPV3600W is rated for 600 A with a maximum of 1000 Vdc. It provides an interrupt rating of 7.5 kAIC at 1000 Vdc and uses a three-pole MDL frame with fixed thermal and magnetic trip (T186). These specifications support high-current PV protection, rapid fault clearance, and compatibility with PVGuard configurations in DC distribution networks.
This device is specified as a three-pole breaker, making it suitable for three-phase PV DC protection schemes commonly found in PV array combiner boxes and DC distribution panels. Its MDL frame and 1000 Vdc rating enable reliable protection across all three conductors, ensuring balanced protection and simplified wiring in three-phase PV installations.
The MDLPV3600W carries UL Listed certification, a cornerstone for electrical safety compliance in North America. This certification supports regulatory acceptance for PV protection devices in utility and commercial solar installations. When designing for broader markets, verify regional requirements for additional marks such as CE or IP ratings, but for US-based PV systems, UL Listed provides strong alignment with industry standards.
Maintenance is typically low due to solid-state trip mechanisms and robust construction. The MDLPV3600W’s fixed thermal/magnetic trips reduce nuisance tripping and help maintain system uptime. ROI benefits stem from reliable PV protection, reduced repair costs after faults, and faster installation with the MDL frame’s compatibility, which lowers labor costs during retrofits and new-build PV projects.
