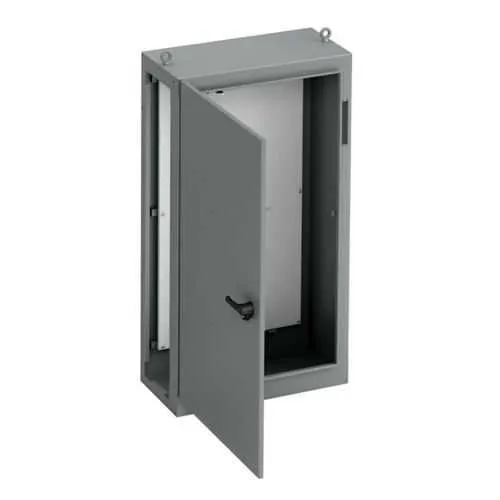

Eaton MFD847818-12FS Ground Mounted Enclosure - NEMA 12
Part Number: MFD847818-12FS
Quick Summary
The Eaton MFD847818-12FS ground mounted disconnect enclosure protects critical control circuits in industrial facilities. For engineers and maintenance teams, space constraints, tampering risks, and weather exposure are common challenges—this enclosure addresses them with a robust carbon steel shell and durable gasket materials. Certified to UL 508A, CSA C22.2, and NEMA standards, it offers reliable protection in harsh environments while supporting straightforward service with hinged doors and a large double-door opening. By combining a high-strength finish (ANSI 61 gray) with a ground-mount design, it delivers long-term value, simpler installation, and scalable protection for power distribution and control panels.
Product Information
Extended Description
MFD847818-12FS Eaton: Eaton B-Line series ground mounted disconnect enclosure, 84" height, 18" length, 78" width, NEMA 12, Hinged cover, MFD12FS enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
MFD847818-12FS
UPC
782051482706
Product Length/Depth
18 in
Product Height
84 in
Product Width
78 in
Product Weight
860.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
MFD12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Large double-door design with a hinged cover enables quick, unobstructed access to internal components, reducing maintenance time and lowering the risk of mistakes during servicing. The rugged 12-gauge carbon steel body with an ANSI 61 gray painted finish provides long-lasting protection against impact, dust, and grime, extending service life in demanding environments. With a NEMA 12 rating and oil-resistant gasket, the enclosure mitigates moisture and light liquid ingress, boosting reliability for critical circuits and minimizing field failures. Integrated security features include a defeater padlock provision and a 3-point latching handle, helping meet access-control requirements without sacrificing ease of maintenance. Ground mounting, a large form factor, and compatibility with the Eaton B-Line series simplify installation on concrete pads and new-build panels, delivering predictable performance and ROI in harsh facilities.
Get a Quick Quote for a Eaton MFD847818-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MFD847818-12FS?
Enquire Now
FAQs
The enclosure is designed for ground mounting with a hinged cover and large double doors. This configuration enables rapid, unobstructed access to internal components for routine maintenance, testing, and wiring checks, reducing downtime and improving service accuracy in demanding industrial environments.
The enclosure measures 84 inches in height, 78 inches in width, and 18 inches in depth, with a weight of 860.1 pounds. It is constructed from 12-gauge carbon steel and finished in ANSI 61 gray to withstand tough industrial conditions.
Yes. The MFD847818-12FS carries UL 508A and CSA C22.2 certifications and adheres to NEMA 12 standards, ensuring compliance for electrical protection and control applications in industrial settings.
This model is ideal for power distribution and control panels in manufacturing, process industries, and other facilities requiring durable protection against dust, moisture, and environmental exposure, along with secure access for authorized personnel.
The enclosure includes a defeater padlock provision and a 3-point latching handle, providing robust tamper resistance while allowing legitimate access for maintenance and inspection.
