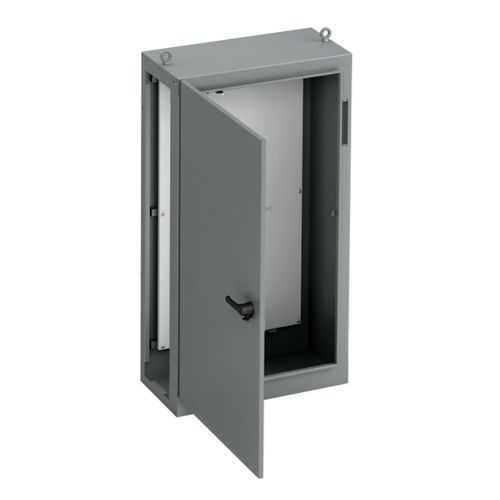

Eaton MFD847824-12FS Disconnect Enclosure - NEMA 12 UL 508A
Part Number: MFD847824-12FS
Quick Summary
The Eaton MFD847824-12FS disconnect enclosure protects electrical gear in industrial spaces, providing secure, ground-mount housing for control circuitry. This large double-door cabinet minimizes maintenance downtime by enabling quick access to internal components and simplifying panel wiring in crowded equipment areas. UL 508A, CSA C22.2, and NEMA 12 ratings back safety, electrical reliability, and environmental protection in dusty or oil-laden environments. Designed for durability, it supports rigorous industrial use while delivering long service life. Its ANSI 61 gray finish and carbon steel construction pair with a 24 in depth and 84 in height to reduce replacement costs and support compliant, scalable control-room layouts in manufacturing facilities.
Product Information
Extended Description
MFD847824-12FS Eaton: Eaton B-Line series ground mounted disconnect enclosure, 84" height, 24" length, 78" width, NEMA 12, Hinged cover, MFD12FS enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
MFD847824-12FS
UPC
782051482720
Product Length/Depth
24 in
Product Height
84 in
Product Width
78 in
Product Weight
907.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
MFD12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature: Large footprint and heavy-duty construction (84 in height, 78 in width, 24 in depth; 907.7 lb; 12-gauge carbon steel) → Business Impact: Provides robust physical protection for large control panels and disconnection devices, reducing the risk of equipment damage in demanding environments. Application: Ideal for factory floors and switchgear rooms requiring durable, long-life enclosures. Feature: Ground mounting with no mounting provisions inside the unit → Business Impact: Simplifies installation on a solid base while clarifying mounting requirements for integrators, reducing install time and alignment issues. Application: Suitable for permanent installations in production lines with limited wall space. Feature: Large double-door hinged cover with 3-point latching and defeater padlock provisions → Business Impact: Improves user access control, security, and safety during routine maintenance, lowering the chance of accidental openings. Application: Critical when masking sensitive control circuits in high-traffic areas. Feature: Oil-resistant gasket and ANSI 61 gray painted finish → Business Impact: Enhances environmental resistance to oils and dust, extending enclosure life and reducing replacement costs. Application: Dirty or oily shop floors and processing environments. Feature: NEMA 12, UL 508A, and CSA C22.2 compliant → Business Impact: Ensures regulatory compliance and reliable electrical protection, minimizing risk during audits. Application: Manufacturing facilities and process control rooms requiring formal certifications. Feature: Ground mounting compatibility with standard 24 in depth → Business Impact: Aligns with common facility footprints and simplifies integration with existing equipment racks. Application: Industrial plants seeking scalable, modular protection for control cabinets.
Get a Quick Quote for a Eaton MFD847824-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MFD847824-12FS?
Enquire Now
FAQs
The MFD847824-12FS is designed for ground mounting and does not include internal mounting provisions for equipment within the enclosure. Install on a solid, level concrete base with appropriate anchoring to support the 907.7 lb weight. This approach simplifies integration with existing floor-mounted systems while ensuring stability in demanding environments.
This model carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating, indicating suitable protection against dust, non-dust ingress, and light oil exposure. These certifications support regulatory compliance in industrial facilities and provide assurance for safe operation with disconnection devices and control panels.
Best suited for manufacturing lines, process-control rooms, and switchgear spaces requiring robust, secure protection for control circuits and disconnect devices. Its large double-door design, secure latching, and oil-resistant gasket make it reliable in dusty or oil-laden environments while supporting routine maintenance and quick component access.
Constructed from 12-gauge carbon steel with a painted ANSI 61 gray finish and oil-resistant gasket, the enclosure provides strong mechanical protection and resistance to oils and dust. This combination extends service life in harsh industrial settings and helps maintain enclosure integrity over time.
The 3-point latching with a defeater padlock provision improves access control and reduces maintenance time, while the heavy-gauge steel and gasket design lower replacement and repair costs. Its compatibility with standard footprints and ground mounting simplifies upgrades and scalability, delivering reduced downtime and lower total cost of ownership over the system lifecycle.
