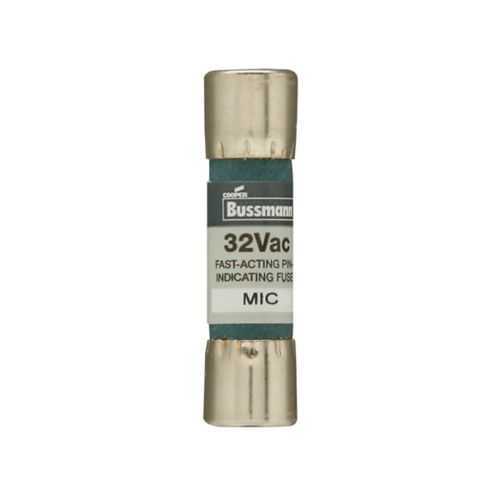

Eaton MIC-20 Fuse - 10 kAIC at 32V, Ferrule end
Part Number: MIC-20
Quick Summary
The Eaton MIC-20 fuse provides fast-acting protection for control circuits and PLC wiring in industrial panels. This compact midget fuse helps prevent nuisance trips while preserving essential electronics during surges. In practice, selecting a fuse with the right interrupt capacity and voltage rating is critical to avoid over-tripping or under-protection. While product data for this variant lists Not Applicable for warranty and compliances, MIC fuses are designed for low-voltage control environments and are compatible with ferrule-end terminations. When integrating into a panel, consider your plant’s safety standards and perform proper verification against CE/UL-style requirements. Using this fuse can improve system reliability and reduce downtime, while keeping initial costs manageable.
Product Information
Extended Description
MIC-20 Eaton: Eaton Bussmann series MIC fuse, Fast acting, Midget fuse, Control circuits, PLC circuits, Electronic circuits, 20 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 32 Vac, Nickel-plated bronze endcap, Fiber tube, Standard, 32 V
Product Name
Eaton Bussmann series MIC fuse
Catalog Number
MIC-20
UPC
051712726481
EAN
5027590450188
Product Length/Depth
0.47 in
Product Height
1.813 in
Product Width
0.47 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
20 A
Interrupt rating
10 kAIC at 32 Vac
Voltage rating
32 V
Material
Nickel-plated bronze endcap Fiber tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - MIC-20
Feature → Business Impact → Application: The MIC-20 delivers fast-acting protection with a 20 A rating and a 10 kAIC interrupt capacity at 32 V, ensuring rapid fault interruption for control circuits and PLC wiring, which reduces fault energy and downtime in critical automation panels. This translates to improved reliability in ladder logic, remote I/O, and electronic control loops, especially in environments with transient overcurrents; ideal for compact control cabinets where space is at a premium. The ferrule-end x ferrule-end connection and nickel-plated bronze endcaps deliver durable, vibration-tolerant terminations that simplify installation and maintenance in industrial systems, while supporting quick fuse replacement without specialized tools. The MIC-20’s non-indicating design minimizes visual distractions inside enclosures, enabling straightforward inspection and scan-based fault tracing. Its standard packaging and 0.47 in length/width, 1.813 in height form-factor fit common fuse holders and panel layouts, reducing redesign costs during retrofits. In practice, engineers can source a compatible, high-reliability component that integrates with control circuits, PLC inputs/outputs, and electronic circuits with predictable performance under repeated surge events.
