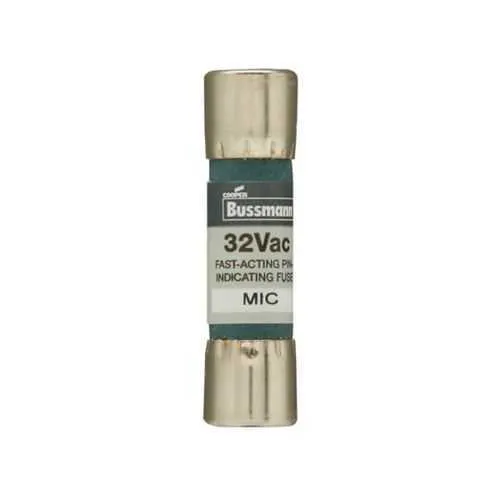

Eaton MIC-25 MIC fuse for control circuits - 10 kAIC at 32 V
Part Number: MIC-25
Quick Summary
MIC fuse solutions from Eaton protect control circuits and PLCs in industrial panels. In today’s fast-paced automation environments, a slow-trip fuse can trigger costly downtime and component damage; fast-acting protection minimizes that risk. While certification details are not listed in this data sheet, ensure your procurement checks CE marking, UL/ULC recognitions, and IP ratings to meet regional and enclosure requirements. This design supports PLC circuits and electronic protection, delivering reliable control-system protection while simplifying spares and maintenance.
Product Information
Extended Description
MIC-25 Eaton: Eaton Bussmann series MIC fuse, Fast acting, Midget fuse, Control circuits, PLC circuits, Electronic circuits, 25 A, Non-indicating, 10 kAIC at 32 Vac, Nickel-plated bronze endcap, Fiber tube, Standard, 32 V
Product Name
Eaton Bussmann series MIC fuse
Catalog Number
MIC-25
UPC
051712726498
Product Length/Depth
1.813 in
Product Height
0.47 in
Product Width
0.47 in
Product Weight
1.5 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
25 A
Interrupt rating
10 kAIC at 32 Vac
Voltage rating
32 V
Material
Fiber tube Nickel-plated bronze endcap
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Electrically isolated end cap
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - MIC-25
Feature: 25 A amperage rating with a 10 kAIC interrupt rating at 32 V. Business Impact: Provides robust short-circuit protection for control electronics, reducing the likelihood of cascading failures and downtime in machine controls. Application: Ideal for PLC power rails and control circuits in industrial equipment. The result is predictable protection that keeps production lines running and maintenance costs down. Feature: Non-indicating fuse. Business Impact: Reduces panel clutter and false indicators, while facilitating clean panel design and remote-status monitoring where indicators aren’t necessary. Application: Suitable for control cabinets where visual status isn’t required. Feature: Electrically isolated end cap. Business Impact: Minimizes cross-talk and fault propagation in noisy industrial environments, enhancing reliability. Application: Harsh factory floors with EMI/industrial noise. Feature: Fiber tube with nickel-plated bronze endcaps. Business Impact: Delivers durability and vibration resistance for rugged equipment, lowering replacement cycles. Application: Machinery prone to vibration and frequent start-stop cycles. Feature: Standard packaging and compact footprint (1.813 in × 0.47 in). Business Impact: Simplifies installation and stocking, enabling quick replacement and consistent fit in standard fuse holders. Application: Panel design and spare-part planning in automation systems.
Get a Quick Quote for a Eaton MIC-25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MIC-25?
Enquire Now
FAQs
The MIC-25 is a fast-acting 25 A fuse designed to protect low-voltage control circuits and PLC inputs in industrial panels. It helps limit fault currents to protect relays, PLC modules, and other sensitive electronics, reducing downtime and potential material damage during short circuits.
With a 25 A rating and 10 kAIC interrupt capability at 32 V, the MIC-25 reliably clears faults in control-logic circuits without nuisance trips, ensuring PLCs and electronic control modules are safeguarded from high-energy faults while keeping normal operation stable and predictable.
Yes. The MIC-25’s standard packaging and compact 1.813 in length by 0.47 in width footprint fit typical midget fuse holders used in control panels, simplifying installation, stocking, and replacement without modifying enclosure designs.
Verify CE marking for EU compliance, UL/CSA recognitions for North American markets, and any required IP ratings for enclosure exposure. The data provided does not specify certifications, so confirm these standards with your procurement and compliance teams.
The MIC-25’s fast-acting protection minimizes costly fault damage and reduces mean time to repair by preventing secondary failures. Its non-indicating design lowers panel clutter, while durable materials and isolated end caps improve long-term reliability in vibration-prone environments.
