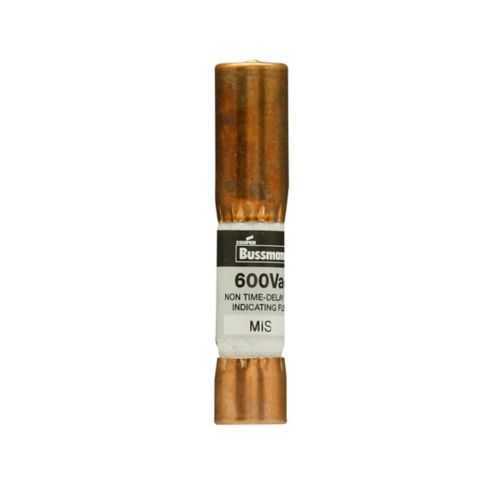

Eaton MIS-5 Fuse - CE Marked
Part Number: MIS-5
Quick Summary
The Eaton MIS-5 fuse provides protection for 480 V control circuits and PLC hardware in industrial panels. Engineers often wrestle with nuisance trips, space constraints, and wiring challenges that sap uptime. CE Marked for global safety compliance, MIS-5 delivers a 600 V rating with a 200 kAIC interrupt capability, ensuring reliable fault isolation in demanding environments. Its ferrule-end connections and compact 2 in length simplify installation and streamline panel layouts, reducing wiring time and cabinet clutter. By pairing trusted Eaton Bussmann protection with standard packaging, MIS-5 supports scalable machine deployments and predictable maintenance across manufacturing lines. Designers can leverage MIS-5 to achieve consistent short-circuit protection without sacrificing available panel space, improving overall line efficiency and uptime. This fuse configuration aligns with common control cabinet architectures, supporting straightforward sourcing and maintenance.
Product Information
Extended Description
MIS-5 Eaton: Eaton Bussmann series MIS fuse, Non time-delay fuse, 480 V Control circuits, PLC circuits, 5 A, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Standard, 600 V
Product Name
Eaton Bussmann series MIS fuse
Catalog Number
MIS-5
UPC
051712624046
Product Length/Depth
2 in
Product Height
0.406 in
Product Width
0.406 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - MIS-5
Feature: Amperage, voltage, and interrupt rating are matched to standard industrial control requirements. The MIS-5 is a 5 A, 600 V non time-delay fuse with a 200 kAIC interrupt rating at 600 Vac, delivering dependable fault isolation for PLC circuits and control panels. The result is fewer nuisance trips and improved line reliability, enabling predictable maintenance schedules and reduced downtime in manufacturing lines. Feature: Non-indicating fuse design keeps panel visuals clean and minimizes false indicators; when visibility is required, plan for external indicators or remote monitoring to satisfy safety and status-tracking needs. Feature: Ferrule-end x ferrule-end connections provide quick, secure terminations with common ferrule sizes, speeding installation and ensuring solid contact in dense control cabinets. Feature: Compact 2 in length and 0.406 in width/height with standard packaging supports tight panel layouts and straightforward replacement in crowded industrial environments. Feature: CE Marked compliance supports regulatory alignment across global operations, reducing compliance risk and accelerating audits while maintaining compatibility with Eaton Bussmann protection standards.
Get a Quick Quote for a Eaton MIS-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MIS-5?
Enquire Now
FAQs
MIS-5 uses ferrule-end connections designed for common ferrule sizes used in control panels, enabling quick, secure terminations. Its compact 2 in body length and standard ferrule-end termination simplify installation in tight enclosures while maintaining reliable contact and repeatable performance in PLC and 480 V control circuits.
MIS-5 is a 5 A, 600 V non time-delay fuse with an interrupt rating of 200 kAIC at 600 Vac. This combination provides robust short-circuit protection for PLC and control circuits in industrial environments, while supporting dependable fault isolation and reduced downtime in manufacturing cells.
MIS-5 is suited for 480 V control circuits and PLC wiring in industrial panels, machine control cabinets, and automation lines. Its compact form factor and high interrupt rating make it ideal for panels with limited space that still require precise, reliable protection for critical control circuits.
Yes, MIS-5 is CE Marked, reflecting compliance with European safety directives. This certification helps streamline audits and regulatory acceptance for global operations, while the device's 600 V rating and 200 kAIC capability meet common industrial protection requirements.
Plan for non-indicating status, meaning no built-in visual fault indication. If you require status visibility, consider external indicators or remote monitoring. Its ferrule-end connections, 2 in length, and standard packaging support straightforward wiring in crowded control panels, with a typical weight around 0.3 lb for easy handling during replacement and maintenance.
