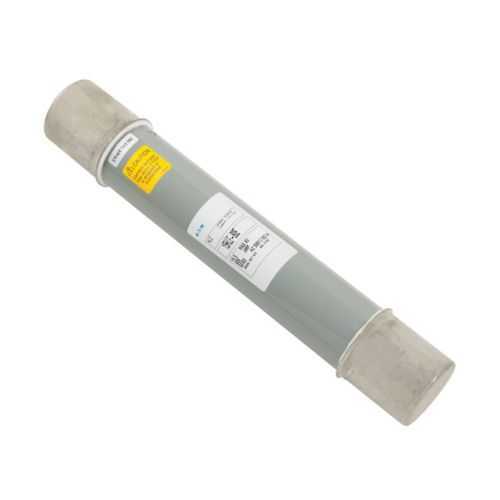

Eaton MV155F1DCX100E E-rated fuse - ANSI certification
Part Number: MV155F1DCX100E
Quick Summary
MV155F1DCX100E is an E-rated fuse engineered to protect medium-voltage power systems up to 15.5 kV. In real-world installations, selecting an undersized or inappropriate fuse drives nuisance trips, equipment damage, and unplanned downtime. This Eaton Bussmann series device carries ANSI certification and Class E construction, with a rugged fiberglass tube and current-limiting design to withstand demanding environments. For reliability and operational efficiency, its non-indicating indicators and ferrule-end connections simplify stocking, replacement, and preventive maintenance, while providing predictable protection margins that support longer asset life and safer, compliant power distribution. The fuse aligns with standard MV protection schemes and leverages Eaton's specification sheets for fast engineering validation.
Product Information
Extended Description
MV155F1DCX100E Eaton: Eaton Bussmann series MV055 E-Rated medium voltage fuse, 15.5 kV, 100A, 50 kAIC, Non Indicating, Current limiting, Ferrule end X ferrule end, Class E, Fiberglass tube, 1 - MV155F1DCX100E
Product Name
Eaton Bussmann series MV155F E-rated fuse
Catalog Number
MV155F1DCX100E
UPC
051712269391
Product Length/Depth
0.75 in
Product Height
23 in
Product Width
0.75 in
Product Weight
12.15 lb
Warranty
Not Applicable
Compliances
Contact factory
Certifications
ANSI
Amperage Rating
100 A
Interrupt rating
50 kAIC
Voltage rating
15.5 kV
Material
Fiberglass tube
Packaging type
Standard
Barrels
1
Class
Class E
Connection
Ferrule end x ferrule end
Element
Silver ribbon
Fuse indicator
Non Indicating
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series Fuseology
Eaton Specification Sheet - MV155F1DCX100E
Feature: High voltage and current ratings (15.5 kV, 100 A, 50 kAIC) → Business Impact: Strong fault-ride-through protection and rapid fault energy limitation reduce damage to transformers, switchgear, and feeders. Application: Suitable for utility-grade MV feeders and industrial power distribution networks. Long-tail keywords: medium-voltage protection, high interrupt rating, fault energy reduction. Feature: Current-limiting and non-indicating design → Business Impact: Minimizes maintenance cycles and simplifies field servicing without costly indicator components. Application: Installation in unmonitored panels where quick replacement is essential. Long-tail keywords: current-limiting fuse, non-indicating fuse, maintenance efficiency. Feature: Ferrule end x ferrule end, fiberglass tube construction → Business Impact: Provides robust mechanical integrity and reliable connections in harsh environments, reducing replacement frequency. Application: Replacements in rugged switchgear and cabinet assemblies. Long-tail keywords: ferrule end fuses, fiberglass tubular fuse, rugged construction. Feature: ANSI certification and Class E classification → Business Impact: Supports compliance and traceability, easing procurement audits. Application: Industrial and utility protection programs requiring formal standards. Long-tail keywords: ANSI certified fuse, Class E protection, regulatory compliance. Feature: Documentation and compatibility → Business Impact: Access to Eaton datasheets and catalogs accelerates engineering validation and installation planning. Application: System design reviews, commissioning, and lifecycle management. Long-tail keywords: Eaton specification sheet, MV155F1DCX100E datasheet, compatibility with Bussmann MV fuses.
Get a Quick Quote for a Eaton MV155F1DCX100E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MV155F1DCX100E?
Enquire Now
FAQs
MV155F1DCX100E uses ferrule end x ferrule end connections and a single 1-barrel design, enabling straightforward mounting into common switchgear and bus assemblies. Its compact 0.75 in diameter with a tall housing supports convenient replacement in crowded enclosures, while the ferrule ends ensure reliable, vibration-resistant contact during fault events.
The fuse is rated at 15.5 kV, 100 A, with a 50 kAIC interrupt rating. This means it can safely interrupt up to 50 kiloamps of fault current at 15.5 kilovolts, protecting downstream equipment by quickly isolating faults and limiting energy transfer to sensitive components.
Yes. With current-limiting action, a high interrupt rating, and a robust Class E construction, the MV155F1DCX100E is appropriate for protecting transformers and feeders in medium-voltage distribution, helping to minimize arc energy, reduce collateral damage, and support reliable system operation.
The MV155F1DCX100E carries ANSI certification and is manufactured to Class E specifications. While Compliances list requires factory contact, these certifications provide formal reliability and performance metrics that support procurement audits and regulatory alignment in industrial settings.
You can access the Eaton specification sheet MV155F1DCX100E and the Bussmann series catalogs listed in the product downloads. These documents provide comprehensive ratings, installation guidelines, and compatibility information to accelerate engineering validation and procurement.
