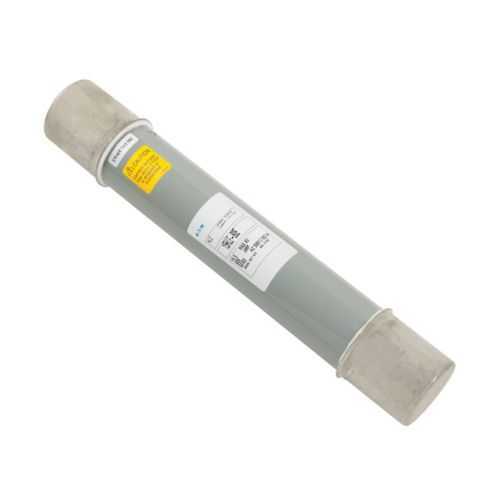

Eaton MV155F2DBX150E E-rated medium-voltage fuse - 50 kAIC
Part Number: MV155F2DBX150E
Quick Summary
MV155F2DBX150E is an E-rated medium-voltage fuse that protects industrial power distribution. Engineers and procurement teams often face nuisance trips and downtime when selecting protection for motor drives and switchgear in demanding environments. This device carries ANSI certification and is designed to support compliance in critical systems; for CE, SIL, or IP-specific requirements, consult the factory. With a 150 A rating and 15.5 kV nominal voltage, it offers robust current limiting, reliable interruption at 50 kAIC, and durable construction using a fiberglass tube and silver ribbon element. In practical terms, it reduces maintenance costs while improving protection reliability across factory floors.
Product Information
Extended Description
MV155F2DBX150E Eaton: Eaton Bussmann series MV055 E-Rated medium voltage fuse, Current limiting, 150A, 50 kAIC Symmetrical Maximum interrupt rating, Silver ribbon element, Fiberglass tube, 2 barrels, 0.75 in diameter, 18.7 in length
Product Name
Eaton Bussmann series MV155F E-rated fuse
Catalog Number
MV155F2DBX150E
UPC
051712269100
Product Length/Depth
0.75 in
Product Height
23 in
Product Width
0.75 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
Contact factory
Certifications
ANSI
Amperage Rating
150 A
Interrupt rating
50 kAIC
Voltage rating
15.5 kV
Material
Fiberglass tube
Packaging type
Standard
Barrels
2
Connection
Ferrule end x ferrule end
Element
Silver ribbon
Fuse indicator
Non Indicating
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series Fuseology
Eaton Specification Sheet - MV155F2DBX150E
Feature: 150 A amperage rating paired with a 15.5 kV voltage rating and 50 kAIC interrupt capability. Business Impact: Fast fault clearing minimizes equipment damage and downtime, driving lower maintenance costs and longer asset life. Application: Feeders and feeders in MV switchgear and motor control centers benefit from reliable short-circuit protection in manufacturing environments. Feature: Current-limiting design reduces arc energy and thermal stress on protected circuits. Business Impact: Enhanced safety margins and reduced insulating requirements for downstream equipment. Application: Power distribution panels and protection schemes in heavy industry. Feature: Fiberglass tube construction with a silver ribbon element and two ferrule-end barrels. Business Impact: Robust insulation, stable performance under vibration, and straightforward field installation. Application: OEM assemblies and service retrofits in rugged industrial settings. Feature: Non-indicating fuse with standard ferrule connections. Business Impact: Simplified stock management and quick diagnostics in routine maintenance. Application: OEM protective schemes and service teams prioritizing compatibility and ease of replacement. Feature: ANSI certification and Bussmann series compatibility. Business Impact: Assurance of industry-standard compliance and predictable interchangeability across Eaton protection products. Application: Global manufacturing facilities requiring consistent protection across multiple lines.
Get a Quick Quote for a Eaton MV155F2DBX150E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MV155F2DBX150E?
Enquire Now
FAQs
Yes. MV155F2DBX150E uses ferrule-end x ferrule-end connections and a two-barrel design that aligns with Eaton Bussmann MV protection assemblies. Its standard form factor and current-rating align with common protection strategies in switchgear, motor control centers, and feeders, making it suitable for retrofit or new installations without custom hardware.
The fuse provides a 150 A amperage rating, a 15.5 kV voltage rating, and a 50 kAIC interrupt rating. It features current-limiting operation and a fiberglass tube with a silver ribbon element, two barrels, 0.75 in diameter, and a lengthy form factor suitable for medium-voltage protection schemes.
It is well suited for protection in switchgear, motor control centers, and feeders within manufacturing plants, chemical processing, and other heavy industrial environments. The combination of high interrupt rating and current-limiting characteristics helps protect downstream equipment, reduce arc energy, and improve system uptime in critical process lines.
The MV155F2DBX150E carries ANSI certification. Compliances may require factory confirmation for CE, SIL, or IP-specific requirements; users should contact Eaton for confirmation and any regional product variants or additional certifications needed for their installation and regulatory context.
By delivering fast fault clearing and current limitation, the fuse minimizes arc energy and protects upstream equipment, reducing maintenance interruptions and damage-related costs. Its durable fiberglass construction and standard ferrule-end connections streamline stocking and replacements, supporting predictable lifecycle costs and improved return on investment in MV protection schemes.
