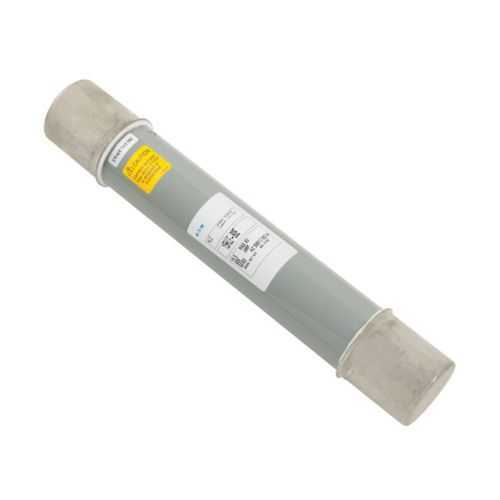

Eaton MV155F2DCX175E E-rated fuse - 50 kAIC, 15.5 kV
Part Number: MV155F2DCX175E
Quick Summary
The Eaton MV155F2DCX175E E-rated fuse protects medium-voltage circuits used in electrical distribution and motor-control panels. Sizing the right interrupt rating and avoiding nuisance trips are common pain points in MV protection; this device delivers 175 A with a 50 kAIC rating to improve coordination and uptime. It carries ANSI certification and Class E performance, ensuring reliable fault-current interruption. The two-barrel ferrule ends and silver ribbon element support robust arc quenching and straightforward field installation, while fiberglass construction provides durability. For facilities prioritizing safety, compliance, and rapid replacement, this fuse offers a strong combination of protection and operational value.
Product Information
Extended Description
MV155F2DCX175E Eaton: Eaton Bussmann series MV055 E-Rated medium voltage fuse, Current limiting, 175A, 50 kAIC Symmetrical Maximum interrupt rating, E class, Silver ribbon element, Fiberglass tube, 2 barrels, 0.75 in diameter, 21.7 in length
Product Name
Eaton Bussmann series MV155F E-rated fuse
Catalog Number
MV155F2DCX175E
UPC
051712552882
Product Length/Depth
0.75 in
Product Height
23 in
Product Width
0.75 in
Product Weight
21.6 lb
Warranty
Not Applicable
Compliances
Contact factory
Certifications
ANSI
Amperage Rating
175 A
Interrupt rating
50 kAIC
Voltage rating
15.5 kV
Material
Fiberglass tube
Packaging type
Standard
Barrels
2
Class
Class E
Connection
Ferrule end x ferrule end
Element
Silver ribbon
Fuse indicator
Non Indicating
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series 2018 full line catalog no. 1007, section 7 - medium voltage fuses
Bussmann series Fuseology
Eaton Specification Sheet - MV155F2DCX175E
Feature: 175 A amperage rating with a 50 kAIC symmetrical interrupt rating at 15.5 kV. Business Impact: Enables precise protection coordination, reducing upstream nuisance trips and limiting fault energy to protect transformers and cables. Application: Well suited for MV feeders in switchgear, motor-control centers, and industrial power distribution. Feature: E-class design and ANSI certification. Business Impact: Ensures compliance with industry standards and predictable coordination with upstream protection. Application: Matches MV protection schemes in plants requiring class E, ANSI-rated fuses. Feature: Silver ribbon element in a fiberglass tube with two barrels and ferrule-end connections. Business Impact: Improves arc-quenching performance and durability in harsh environments, extending replacement intervals. Application: Field-friendly installation in rugged industrial facilities and standard Bussmann MV assemblies. Feature: Non-indicating fuse with standard packaging. Business Impact: Reduces upfront cost and simplifies stocking for common MV protection tasks. Application: Useful where indication is not required for maintenance workflows. Feature: Ferrule end x ferrule end connection. Business Impact: Enables straightforward replacement in existing Bussmann MV fuse footprints. Application: Plug-and-play in compatible switchgear and distribution panels.
Get a Quick Quote for a Eaton MV155F2DCX175E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton MV155F2DCX175E?
Enquire Now
FAQs
MV155F2DCX175E uses ferrule end x ferrule end connections and two barrels; it fits standard Bussmann MV fuse footprints in switchgear, motor-control centers, and distribution panels. The 0.75 in diameter and 23 in height define its physical envelope. Ensure the upstream protection scheme coordinates with a 50 kAIC interrupt rating and the 15.5 kV voltage rating.
This fuse provides a 175 A amperage rating, a 50 kAIC symmetrical interrupt rating, and a 15.5 kV voltage rating. It is a current-limiting, E-class device with a silver ribbon element inside a fiberglass tube. These ratings support precise protection coordination and fault-energy control in medium-voltage feeders and switchgear.
Ideal for medium-voltage feeders in switchgear, motor-control centers, and industrial power distribution networks. It helps protect feeders from high-energy faults while maintaining system uptime. The ANSI Class E rating supports standardized protection coordination, making it suitable for facilities that require reliable MV protection with documented performance.
MV155F2DCX175E carries ANSI certification and an ANSI-classified E rating, indicating compliance with recognized industry standards for medium-voltage fuses. The product notes indicate ‘Compliances: Contact factory’ for certain regulatory or regional requirements, so verify with Eaton for any additional approvals needed in your jurisdiction or application.
The fuse combines robust arc-quenching performance with a durable fiberglass body and silver ribbon element, reducing replacement frequency and maintenance downtime. The two-barrel ferrule-end design simplifies field swaps and stocking, improving maintenance efficiency. While upfront cost may be higher than basic fuses, higher uptime and improved protection coordination yield a favorable total cost of ownership over time.
